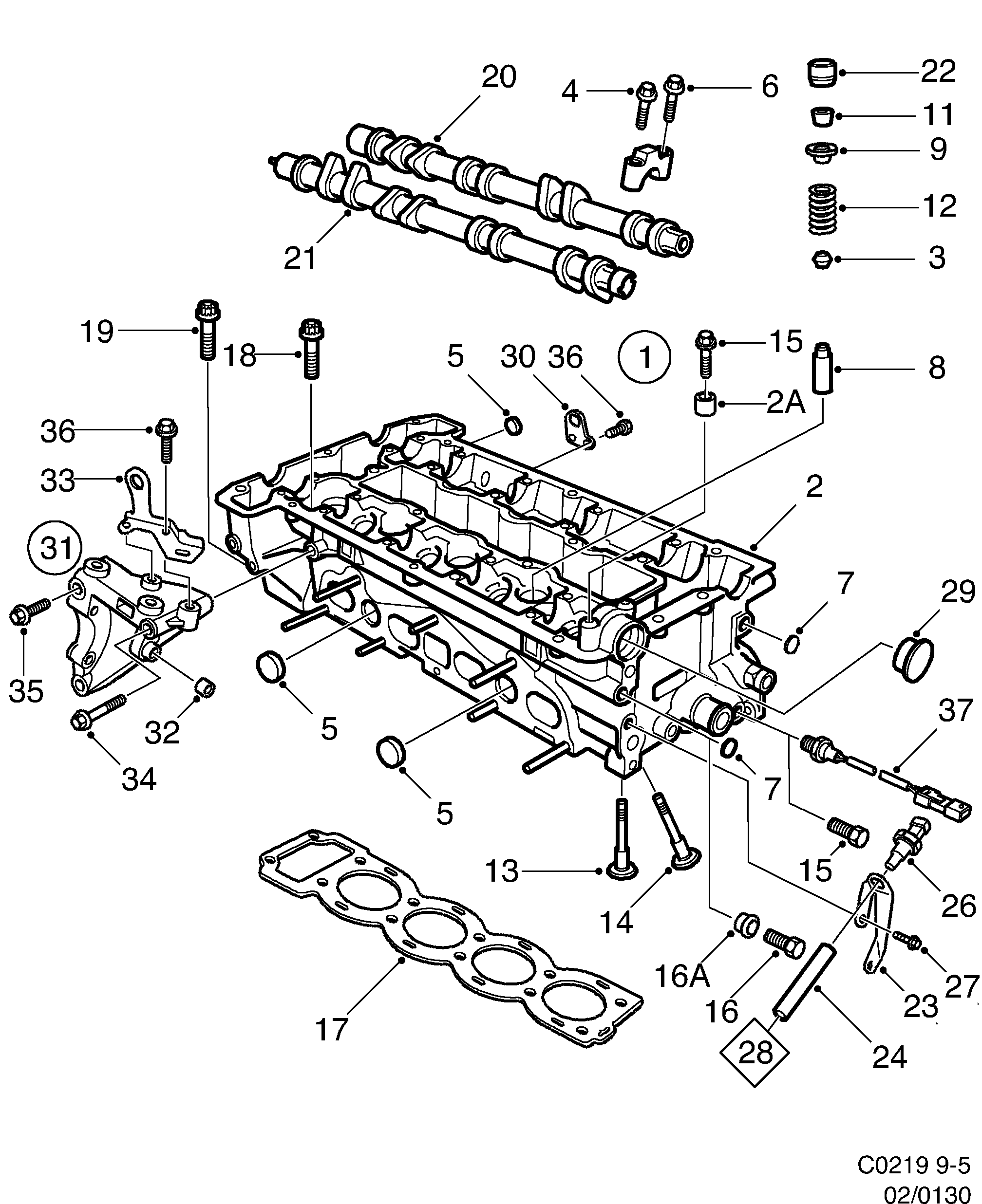

Group 2 Engine, section 130
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cylinder head | 93169237 (replaces 55557210) |
| 1 | Cylinder head | 55561380 |
| 1 | Cylinder head | 93169239 (replaces 9198243) |
| 1 | Cylinder head | 93169239 (replaces 55561382) |
| 1 | Cylinder head | 93169241 (replaces 55560856) |
| 1 | Cylinder head | 93169241 (replaces 55562775) |
| 1 | Cylinder head | 55564363 |
| 1 | Cylinder head | 93169241 (replaces 55564364) |
| 2 | Cylinder head | 9186933 |
| 2A | Guide sleeve | 7504566 |
| 3 | Seal | 5955570 (replaces 9170861) |
| 3 | Seal | 5955570 |
| 4 | Screw | 55559477 |
| 5 | Sealing washer | 7588320 |
| 6 | Screw | 55559566 |
| 7 | Plug | 4940466 |
| 7 | Plug | 4940466 (replaces 8123143) |
| 8 | Valve guide | 9399957 |
| 9 | Washer | 9170796 |
| 11 | Valve cone | 55557221 (replaces 30566199) |
| 11 | Valve cone | 55557221 |
| 12 | Spring | 55557218 (replaces 9181769) |
| 12 | Valve spring | 55557218 |
| 13 | Exhaust valve | 9399965 |
| 13 | Exhaust valve | 9179219 |
| 13 | Exhaust valve | 55557222 |
| 14 | Inlet valve | 55560663 (replaces 9185851) |
| 14 | Inlet valve | 55560663 |
| 15 | Screw | 92151833 |
| 16 | Plug | 4685780 |
| 16A | Seal | 8326704 |
| 16A | Gasket | 5959242 |
| 17 | Gasket | 5960083 (replaces 9171935) |
| 17 | Gasket | 5960083 (replaces 5955174) |
| 17 | Gasket | 5960083 |
| 18 | Screw | 5955794 |
| 19 | Hexagon screw | 11900367 (replaces 7978216) |
| 20 | Camshaft | 55557273 (replaces 9170887) |
| 20 | Camshaft | 55557273 |
| 21 | Camshaft | 5955562 (replaces 9170895) |
| 21 | Camshaft | 9549924 (replaces 9188855) |
| 21 | Camshaft | 9549924 |
| 21 | Camshaft | 5955562 |
| 22 | Valve lifter | 55557388 (replaces 9186073) |
| 22 | Tappet | 55557388 |
| 23 | Bracket | 9186644 |
| 23 | Brace | 55558435 (replaces 9182502) |
| 23 | Brace | 55558931 (replaces 30586677) |
| 23 | Bracket | 55558931 |
| 24 | Hose | 9187758 |
| 24 | Hose | 9188350 |
| 26 | Charge Air Absolute Pressure Sensor | 9171497 |
| 27 | Screw | 92150012 (replaces 7978182) |
| 29 | Sealing plug | 9135211 |
| 30 | Lifting eye | 32000435 |
| 30 | Shackle | 55557340 |
| 31 | Bracket | 55564668 (replaces 4754263) |
| 31 | Bracket | 55564668 (replaces 55564100) |
| 31 | Bracket | 55564668 |
| 32 | Bushing | 7593072 |
| 33 | Lifting eye | 55557339 (replaces 9177171) |
| 33 | Shackle | 55557339 |
| 34 | Hexagon screw | 7982960 |
| 35 | Screw | 92150019 |
| 36 | Screw | 55566034 (replaces 92150013) |
| 37 | Temperature sensor | 15393755 (replaces 9177213) |
| 37 | Temperature sensor | 15393755 |
