Saab 9-5 (9600) 2002-2005 Motor

Group 2 Engine, section 1280

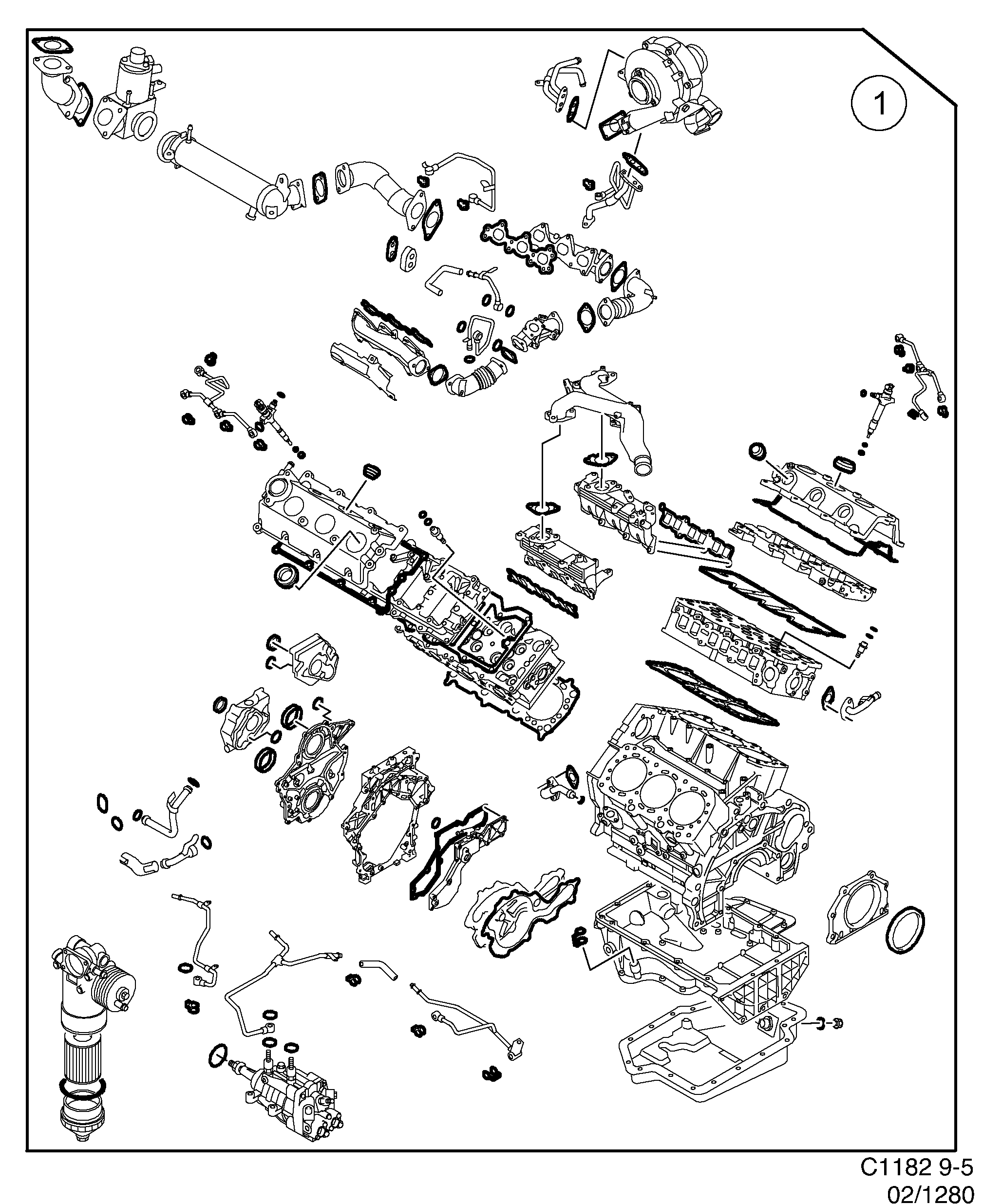

Saab 9-5 (9600) Motor diagram

Pos	Article	Part No.
1	Gasket kit	5956115
	Seal	5950415
	Seal	5950597
	Gasket	5950605
	Gasket	5950662
	Gasket	5950696
	Gasket	97214907
	Gasket	94000500 (replaces 5951389)
	Seal	97240449
	Sealing ring	94000393 (replaces 5951629)
	Gasket	5951660
	Seal	32000279 (replaces 5951702)
	Gasket	32000281 (replaces 5951728)
	Gasket	32000283 (replaces 5951868)
	Seal	97352985 (replaces 5951892)
	Gasket	94000605 (replaces 5952171)
	Gasket	5952221
	Gasket	5952411
	Gasket	97380536
	Gasket	97250664 (replaces 5952510)
	Seal	97250664
	Gasket	97127702
	Seal	97127704
	Seal	5952940
	Seal	5953047
	O-ring	5953070
	Gasket	97229318
	Seal	97240975 (replaces 5953443)
	Seal	5953518
	Sealing plug	5954391
	Sealing ring	94007637 (replaces 5954417)
	Seal	5954425
	Seal	5954664
	Seal	5954672
	Gasket	5954722
	O-ring	5956065
	Gasket	5956230
	O-ring	5956537
1	Gasket kit	93186950 (replaces 5956123)
	Gasket	5950670
	Gasket	5950704
1	Gasket kit	5956131
	Gasket	5950688
	Gasket	5950712
