Saab 9-5 (9600) 2006-2010 Turbocharger

Group 2 Engine, section 1230

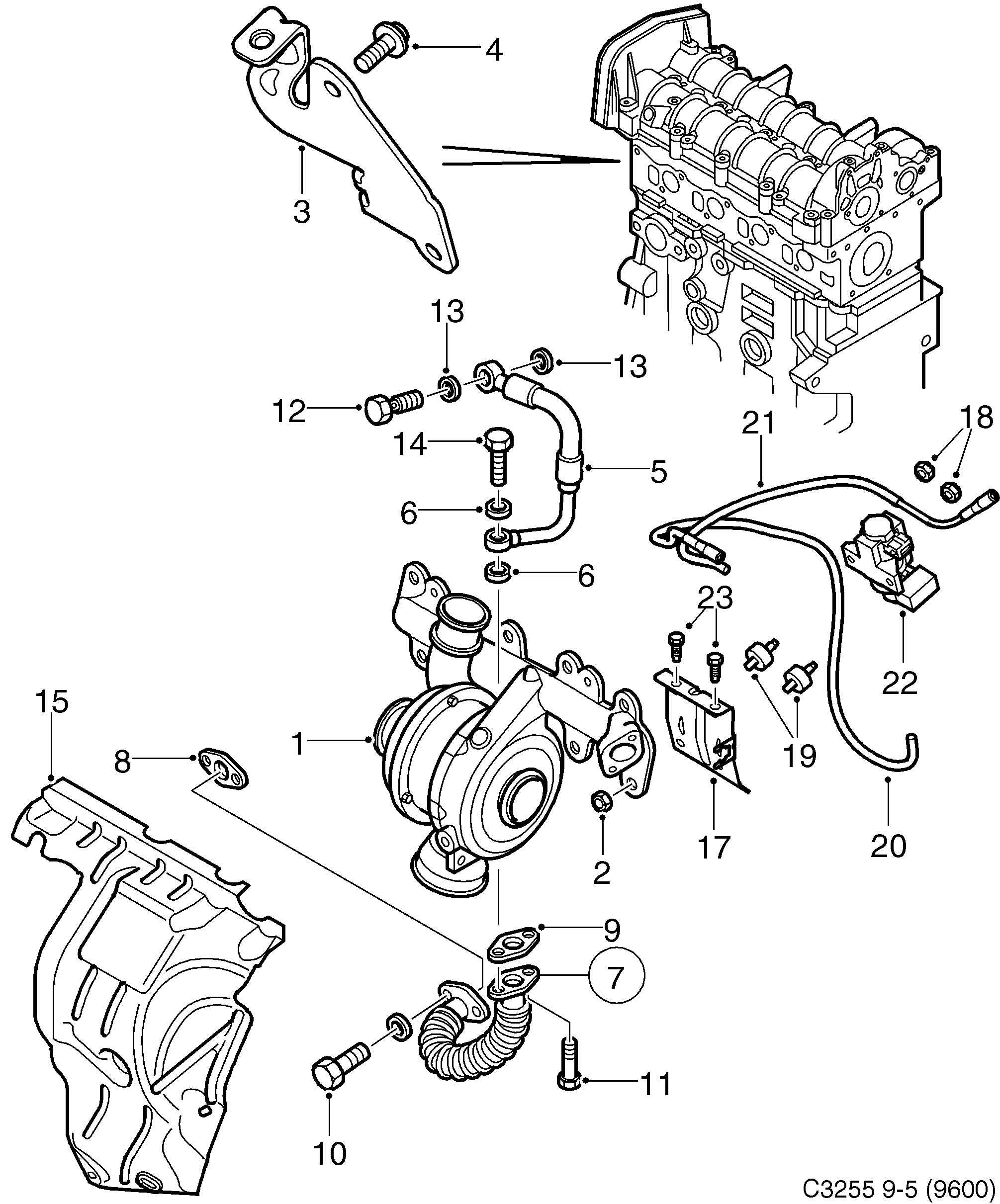

Saab 9-5 (9600) Turbocharger diagram

Pos	Article	Part No.
1	Exhaust manifold	55565542 (replaces 55203091)
1	Exhaust manifold	55565542 (replaces 55205481)
1	Exhaust manifold	55565542
2	Flange nut	93191408
3	Bracket	55197436
4	Screw	93183675
5	Tube	93179213
6	O-ring	12855333
7	Tube	93179215
8	Gasket	93179216
9	Gasket	55196740
10	Screw	93179217
11	Screw	93178505
12	Screw	93179303
13	Gasket	93179304
14	Screw	93183682
15	Heat shield	55204109
17	Bracket	55556990
18	Nut	11900451
19	Rubber spacer	9281374
20	Hose assembly	55559694
21	Hose	55556985
22	Vacuum valve	55563532 (replaces 55354529)
22	Vacuum valve	55563532
	Clamp	11900515 (replaces 92150209)
23	Screw	92152294
