Saab 9-5 (9600) 2002-2005 Turbocharger

Group 2 Engine, section 1220

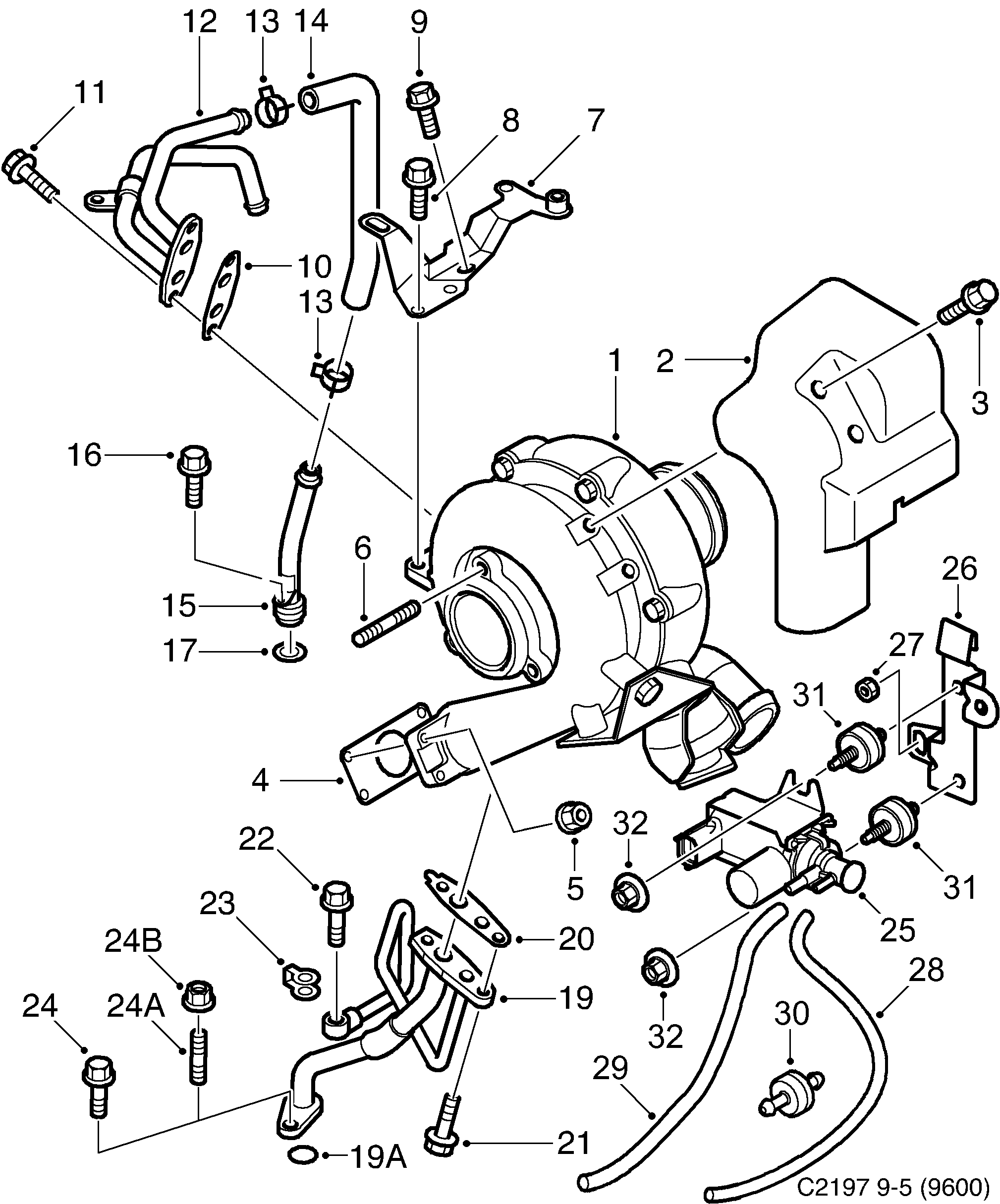

Saab 9-5 (9600) Turbocharger diagram

Pos	Article	Part No.
1	Turbocharger	5342969
2	Heat shield	5340872
3	Screw	7974082
4	Gasket	97229318
5	Nut	5953153
6	Screw	5953146
7	Brace	5953161
8	Screw	5952908
9	Screw	5951215
10	Seal	97352985 (replaces 5951892)
10	Seal	97352985
11	Screw	5951827
12	Hose	32000285 (replaces 5951900)
13	Clip	5951934
14	Hose	5951959
15	Hose	5951942
16	Screw	32000275 (replaces 5951306)
17	O-ring	94011697 (replaces 5956867)
17	O-ring	94011697
19	Tube	5951454
19A	Seal	94011695
20	Seal	97240449 (replaces 5951488)
20	Seal	97240449
21	Screw	5951496
22	Banjo screw	5951462
23	Seal	97240975 (replaces 5953443)
23	Gasket	97365390
24	Screw	5951504
24A	Stud	94004045 (replaces 5952049)
24B	Nut	5952460
25	Vacuum valve	5340161
26	Bracket	5340153
27	Plastic nut	92152035 (replaces 4087128)
28	Vaccum hose	5340955
29	Vaccum hose	5341169
30	Valve	5341110
31	Rubber spacer	9281374 (replaces 4235768)
32	Hexagon nut	11089471 (replaces 4345138)
