Saab 9-5 (9600) 2002-2005 Turbocharger

Group 2 Engine, section 1215

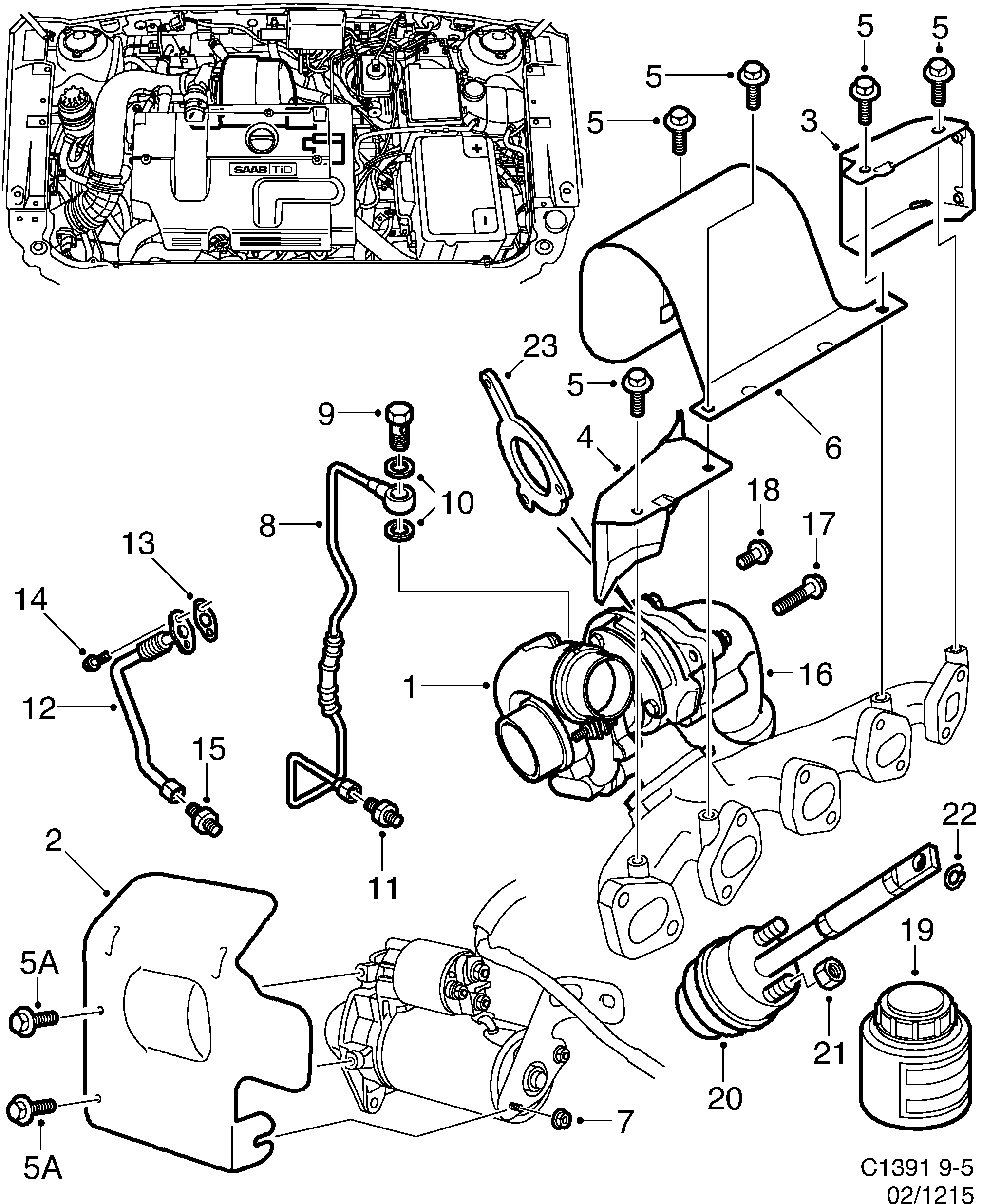

Saab 9-5 (9600) Turbocharger diagram

Pos	Article	Part No.
1	Turbocharger	24445062 (replaces 5342183)
2	Heat shield	90530232 (replaces 4679247)
2	Heat shield	5342829
3	Heat shield	24444259 (replaces 5340500)
4	Heat shield	24422981 (replaces 5194691)
5	Screw	4348603
5A	Screw	11900354 (replaces 7978109)
6	Heat shield	55352686 (replaces 5194683)
6	Heat shield	55352686 (replaces 5343298)
7	Nut	11900451 (replaces 7977929)
8	Tube	9202544 (replaces 9544131)
9	Banjo screw	11092351 (replaces 9544149)
10	Seal	11056391 (replaces 9544156)
11	Nipple	24469868 (replaces 9544115)
11	Nipple	24469868 (replaces 5343249)
12	Tube	90500930 (replaces 9543950)
13	Gasket	90467805 (replaces 9193541)
14	Screw	11093963 (replaces 9543968)
15	Nipple	90502912 (replaces 9544123)
16	Elbow pipe	9202449 (replaces 9544164)
17	Screw	11096001 (replaces 9543976)
18	Screw	11094892 (replaces 9544172)
23	Gasket	9226145 (replaces 9544180)
