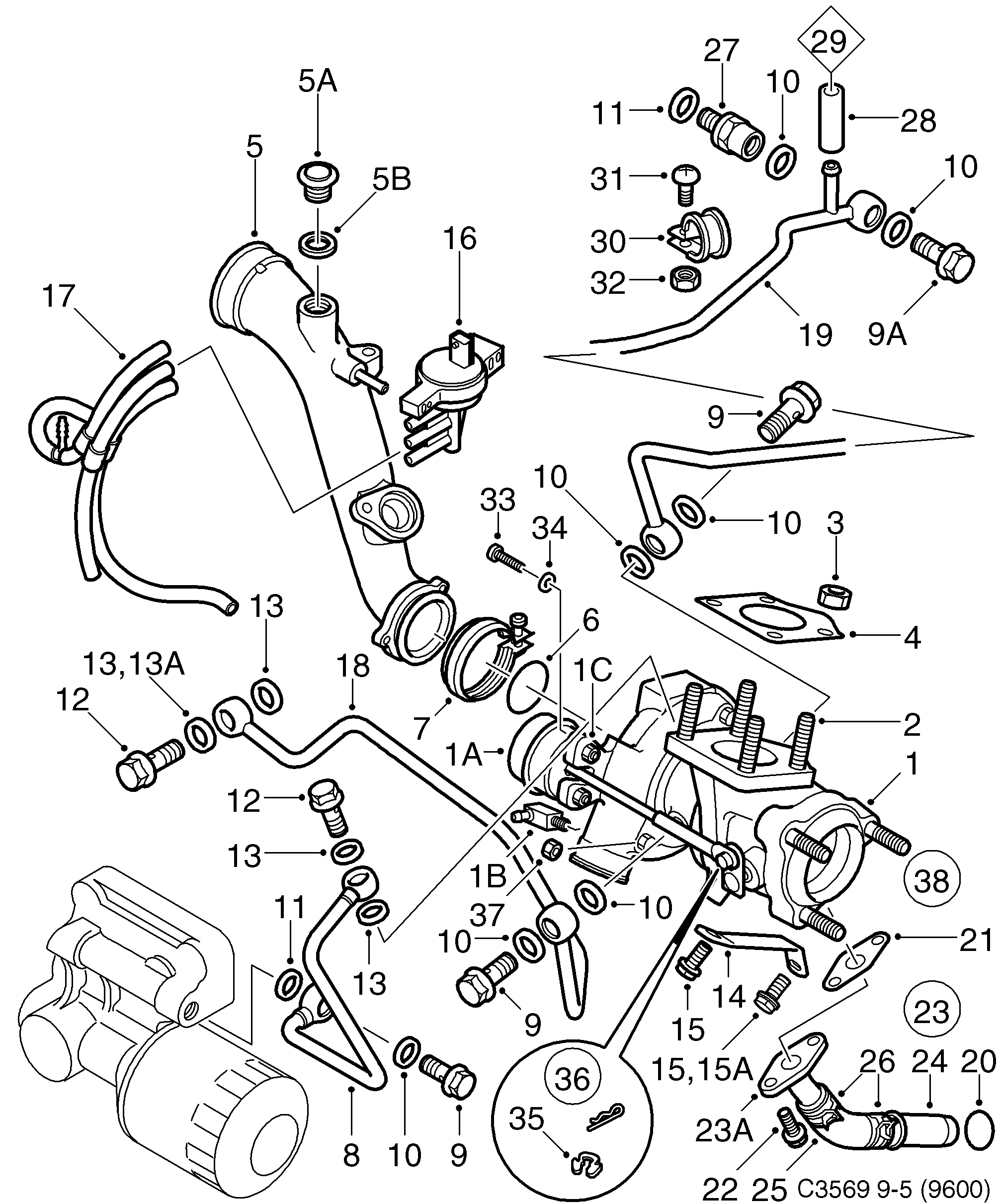

Group 2 Engine, section 1210
| Pos | Article | Part No. |
|---|---|---|
| 1 | Turbocharger | 55560913 (replaces 9172123) |
| 1 | Turbocharger | 55560913 (replaces 9198631) |
| 1 | Turbocharger | 55560913 (replaces 5955703) |
| 1 | Turbocharger | 55560913 |
| 1 | Turbocharger | 55559825 (replaces 9172180) |
| 1 | Turbocharger | 55559825 |
| 1 | Turbocharger | 55564966 (replaces 55560601) |
| 1 | Turbocharger | 55561884 |
| 1 | Turbocharger | 55564966 |
| 1A | Wastegate | 30583267 (replaces 9199811) |
| 1A | Pressure regulator | 55560914 |
| 1A | Wastegate | 55560085 (replaces 9483983) |
| 1A | Pressure regulator | 55560085 |
| 1B | Nipple | 9169517 |
| 1C | Nut | 9169426 |
| 2 | Screw | 90490326 (replaces 9357138) |
| 2 | Stud | 90490326 |
| 3 | Nut | 30520445 |
| 4 | Gasket | 9113937 |
| 5 | Tube | 9173378 |
| 5 | Tube | 30584297 (replaces 9192568) |
| 5 | Pipe | 55559826 |
| 5 | Tube | 55559826 (replaces 5959218) |
| 5 | Duct | 55560602 |
| 5A | Nipple | 5959226 |
| 6 | O-ring | 90490362 |
| 7 | Clamp | 55559479 (replaces 9178666) |
| 7 | Clamp | 90490296 |
| 7 | Clamp | 55559479 |
| 8 | Tube | 55559432 (replaces 9172149) |
| 8 | Tube | 55559429 (replaces 9179458) |
| 8 | Pipe | 55559429 |
| 9 | Banjo screw | 90490325 (replaces 9143967) |
| 9 | Banjo screw | 90490324 |
| 9 | Banjo screw | 92150976 |
| 9 | Banjo screw | 92150977 (replaces 8123903) |
| 9 | Hollow screw | 92150977 |
| 9A | Banjo screw | 5125406 |
| 10 | Gasket | 92150435 |
| 10 | Gasket | 11066422 |
| 11 | Seal | 4161162 (replaces 8326712) |
| 13A | Gasket | 5959242 |
| 13A | Gasket | 55557700 |
| 14 | Brace | 55559093 (replaces 9179342) |
| 14 | Brace | 55559093 (replaces 55558579) |
| 14 | Brace | 55559093 |
| 15 | Screw | 92150012 (replaces 7978182) |
| 15 | Screw | 92150012 |
| 15A | Screw | 55566034 (replaces 7978190) |
| 15A | Screw | 55566034 (replaces 92150013) |
| 15A | Screw | 55566034 (replaces 55562875) |
| 16 | Boost pressure control valve | 55557331 (replaces 9175290) |
| 16 | Solenoid valve | 55557331 (replaces 55562786) |
| 16 | Solenoid valve | 55557331 |
| 17 | Vaccum hose | 30581028 |
| 17 | Vacuum hose | 55561598 |
| 18 | Tube | 55559426 (replaces 9172164) |
| 18 | Pipe | 55559426 (replaces 55557329) |
| 18 | Pipe | 55559426 |
| 18 | Tube | 55559428 (replaces 9174947) |
| 18 | Pipe | 55559428 |
| 19 | Pipe | 55559430 (replaces 55557330) |
| 19 | Pipe | 55559430 |
| 19 | Tube | 55559431 (replaces 9182460) |
| 19 | Pipe | 55559431 |
| 20 | O-ring | 7502263 |
| 21 | Gasket | 55563093 (replaces 9107582) |
| 21 | Gasket | 55563093 (replaces 90490305) |
| 21 | Seal | 55563093 |
| 22 | Screw | 7985930 |
| 22 | Screw | 11098741 (replaces 4348710) |
| 22 | Screw | 11098741 |
| 23 | Tube | 9172156 |
| 23 | Tube | 9179334 |
| 23A | Tube | 9180514 |
| 23A | Tube | 9174939 |
| 24 | Tube | 30572378 (replaces 9180522) |
| 25 | Hose | 9188657 |
| 26 | Hose clamp | 4576591 |
| 25 | Hose | 9188657 (replaces 9179326) |
| 27 | Nipple | 12755113 |
| 28 | Vaccum hose | 55558606 (replaces 9172487) |
| 28 | Vacuum hose | 55558606 |
| 30 | Clamp | 92150772 (replaces 7969355) |
| 30 | Clamp | 92150772 |
| 31 | Screw | 11900355 (replaces 7978117) |
| 31 | Screw | 11900355 (replaces 92150003) |
| 32 | Nut | 11900451 (replaces 7977929) |
| 33 | Screw | 9483991 |
| 33 | Screw | 55560086 |
| 34 | Washer | 9542408 |
| 34 | Washer | 55560087 |
| 35 | Retaining ring | 55558372 (replaces 9185497) |
| 35 | Retaining ring | 9542416 |
| 36 | Sealing kit | 9185489 |
| 37 | Nut | 55560915 |
| 38 | Mounting kit | 55563823 |
| 38 | Mounting kit | 55563824 |
| Turbocharger | 55563825 | |
| Air inlet | 12846127 (replaces 5327424) | |
| Air duct | 12846127 | |
| Shield | 5464144 | |
| Clip nut | 32000369 (replaces 7989395) | |
| Screw | 92151885 (replaces 7978638) |
