Saab 9-5 (9600) 2002-2010 Accelerator control

Group 2 Engine, section 1190

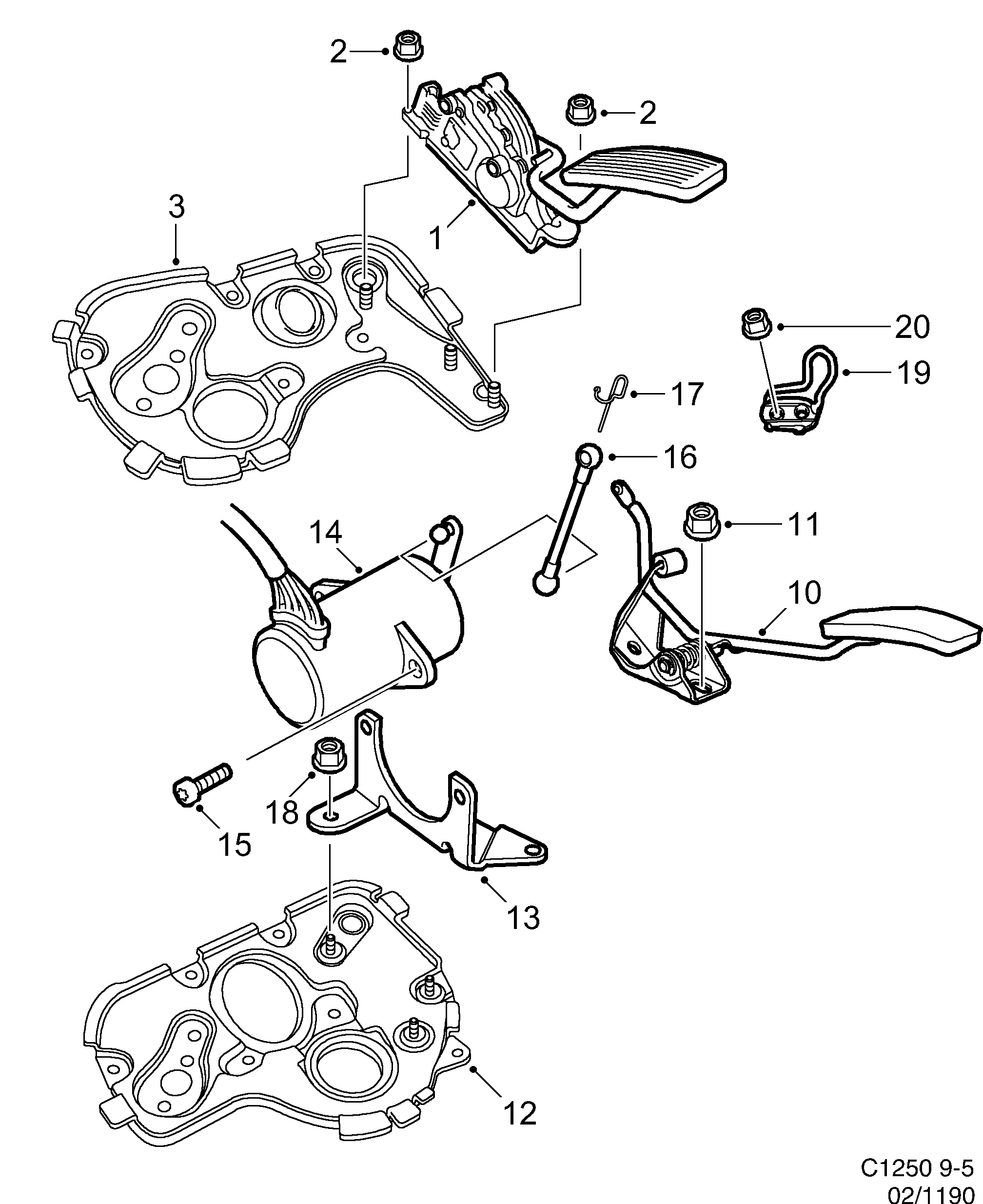

Saab 9-5 (9600) Accelerator control diagram
PosArticlePart No.
1Accelerator arm5340252
2Nut5391826
10Accelerator arm5391255
13Bracket90500182 (replaces 5340583)
14Pedal sensor90202252 (replaces 5340112)
15Screw7978422
15Screw92151601
16Intermediate arm5340609
17Clip5340716
19Bracket4908836
20Nut11900451 (replaces 7977929)
