Saab 9-5 (9600) 2006-2010 Thermostat, etc

Group 2 Engine, section 1175

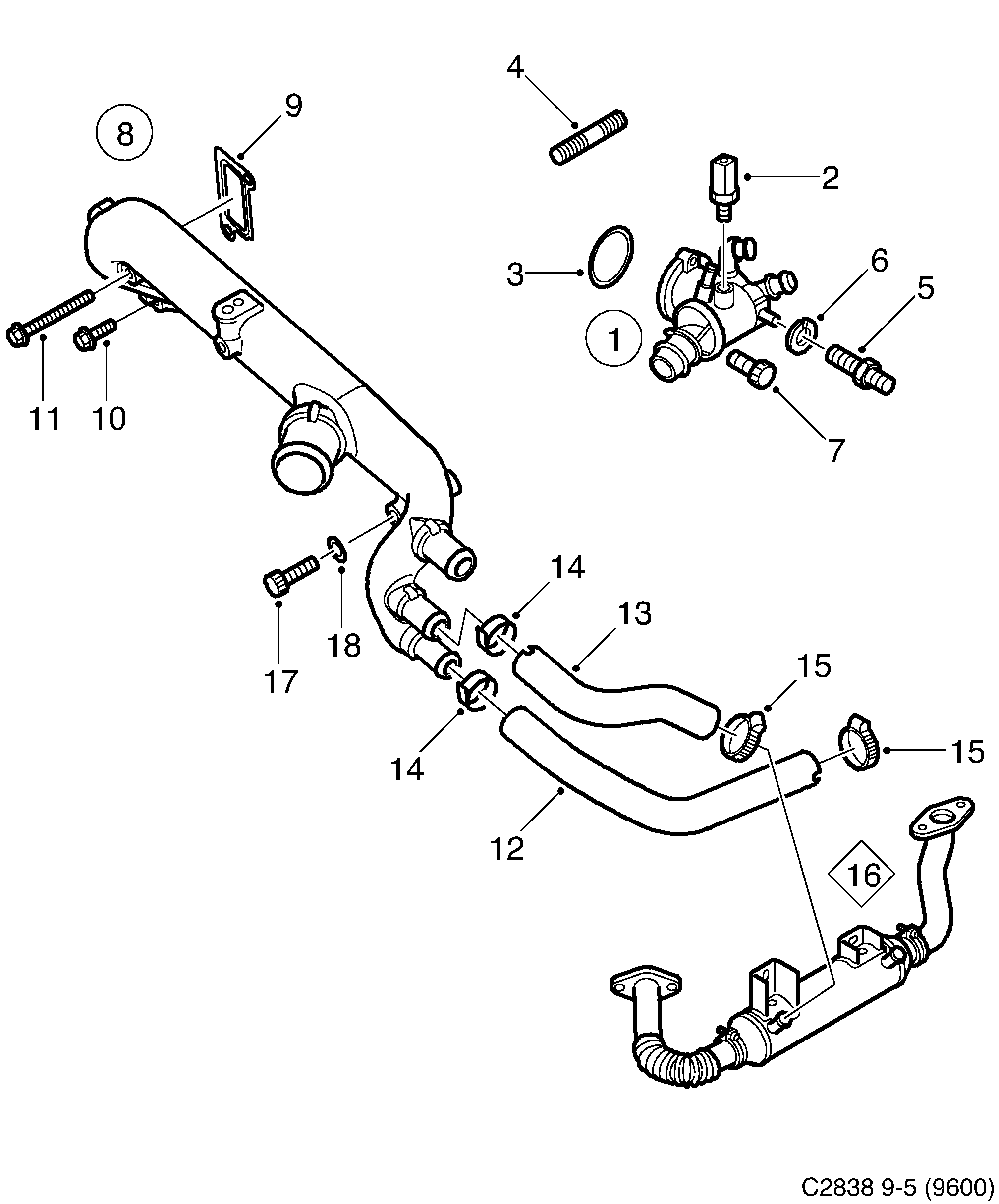

Saab 9-5 (9600) Thermostat, etc diagram

Pos	Article	Part No.
1	Thermostat housing	55203388
2	Engine coolant temperature sensor	55193203 (replaces 93184155)
3	Gasket	93180492
4	Stud	93179141
5	Screw	93179140
6	Washer	93178879
7	Screw	93178829
8	Pipe	55188738
9	Gasket	93180498
9	Gasket	55566106 (replaces 55566010)
10	Hexagon screw	12855321
11	Screw	93179088
12	Hose	55188749
13	Hose	55188737
14	Hose clamp	93180491
17	Screw	93181863 (replaces 12855329)
17	Screw	93181863
18	Washer	93181620
