Saab 9-5 (9600) 2002-2005 Engine suspension

Group 2 Engine, section 115

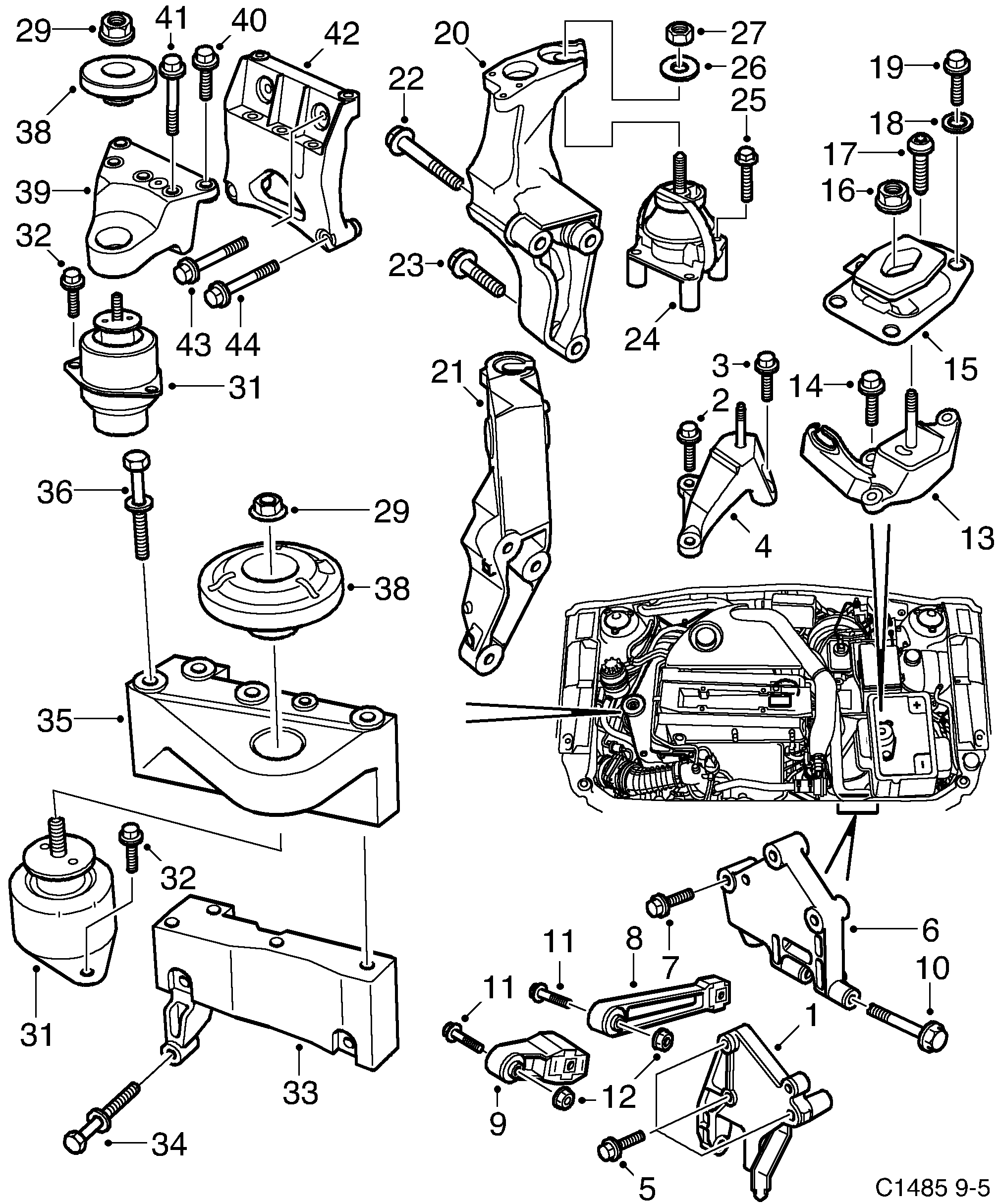

Saab 9-5 (9600) Engine suspension diagram

Pos	Article	Part No.
1	Engine bracket	5236393
2	Screw	92151521 (replaces 7982549)
3	Screw	92150036 (replaces 7982572)
4	Engine bracket	5063268
5	Screw	92153207 (replaces 7978315)
6	Engine bracket	5063334
8	Torque rod	5230685
9	Torque rod	5530258
10	Hexagon screw	4348561
11	Screw	4347514
12	Nut	4348009
13	Engine bracket	5063284
14	Screw	92153210 (replaces 7986102)
15	Vibration damper	5063714
16	Flange nut	11900431 (replaces 7987100)
17	Screw	5125539
18	Washer	4685129
19	Screw	5235551
20	Engine bracket	5063292
21	Engine bracket	5063300
22	Screw	92153211 (replaces 7986136)
23	Screw	92151541 (replaces 7986185)
24	Vibration damper	5237219
25	Screw	7985807
27	Hexagon nut	11900426
31	Vibration damper	12770367 (replaces 5239140)
33	Engine bracket	5236773
34	Hexagon screw	7982598
35	Engine bracket	5236781
38	Vibration damper	5235247
39	Engine bracket	5063672
40	Screw	92153206 (replaces 7978307)
42	Engine mountings	5063680
44	Screw	5125513
