Saab 9-5 (9600) 1998-2010 Coolant pump

Group 2 Engine, section 1120

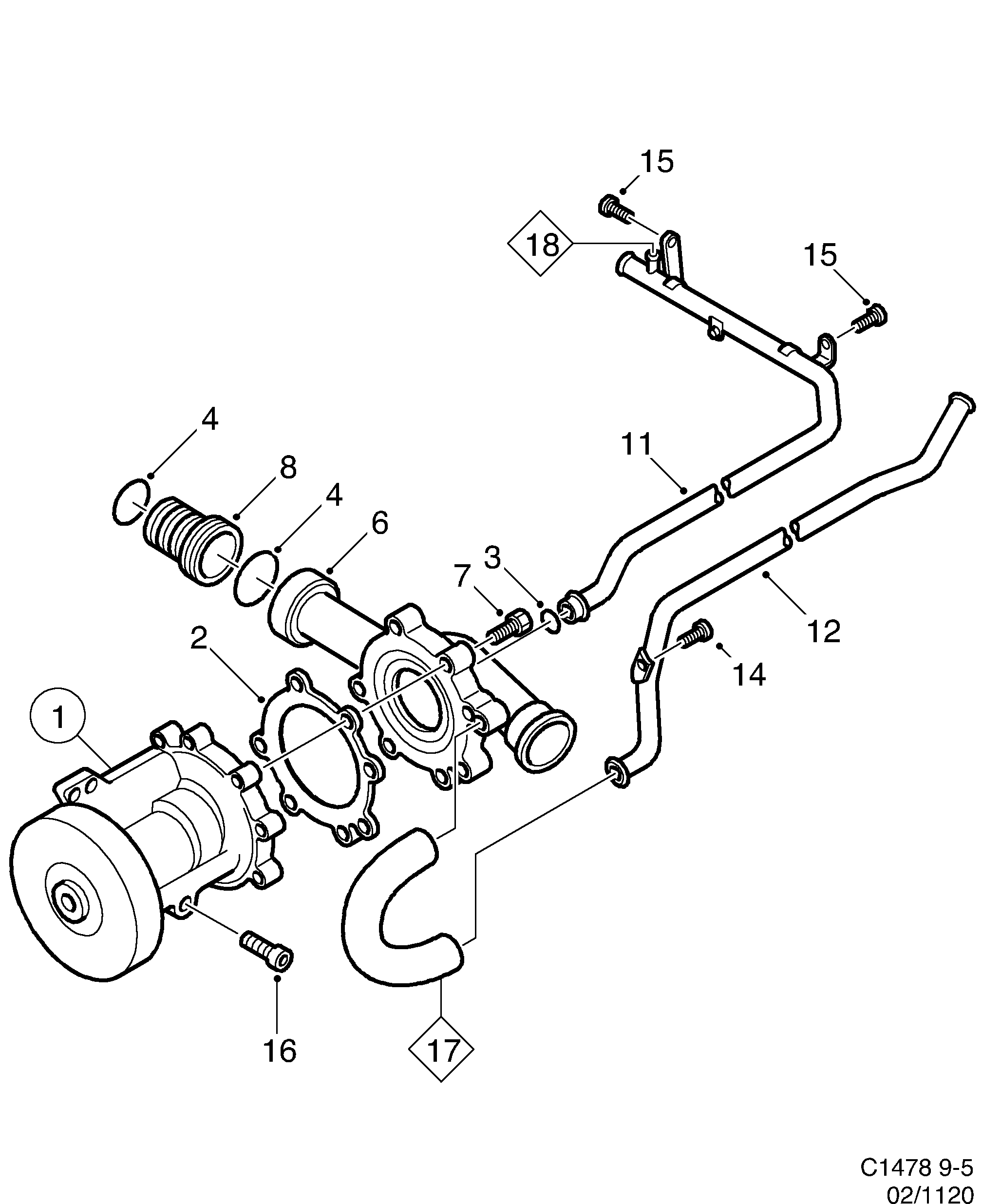

Saab 9-5 (9600) Coolant pump diagram

Pos	Article	Part No.
1	Coolant pump	93166829 (replaces 8822710)
1	Coolant pump	93166829 (replaces 5960414)
2	Gasket	9144767
3	O-ring	30551913
4	O-ring	55562943 (replaces 30551914)
4	O-ring	55562943 (replaces 55557315)
6	Pump connection	9173741
7	Screw	92151823 (replaces 8059586)
7	Screw	92151823
8	Tube	55558804 (replaces 9177031)
8	Pipe	55558804
11	Tube	55559406 (replaces 9182544)
11	Pipe	55559406 (replaces 55557318)
11	Pipe	55559406
12	Tube	55559405 (replaces 9146523)
12	Pipe	55559405 (replaces 55557317)
12	Pipe	55559405
12	Pipe	55566450
14	Screw	11900354 (replaces 92150002)
15	Screw	11900353 (replaces 7978091)
15	Screw	7972466
15	Screw	11900353
16	Screw	11900367
16	Screw	55566033 (replaces 55557316)
16	Hexagon screw	55566033
