Saab 9-5 (9600) 2002-2010 Engine suspension

Group 2 Engine, section 110

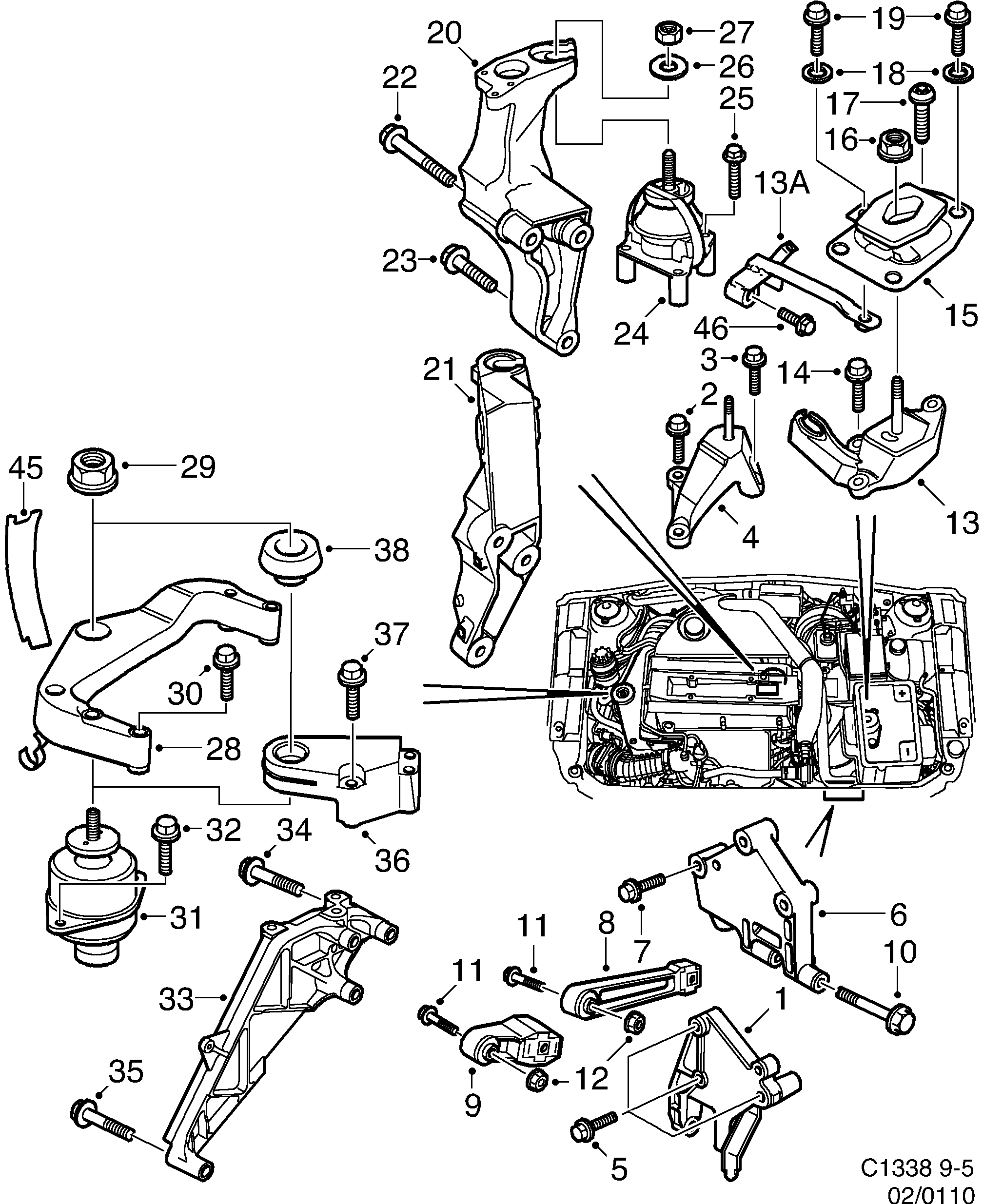

Saab 9-5 (9600) Engine suspension diagram

Pos	Article	Part No.
1	Engine bracket	5236393
2	Screw	92151521
3	Screw	92150036 (replaces 7982572)
4	Engine bracket	5063268
5	Screw	92153207 (replaces 7978315)
6	Engine bracket	5063334
8	Torque rod	5230685
9	Torque rod	5230693
10	Hexagon screw	4348561
11	Screw	4347514
12	Nut	4348009
13	Engine bracket	5063284
13A	Brace	5239470
14	Screw	92153210
15	Vibration damper	5063714
15	Vibration damper	5063714 (replaces 5239462)
16	Flange nut	11900431
17	Screw	5125539
18	Washer	4685129
19	Screw	5235551
19	Screw	55557007 (replaces 7984297)
20	Engine bracket	5063292
21	Engine bracket	5063300
22	Screw	92153211
23	Screw	92151541
24	Vibration damper	4967345
24	Vibration damper	5239173
25	Screw	7985807
27	Hexagon nut	11900426
28	Engine bracket	5235528
30	Screw	92151523
31	Vibration damper	12770367 (replaces 5239140)
31	Vibration damper	12770367
33	Engine mountings	5235544
34	Screw	7982580
34	Hexagon screw	7982598
35	Screw	92151523 (replaces 7982564)
36	Engine bracket	5235536
38	Vibration damper	4967295
38	Washer	4685913
38	Vibration damper	5230016
45	Stone guard	4399747
46	Screw	7986169
