Saab 9-5 (9600) 1998-2010 Air oil cooler Automatic transmission

Group 2 Engine, section 1090

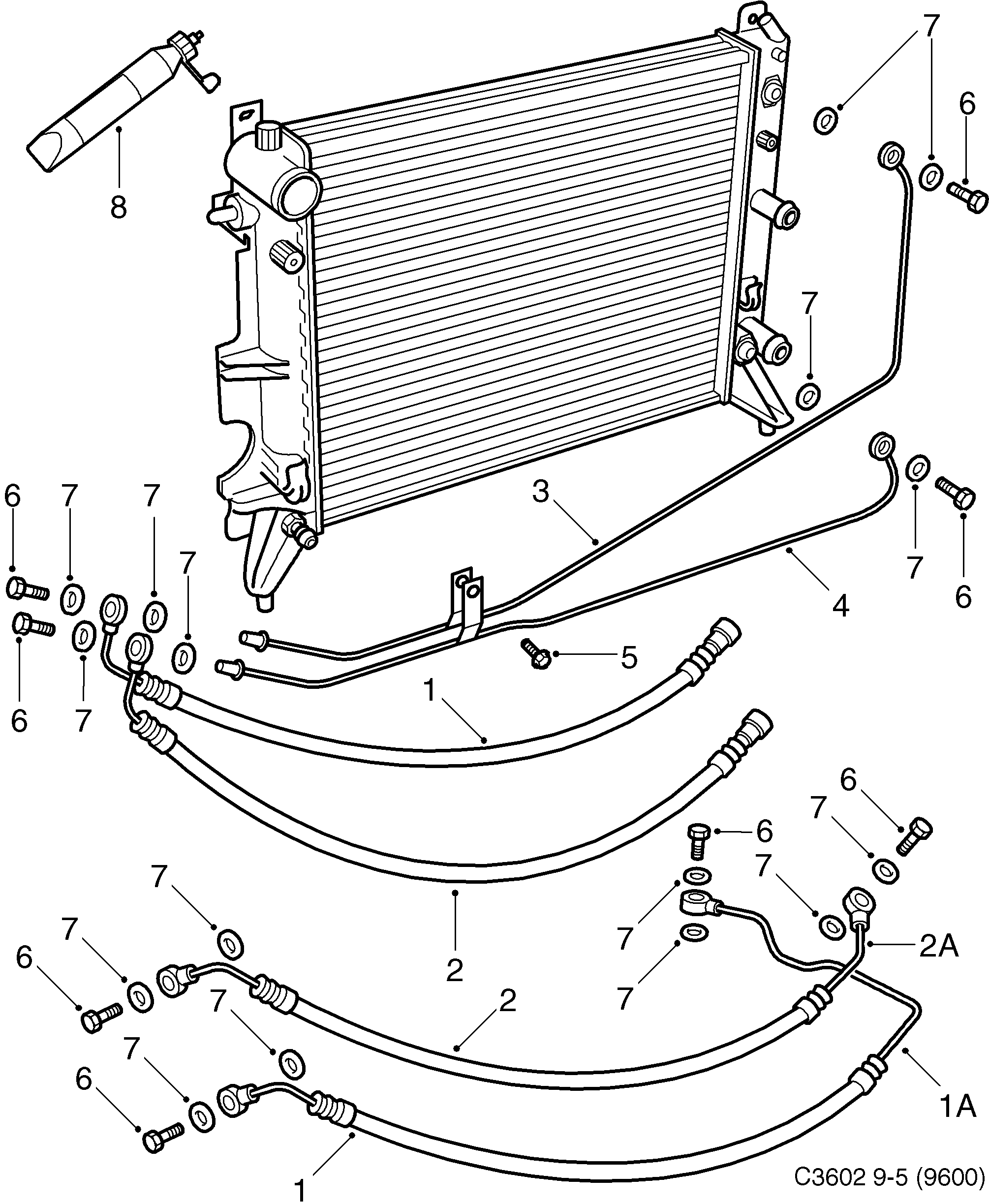

Saab 9-5 (9600) Air oil cooler Automatic transmission diagram

Pos	Article	Part No.
1	Hydraulic hose	4576260
1	Hydraulic hose	12775717 (replaces 5194014)
1	Hydraulic hose	12775717
1	Hydraulic hose	4576245
1	Hydraulic hose	5467667 (replaces 5193412)
1	Hydraulic hose	5467675
1	Hose	12778249 (replaces 12760689)
1A	Hose	12760691
1A	Hydraulic hose	5467667
2	Hydraulic hose	5194873 (replaces 4576278)
2	Hydraulic hose	5194873
2	Hydraulic hose	12775718 (replaces 5193974)
2	Hydraulic hose	12775718
2	Hydraulic hose	4576252
2	Hydraulic hose	5467683 (replaces 5193420)
2	Hydraulic hose	5467691
2	Hose	12778248 (replaces 12760685)
2A	Hose	12760687
2A	Hydraulic hose	5467683
3	Hydraulic oil pipe	12775716 (replaces 4576906)
3	Hydraulic oil pipe	12775716
4	Hydraulic oil pipe	12775715 (replaces 4576914)
4	Hydraulic pipe	12775715
5	Screw	92153149
6	Banjo bolt	12773569 (replaces 4374211)
6	Hollow screw	12773569
7	Sealing ring	12771933
8	Wetting agent	90540018
