Saab 9-5 (9600) 1998-2003 Air oil cooler

Group 2 Engine, section 1040

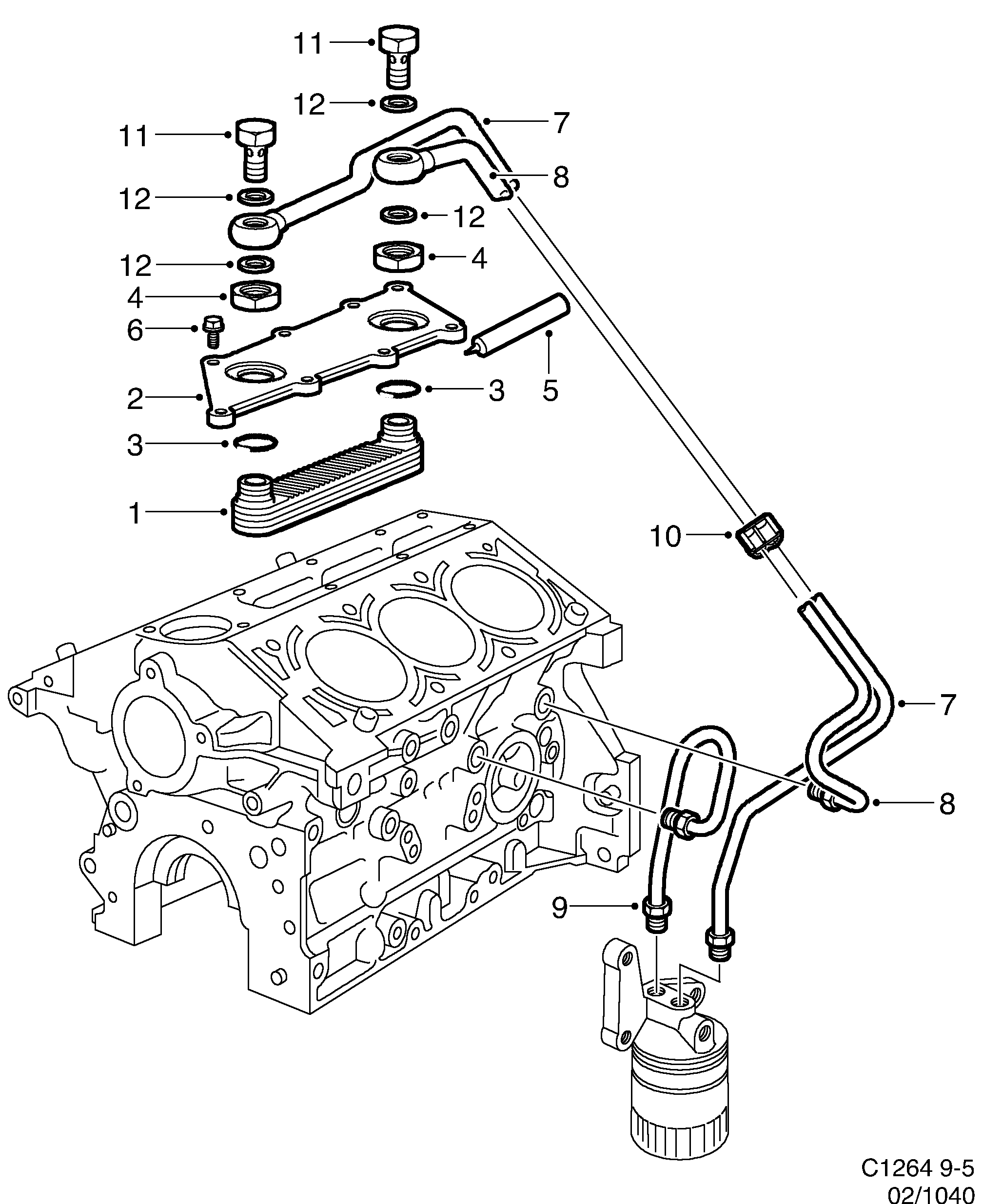

Saab 9-5 (9600) Air oil cooler diagram

Pos	Article	Part No.
1	Oil cooler	4770988
2	Cover	90501955 (replaces 4770152)
3	Seal	90409175 (replaces 4502472)
4	Nut	90409174 (replaces 4502480)
5	Flange sealant	93165267 (replaces 4770202)
5	Gasket	93165267 (replaces 93160951)
6	Screw	11098931 (replaces 9483652)
7	Tube	90490520 (replaces 9171166)
7	Tube	90490520 (replaces 9185802)
8	Oil pipe	9240164 (replaces 4620282)
8	Oil pipe	9240164 (replaces 9483660)
9	Tube	90490195 (replaces 9171158)
10	Bracket	90502262
11	Hollow screw	90500651 (replaces 4621397)
11	Hollow screw	5958095
12	Sealing ring	4621413
