Saab 9-5 (9600) 2002-2005 Charge air cooler

Group 2 Engine, section 1035

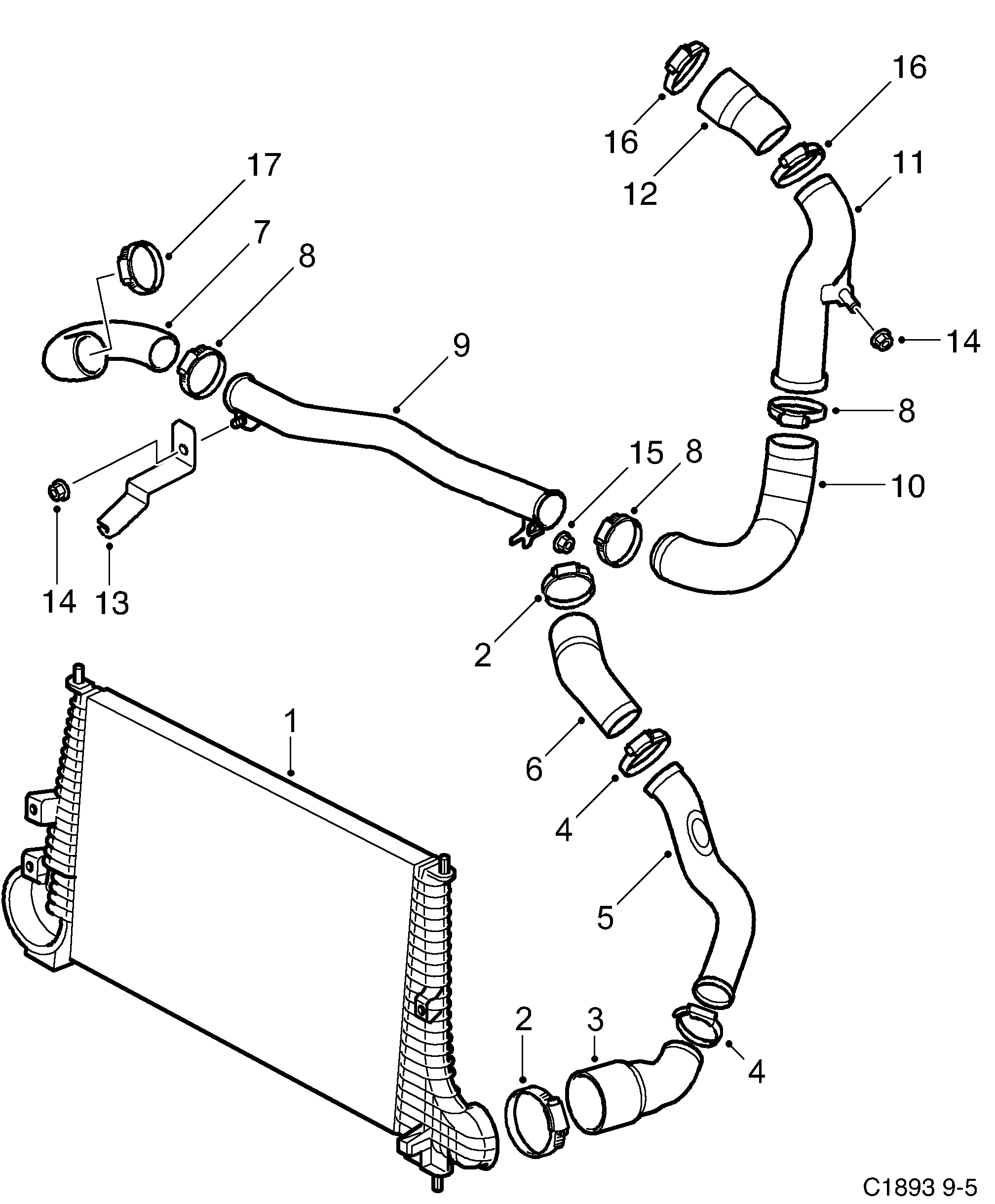

Saab 9-5 (9600) Charge air cooler diagram

Pos	Article	Part No.
1	Charge air cooler	4726568
2	Hose clamp	5125927
3	Hose	5324082
4	Hose clamp	5125869
5	Pipe	5324090
6	Hose	5324108
7	Hose	5191622
7	Hose	5461975
8	Hose clamp	12801888 (replaces 5125851)
9	Pipe	5324074
10	Hose	5324066
11	Pipe	5192497
12	Hose	5192489
13	Bracket	5324306
14	Hexagon nut	11900452 (replaces 7977952)
15	Lock nut	90304096 (replaces 4345567)
16	Hose clamp	5125901
17	Hose clamp	5125919
