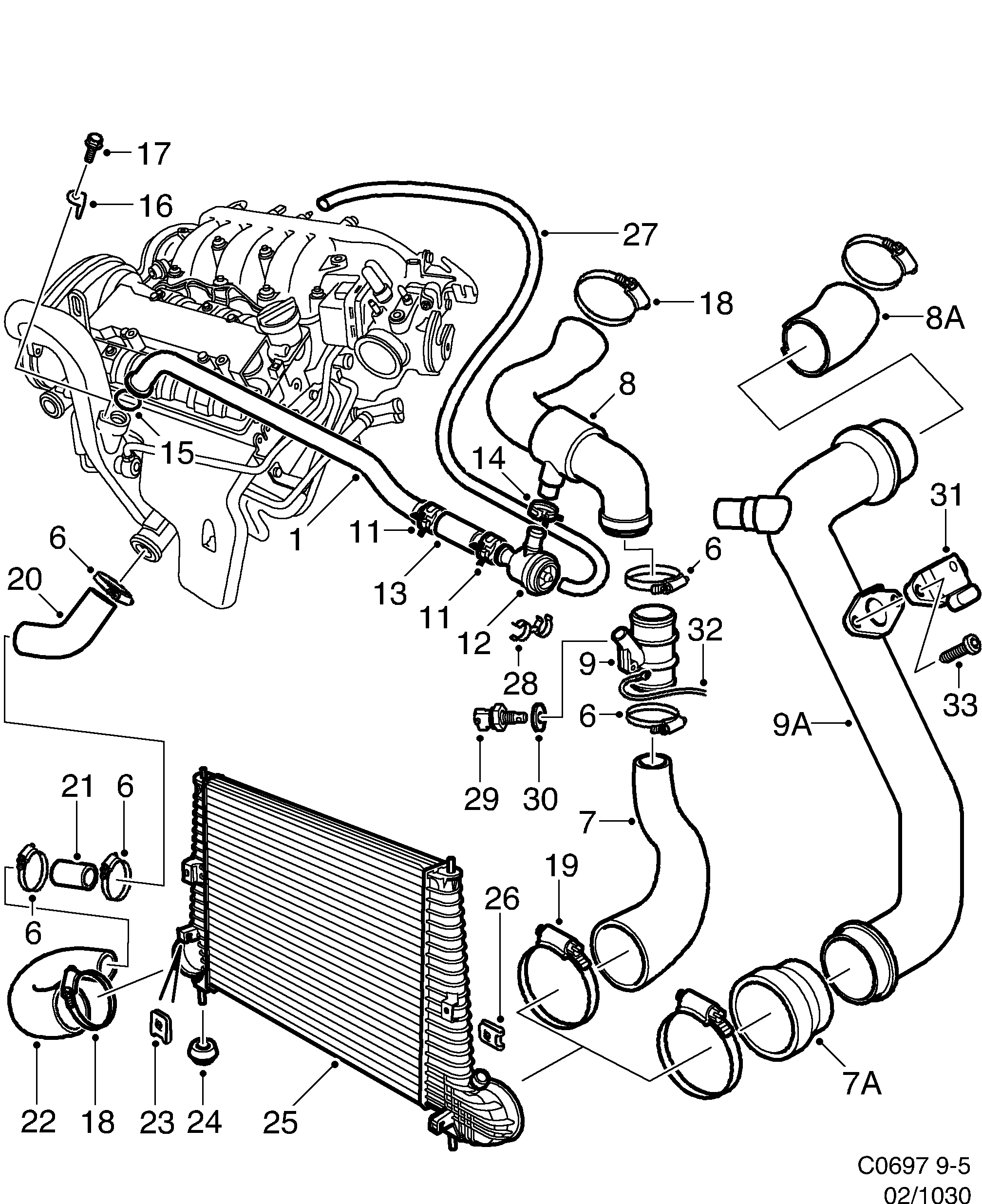

Group 2 Engine, section 1030
| Pos | Article | Part No. |
|---|---|---|
| 1 | Pipe | 4967774 (replaces 4572673) |
| 1 | Pipe | 4967774 |
| 1 | Pipe | 4964557 |
| 6 | Hose clamp | 92153077 (replaces 7970130) |
| 6 | Hose clamp | 92153079 (replaces 7970148) |
| 7 | Hose | 4967840 (replaces 4728804) |
| 7 | Hose | 4967840 |
| 7A | Hose | 5190400 |
| 8 | Hose | 4967857 (replaces 4728838) |
| 8 | Hose | 4967857 |
| 8A | Hose | 5190418 |
| 9 | Pipe | 4895561 |
| 9A | Pipe | 5190384 |
| 9A | Pipe | 5193255 |
| 11 | Hose clamp | 90571576 (replaces 4576617) |
| 12 | By-pass valve | 4441895 |
| 13 | Hose | 7591936 |
| 13 | Hose | 4964540 |
| 13 | Hose | 5322433 |
| 14 | Hose clamp | 90572594 (replaces 4576609) |
| 15 | O-ring | 7987415 (replaces 7985781) |
| 15 | O-ring | 7987415 |
| 16 | Clamp | 4670352 |
| 17 | Screw | 11900353 (replaces 7978091) |
| 19 | Hose clamp | 92153080 (replaces 7970155) |
| 20 | Hose | 5191614 (replaces 4672119) |
| 20 | Hose | 5191614 |
| 21 | Pipe | 4672101 |
| 22 | Hose | 5191622 (replaces 4672093) |
| 22 | Hose | 5191622 |
| 23 | Clip | 8267098 |
| 24 | Rubber bushing | 90091989 (replaces 4283594) |
| 25 | Charge air cooler | 4726568 |
| 27 | Vaccum hose | 9136243 |
| 28 | Clamp | 7398407 |
| 29 | Intake air temperature sensor | 9174442 |
| 30 | Washer | 4161261 |
| 31 | Sensor | 55563262 (replaces 9197948) |
| 32 | Ground cable | 9185000 |
| 33 | Screw | 7922370 |
