Saab 9-5 (9600) 2002-2005 Charge air cooler

Group 2 Engine, section 1010

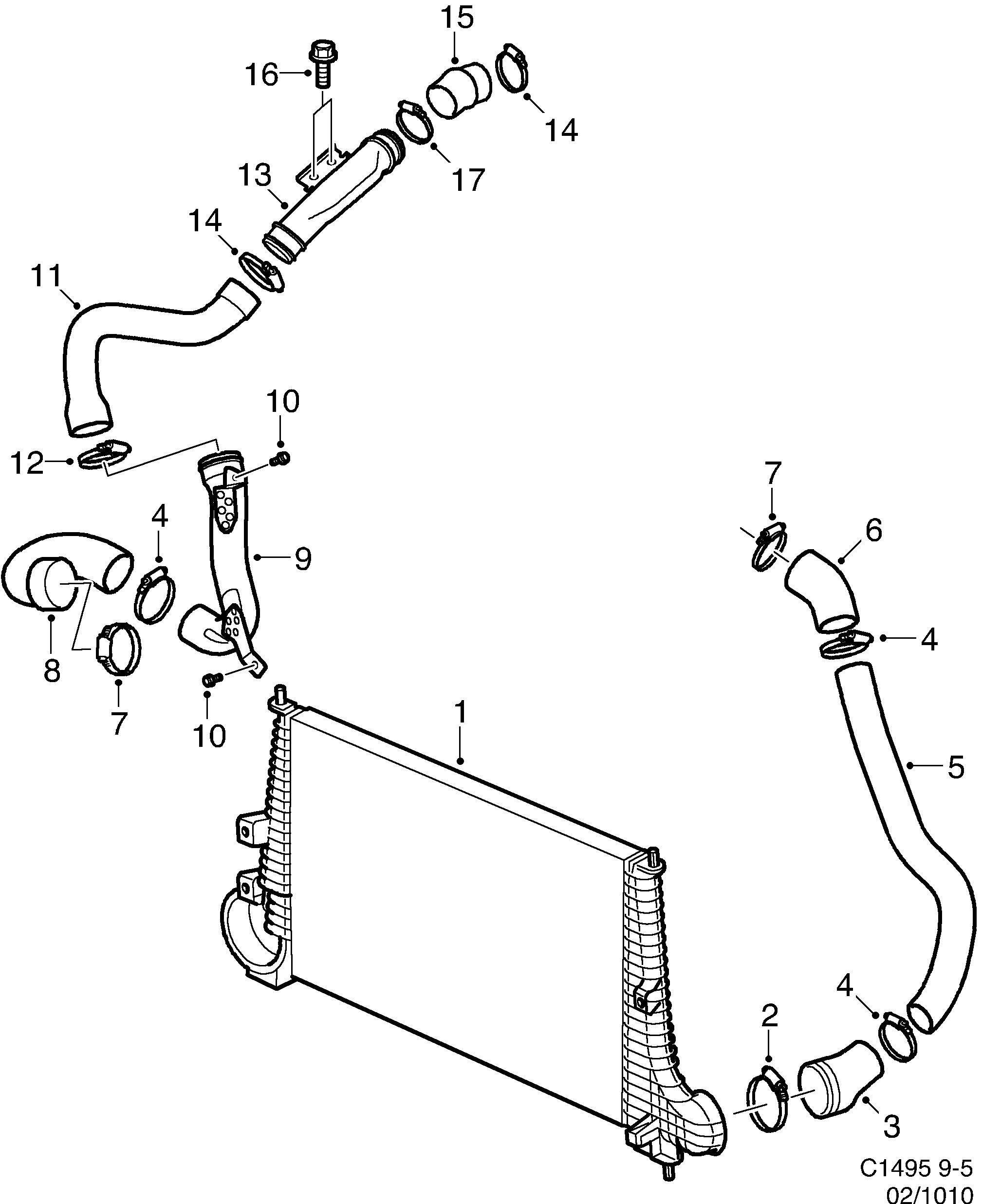

Saab 9-5 (9600) Charge air cooler diagram

Pos	Article	Part No.
1	Charge air cooler	4726568
2	Hose clamp	92153080 (replaces 7970155)
3	Charge air hose	5460324
4	Hose clamp	92153077 (replaces 7970130)
5	Charge air pipe	5460316
5	Charge air pipe	5463666
6	Hose	5460308
7	Hose clamp	92153079 (replaces 7970148)
8	Hose	5327986
9	Tube	5327978
10	Screw	11900354 (replaces 7978109)
11	Air hose	12775121 (replaces 5327960)
11	Air hose	12775121 (replaces 5464961)
11	Air duct	12775121
12	Hose clamp	7970122
13	Tube	5328125
15	Air hose	5328133
16	Screw	11900353 (replaces 7978091)
17	Hose clamp	5125935
