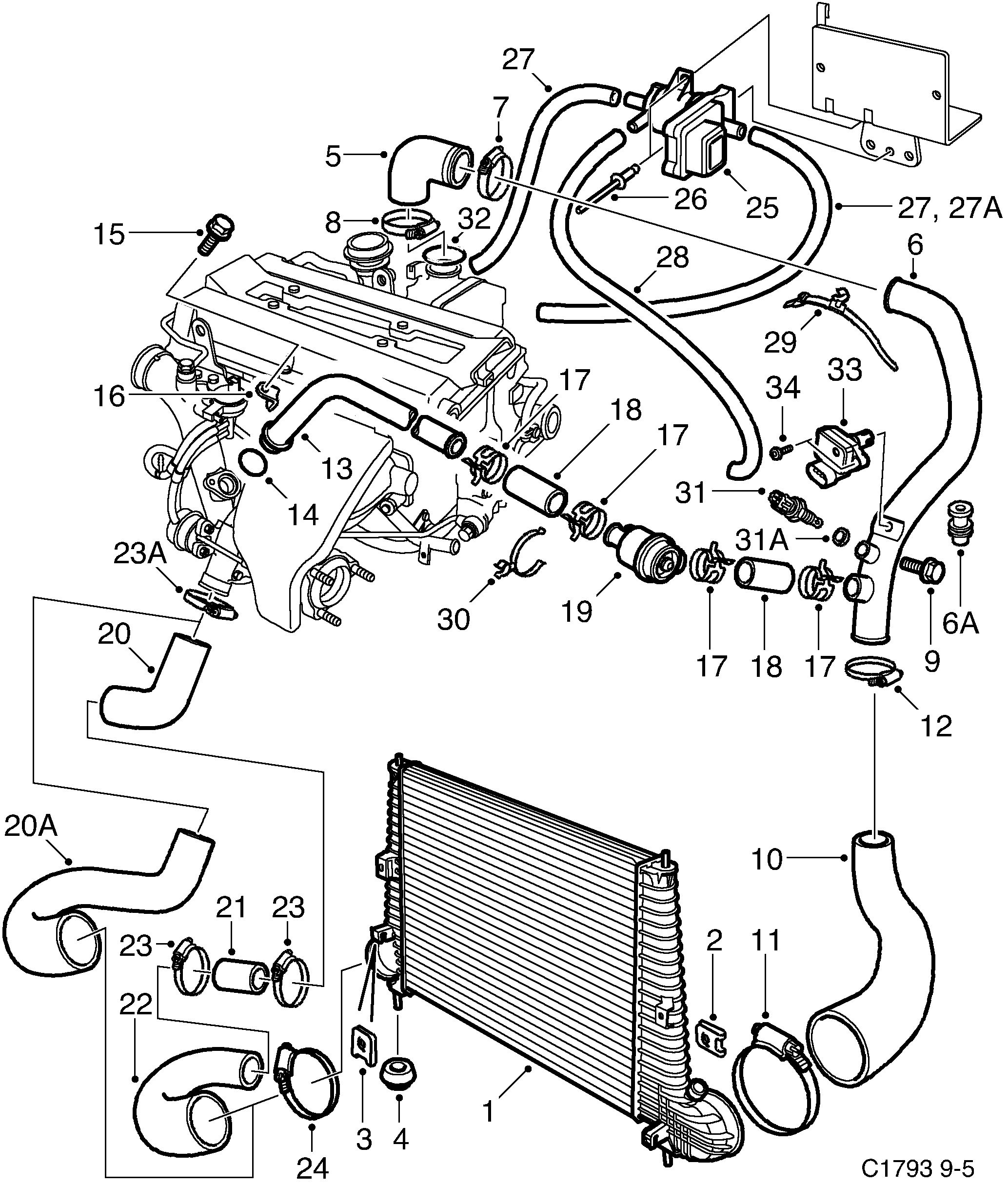

Saab 9-5 (9600) 1998-2010 Charge air cooler

Group 2 Engine, section 1000

Pos	Article	Part No.
1	Charge air cooler	4576039
2	Clip	8267098
4	Rubber bushing	90091989 (replaces 4283594)
5	Hose	4670105
6	Charge air pipe	4670097
6	Charge air pipe	4753828
6	Charge air pipe	5191770
6A	Nipple	55557389 (replaces 9179318)
7	Hose clamp	92153077 (replaces 7970130)
8	Hose clamp	92153079 (replaces 7970148)
8	Hose clamp	4940144
9	Screw	55566034 (replaces 7978190)
10	Air hose	4966693 (replaces 4572632)
10	Charge air hose	4966701 (replaces 4753851)
10	Charge air hose	4966701
11	Hose clamp	92153080 (replaces 7970155)
11	Hose clamp	24415472
12	Hose clamp	92153077 (replaces 92150221)
12	Hose clamp	24415468
13	Pipe	4572590
13	Tube	4753869
14	O-ring	7987415 (replaces 7985781)
14	O-ring	7987415
15	Screw	11900353 (replaces 92150001)
15	Screw	11900353
16	Clamp	4670352
17	Hose clamp	90571576
18	Hose	7591936
19	By-pass valve	4441895
20	Air hose	4966735 (replaces 4672135)
20A	Air hose	4966735 (replaces 4965935)
20A	Air hose	4966735
21	Pipe	4672143
22	Air hose	4672150
25	Vacuum valve	55562854 (replaces 9179011)
25	Vacuum valve	55562854 (replaces 9189002)
25	Vacuum valve	55562854
26	Rivet	92153060 (replaces 92150179)
26	Rivet	92153060
27	Vaccum hose	9136243
29	Tie strap	7398977
30	Clamp	7398407
31	Intake air temperature sensor	9174442
31A	Washer	4161261
32	O-ring	4940698
33	Sensor	55563262 (replaces 55560162)
34	Screw	7922370
