Saab 9-5 (650) 2010-2011 AC Pipes

Group 8c Heating and ventilation, section 300

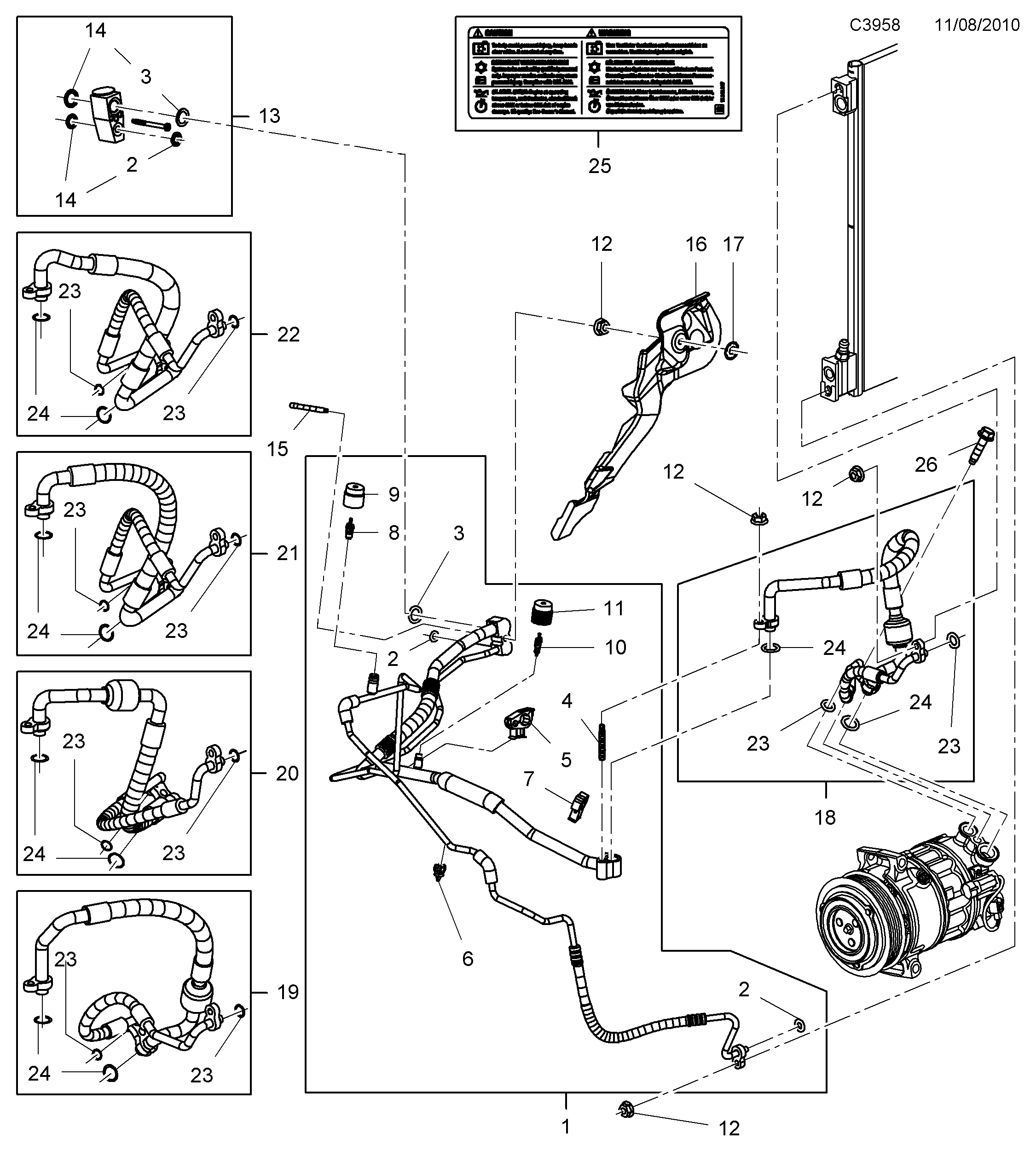

Saab 9-5 (650) AC Pipes diagram

Pos	Article	Part No.
1	Hose	13312825
2	O-ring	24436646
3	O-ring	24436645
4	Screw	24460770
5	Clip	13288662
6	Clip	13312826
7	Clamp	13268583
8	Valve	13122149
9	Valve cap	13122150
10	Valve	3041827
11	Valve cap	52458768
12	Hexagon nut	11514596
13	Expansion valve	13313727
14	O-ring kit	13263327
15	Stud	11562518
16	Shield	13225825
16	Protecting plate	13225825 (replaces 20914869)
17	Retainer	13272003
18	Pipe	13220111
19	Hose assembly	13264206
20	Pipe	13220109
21	Pipe	13220107
22	Pipe	13220108
25	Label	13302703
25	Label	13302704
25	Label	13302705
25	Label	13302706
26	Hexagon screw	11588725
