Saab 9-5 (650) 2010-2011 AC compressor

Group 8c Heating and ventilation, section 250

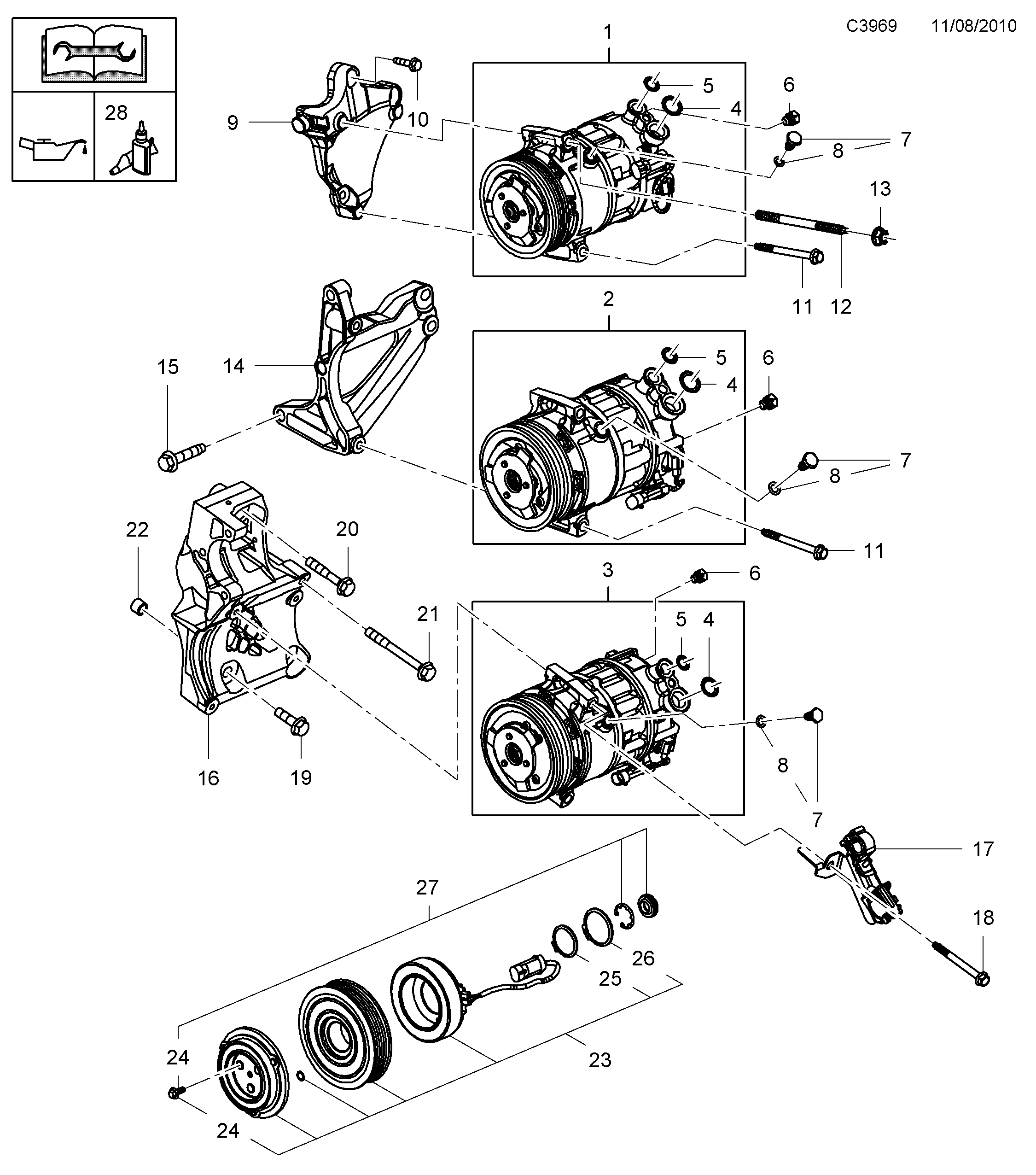

Saab 9-5 (650) AC compressor diagram

Pos	Article	Part No.
1	Compressor	13339088
1	Compressor	13262836
2	Compressor	13262838
3	Compressor	13262839
3	Compressor	13262841
4	O-ring	24436645
5	O-ring	24436646
6	Valve	9194582
7	Screw	93182417
8	O-ring	90543274
9	Support	12605471
10	Hexagon screw	11588725
11	Screw	11588734
12	Stud	11561936
13	Hexagon nut	11514596
14	Support	55354827
15	Screw	11588742
16	Support bracket	55562863
17	Bracket	13285668
19	Screw	55570610
20	Screw	55570611
21	Screw	55570612
22	Screw plug	93178469
23	Clutch	13282499
24	Hexagon screw	13262995
25	Snap ring	9118286
26	Snap ring	13262997
27	Sealing ring kit	13281449
28	Compressor oil	90509933
