Saab 9-5 (650) 2010-2011 Draft channels

Group 8c Heating and ventilation, section 220

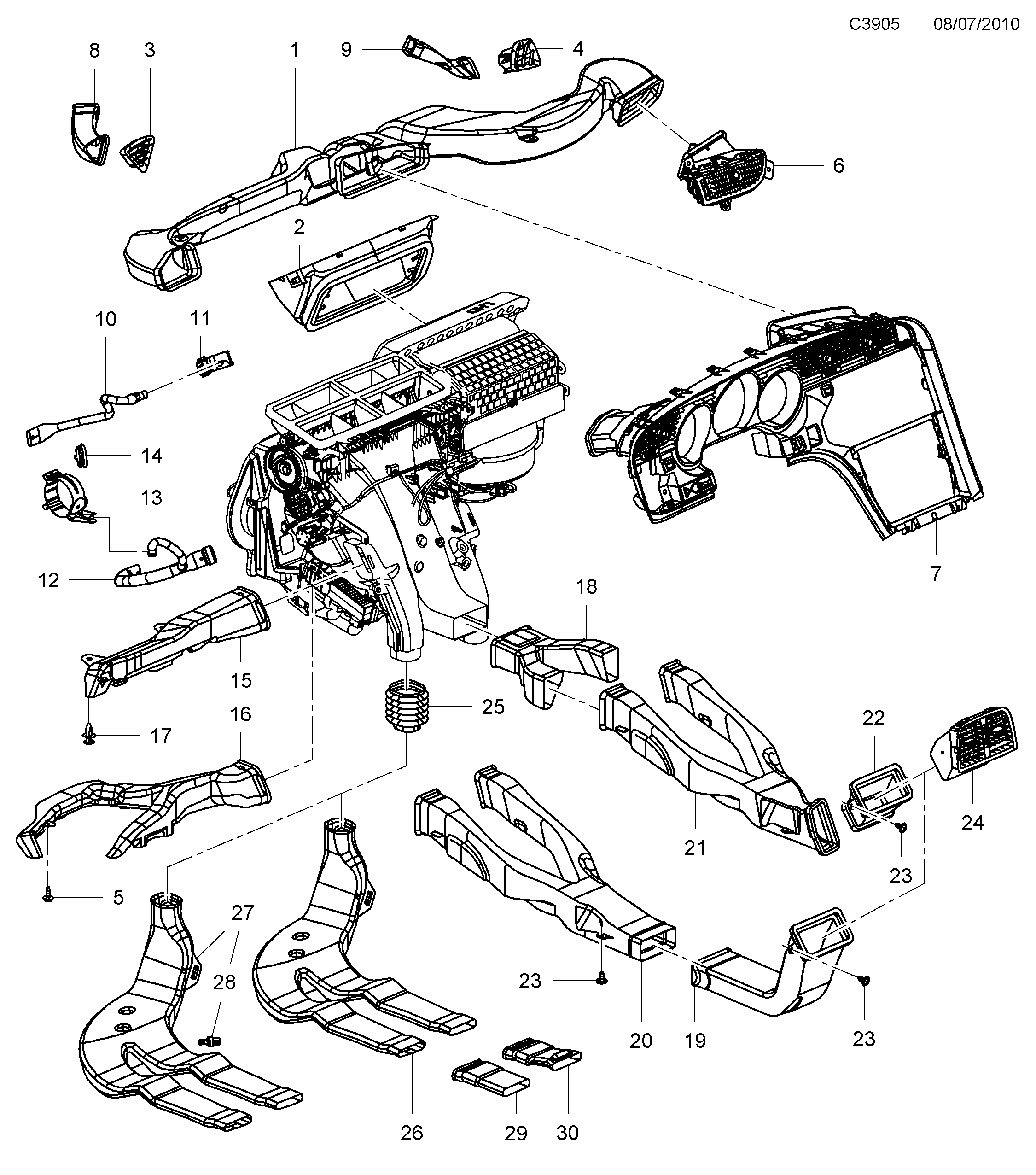

Saab 9-5 (650) Draft channels diagram

Pos	Article	Part No.
1	Air duct	13249841
1	Air duct	13249840
2	Cover	13251321
5	Hexagon screw	11609461
8	Air duct	13249837
9	Air duct	13264732
10	Air duct	13315897
11	Bracket	13315900
12	Air duct	13315896
13	Bracket	13315899
14	Cap blanking	13242038
15	Air duct	13302770
15	Air duct	13302771
16	Air duct	13242024
16	Air duct	13242025
17	Rivet	92152036
18	Air duct	12823236
19	Air duct	13249858
20	Air duct	13249859
21	Air duct	13264722
22	Air duct	13264724
23	Screw	13307262
25	Adapter	13305443
26	Air duct	13242031
26	Air duct	13242032
27	Air duct	13293443
28	Sensor	25917885
29	Air duct	12825396
30	Air duct	12825397
30	Air duct	12825398
