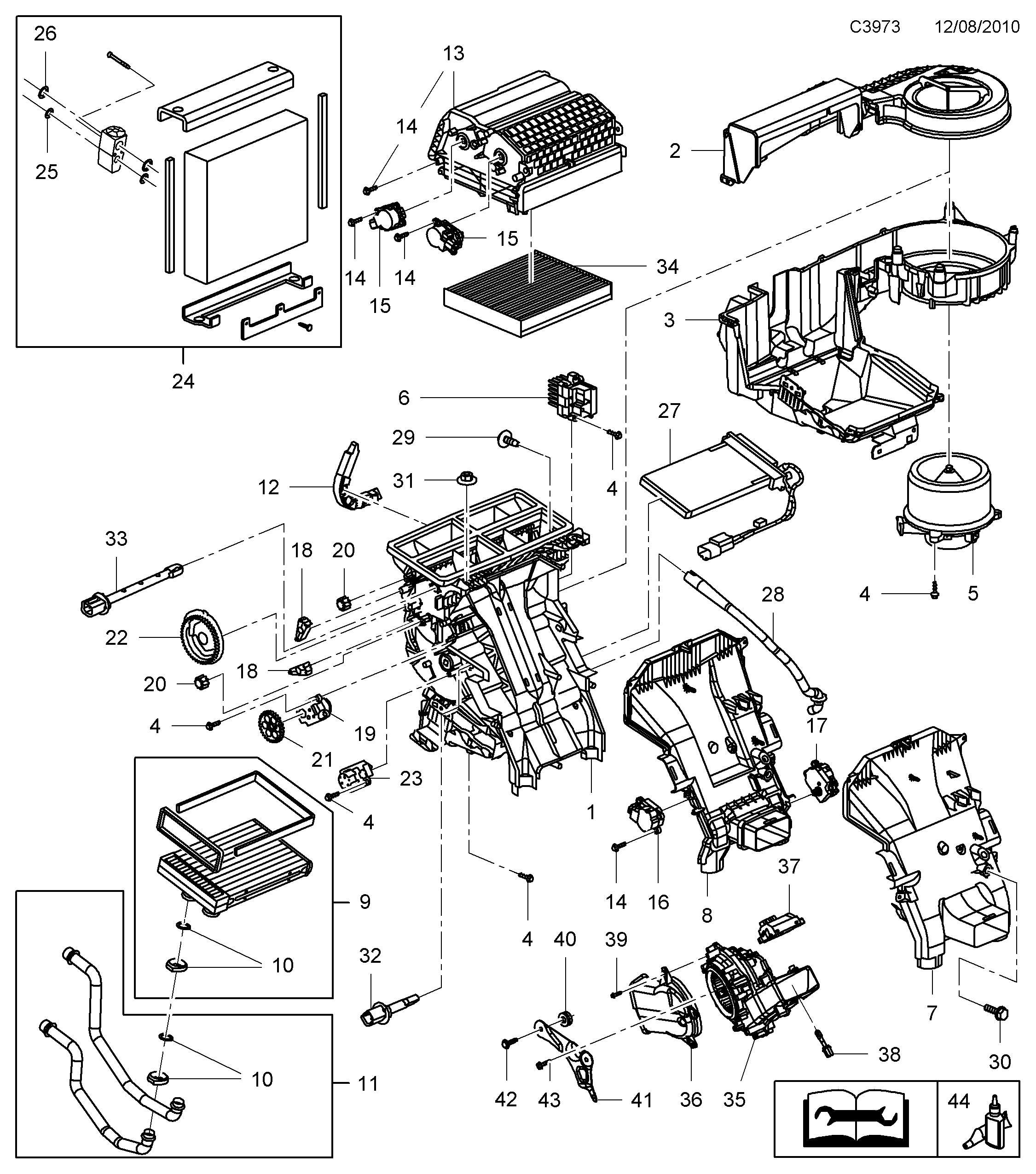

Group 8c Heating and ventilation, section 140
| Pos | Article | Part No. |
|---|---|---|
| 1 | Housing | 13351401 (replaces 13339065) |
| 1 | Housing | 13339066 |
| 1 | Housing | 13351405 (replaces 13339071) |
| 1 | Housing | 13351406 (replaces 13339072) |
| 2 | Housing | 13263284 |
| 2 | Housing | 13339075 |
| 3 | Housing | 13337764 |
| 3 | Housing | 13340944 |
| 3 | Housing | 13339076 |
| 4 | Screw | 13263280 |
| 5 | Fan motor | 13263279 |
| 5 | Fan motor | 13265193 |
| 6 | Regulator | 13503201 |
| 7 | Air outlet | 13283907 |
| 8 | Air outlet | 13283810 |
| 9 | Heat exchanger kit | 13263329 |
| 10 | Fastener kit | 93190977 |
| 11 | Hose kit | 13263331 |
| 12 | Bracket | 13337765 |
| 13 | Housing | 13277715 |
| 13 | Housing | 13277721 |
| 15 | Electrical motor | 13316344 |
| 15 | Electrical motor | 13332582 |
| 18 | Lever | 13263335 |
| 19 | Electrical motor | 13333726 |
| 20 | Gear | 13267333 |
| 22 | Gear | 13263294 |
| 23 | Electrical motor | 92215208 |
| 24 | Evaporator kit | 13339087 |
| 25 | O-ring | 24436644 |
| 26 | O-ring | 24436645 |
| 27 | Heat exchanger | 13265204 |
| 28 | Hose | 13251322 |
| 29 | Screw | 11519375 |
| 30 | Screw | 13293445 |
| 31 | Nut | 11609411 |
| 32 | Temperature sensor | 13297789 |
| 33 | Temperature sensor | 13263325 |
| 34 | Combination filter | 13271191 |
| 35 | Fan | 20889399 |
| 36 | Housing | 25884817 |
| 37 | Regulator | 25884818 |
| 39 | Screw | 11609829 |
| 40 | Damper bushing | 13284641 |
| 41 | Bracket | 13279428 |
| 41 | Bracket | 13279429 |
| 42 | Hexagon screw | 11519377 |
| 43 | Screw | 13283051 |
| 44 | Grease | 90510259 |
