Saab 9-5 (650) 2010-2011 Cushion frame Manual, 4-way

Group 8b Car body, internal, section 1500

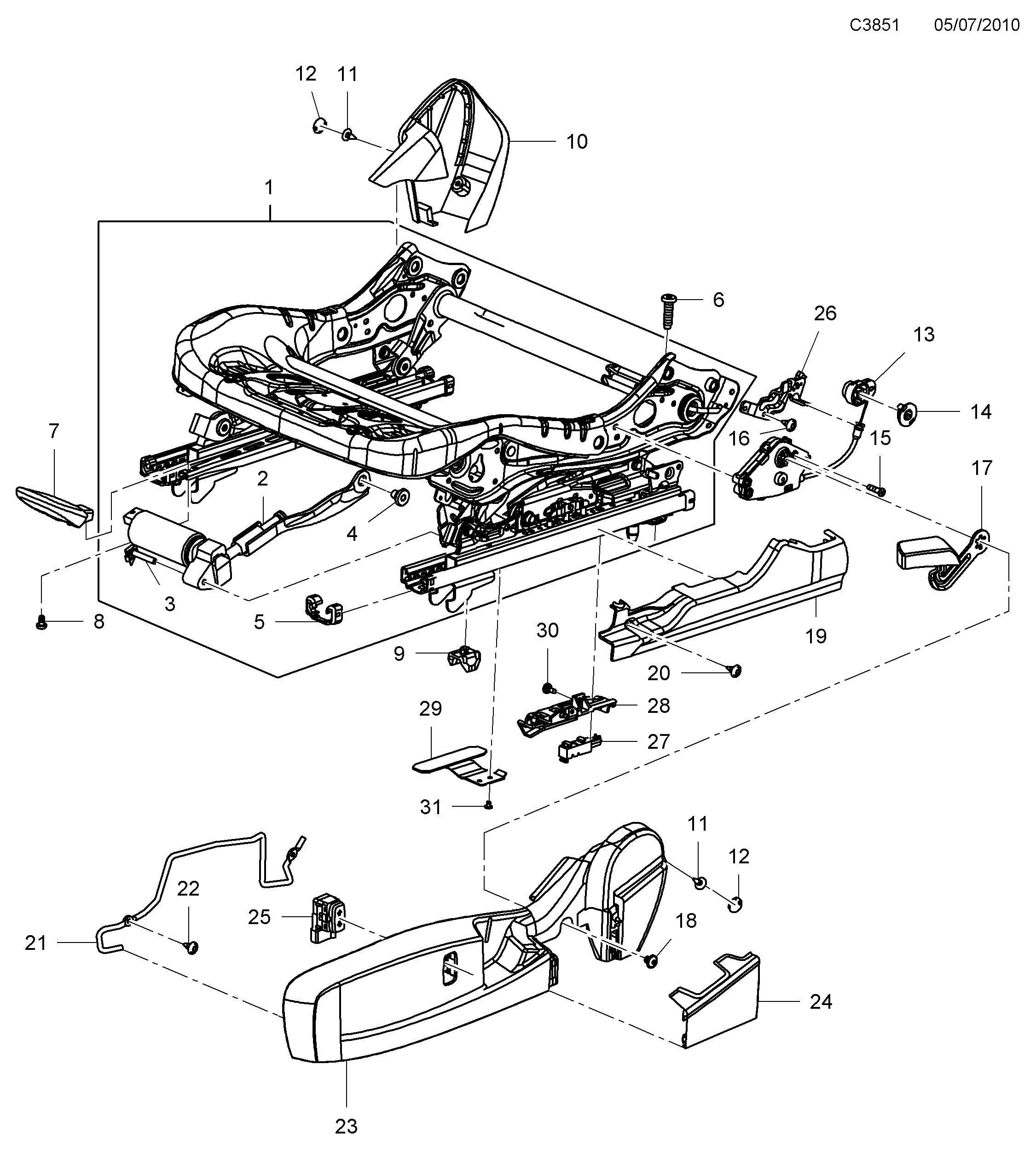

Saab 9-5 (650) Cushion frame Manual, 4-way diagram

Pos	Article	Part No.
1	Seat frame	13501065
1	Seat frame	13578593
1	Seat frame	13501066
1	Seat frame	13578594
2	Electrical motor	13578632
2	Electrical motor	13578633
3	Repair kit	13343675
4	Screw	13279159
5	Protective cap	13100009
6	Screw	12823523
7	Handle	13267435
7	Handle	13267436
7	Handle	13305907
8	Screw	13324600
9	Spacer piece	13239046
10	Cover	12824979
10	Cover	12824980
10	Cover	12824981
10	Cover	12824982
10	Cover	12824983
10	Cover	12824984
11	Screw	13330420
12	Cap	13287750
12	Cap	13287751
12	Cap	13305922
13	Control panel	13287116
13	Control panel	13287117
14	Retainer	13297902
15	Screw	13294683
17	Lever	13315657
17	Lever	13315658
17	Lever	13337400
17	Lever	13315659
17	Lever	13315660
17	Lever	13337399
18	Screw	13272971
19	Plate	13287548
19	Plate	13305914
19	Plate	13305915
19	Plate	13287544
19	Plate	13305916
19	Plate	13305917
21	Retainer	13287120
21	Retainer	13287121
23	Cover	13325368
23	Cover	13325369
23	Cover	13325365
23	Cover	13325366
24	Cover	13325403
24	Cover	13325404
24	Cover	13325406
24	Cover	13325407
24	Cover	13325405
24	Cover	13325408
25	Switch	13282592
25	Switch	13282593
25	Switch	13305980
26	Bracket	13294190
26	Bracket	13327838
26	Bracket	13294191
26	Bracket	13327839
27	Sensor	94706446
28	Bracket	13343431
29	Plate	13343432
30	Screw	13330420 (replaces 13110832)
31	Rivet	92234427
