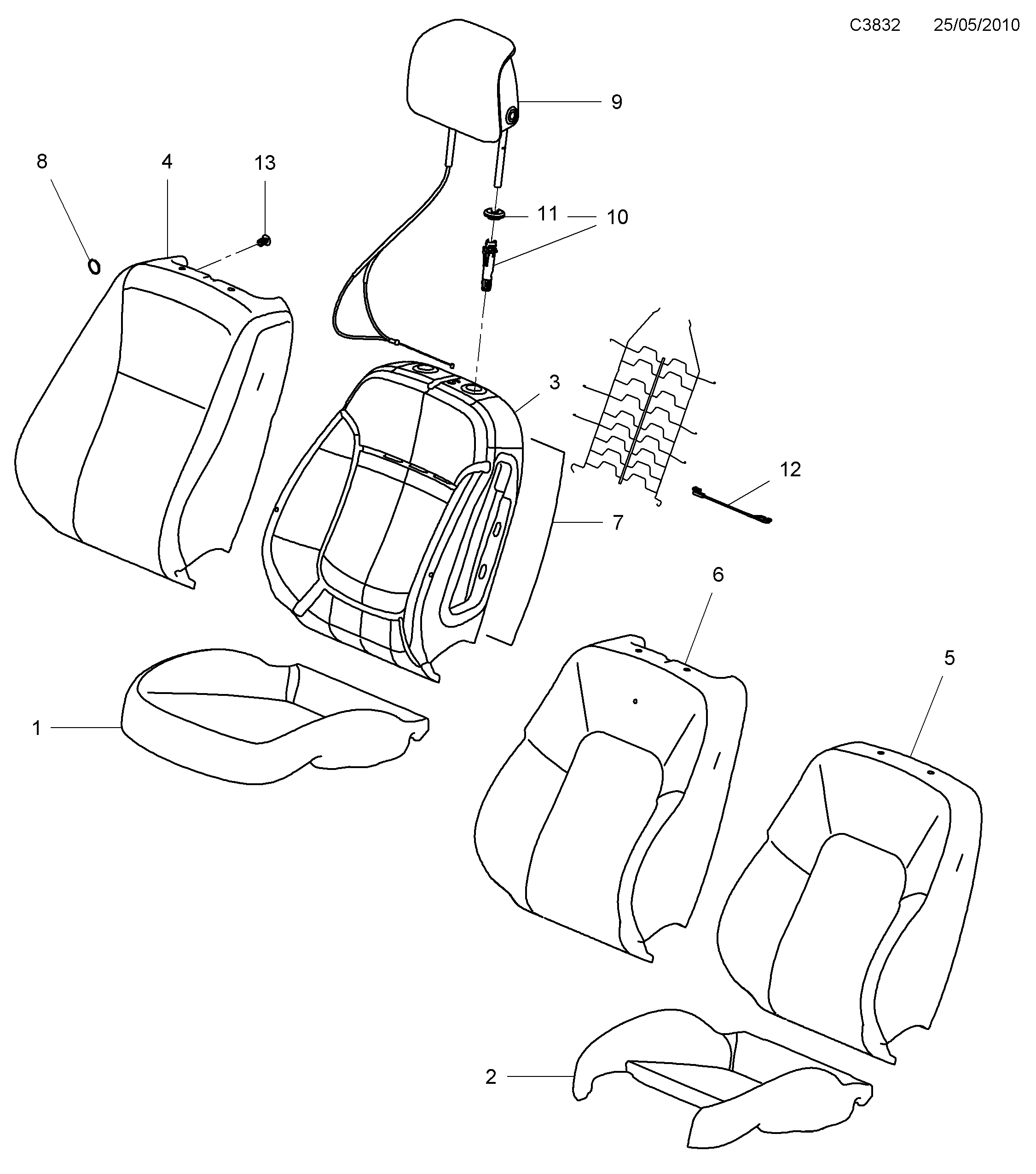

Group 8b Car body, internal, section 1200
| Pos | Article | Part No. |
|---|---|---|
| 1 | Seat cover | 12776957 |
| 1 | Seat cover | 12776958 |
| 3 | Back cover | 12823712 |
| 3 | Back cover | 12823713 |
| 7 | Back cover | 13299742 |
| 9 | Head restraint | 13307223 |
| 1 | Seat cover | 12777596 |
| 1 | Seat cover | 12777599 |
| 3 | Back cover | 12823720 (replaces 12777560) |
| 3 | Back cover | 12823723 (replaces 12777563) |
| 4 | Back cover | 12823740 (replaces 12781900) |
| 4 | Back cover | 12823743 (replaces 12781903) |
| 7 | Back cover | 13299754 |
| 7 | Back cover | 13299760 |
| 9 | Head restraint | 13307227 |
| 1 | Seat cover | 12777592 |
| 1 | Seat cover | 12777594 |
| 1 | Seat cover | 12826197 |
| 3 | Back cover | 12823716 (replaces 12777556) |
| 3 | Back cover | 12823718 (replaces 12777558) |
| 4 | Back cover | 12823736 (replaces 12781896) |
| 4 | Back cover | 12823738 (replaces 12781898) |
| 9 | Head restraint | 13328488 |
| 2 | Seat cover | 12777608 |
| 2 | Seat cover | 12823386 |
| 2 | Seat cover | 12777611 |
| 2 | Seat cover | 12823389 |
| 2 | Seat cover | 13287210 |
| 2 | Seat cover | 12823402 |
| 5 | Back cover | 12823726 (replaces 12777572) |
| 5 | Back cover | 12823729 (replaces 12777575) |
| 5 | Back cover | 12823780 (replaces 13325719) |
| 5 | Back cover | 12823783 (replaces 13325722) |
| 6 | Back cover | 12823746 (replaces 12781912) |
| 6 | Back cover | 12823749 (replaces 12781915) |
| 6 | Back cover | 12823786 (replaces 13325725) |
| 6 | Back cover | 12823789 (replaces 13325728) |
| 7 | Back cover | 13299757 |
| 2 | Seat cover | 12777614 |
| 2 | Seat cover | 12823392 |
| 2 | Seat cover | 12777617 |
| 2 | Seat cover | 12823394 |
| 2 | Seat cover | 13287202 |
| 2 | Seat cover | 12823397 |
| 5 | Back cover | 12823732 (replaces 12777578) |
| 5 | Back cover | 12823734 (replaces 12777581) |
| 6 | Back cover | 12823752 (replaces 12781918) |
| 6 | Back cover | 12823754 (replaces 12781921) |
| 7 | Back cover | 13299766 |
| 7 | Back cover | 13299768 |
| 9 | Head restraint | 13307230 |
| 1 | Seat cover | 12777597 |
| 1 | Seat cover | 12777600 |
| 3 | Back cover | 12823721 (replaces 12777561) |
| 3 | Back cover | 12823724 (replaces 12777564) |
| 4 | Back cover | 12823741 (replaces 12781901) |
| 4 | Back cover | 12823744 (replaces 12781904) |
| 7 | Back cover | 13299755 |
| 7 | Back cover | 13299761 |
| 9 | Head restraint | 13307228 |
| 1 | Seat cover | 12777593 |
| 1 | Seat cover | 12777595 |
| 1 | Seat cover | 12826198 |
| 3 | Back cover | 12823717 (replaces 12777557) |
| 3 | Back cover | 12823719 (replaces 12777559) |
| 4 | Back cover | 12823737 (replaces 12781897) |
| 4 | Back cover | 12823739 (replaces 12781899) |
| 9 | Head restraint | 13328489 |
| 2 | Seat cover | 12777609 |
| 2 | Seat cover | 12823387 |
| 2 | Seat cover | 12777612 |
| 2 | Seat cover | 12823390 |
| 2 | Seat cover | 13287211 |
| 2 | Seat cover | 12823403 |
| 5 | Back cover | 12823727 (replaces 12777573) |
| 5 | Back cover | 12823730 (replaces 12777576) |
| 5 | Back cover | 12823781 (replaces 13325720) |
| 5 | Back cover | 12823784 (replaces 13325723) |
| 6 | Back cover | 12823747 (replaces 12781913) |
| 6 | Back cover | 12823750 (replaces 12781916) |
| 6 | Back cover | 12823787 (replaces 13325726) |
| 6 | Back cover | 12823790 (replaces 13325729) |
| 7 | Back cover | 13299758 |
| 2 | Seat cover | 12777615 |
| 2 | Seat cover | 12823393 |
| 2 | Seat cover | 12777618 |
| 2 | Seat cover | 12823395 |
| 2 | Seat cover | 13287203 |
| 2 | Seat cover | 12823398 |
| 5 | Back cover | 12823733 (replaces 12777579) |
| 5 | Back cover | 12823735 (replaces 12777582) |
| 6 | Back cover | 12823753 (replaces 12781919) |
| 6 | Back cover | 12823755 (replaces 12781922) |
| 7 | Back cover | 13299767 |
| 7 | Back cover | 13299769 |
| 9 | Head restraint | 13307231 |
| 1 | Seat cover | 12777590 |
| 1 | Seat cover | 12777591 |
| 3 | Back cover | 12823714 (replaces 12777554) |
| 3 | Back cover | 12823715 (replaces 12777555) |
| 7 | Back cover | 13299743 |
| 9 | Head restraint | 13307224 |
| 2 | Seat cover | 12777610 |
| 2 | Seat cover | 12823388 |
| 2 | Seat cover | 12777613 |
| 2 | Seat cover | 12823391 |
| 2 | Seat cover | 13287212 |
| 2 | Seat cover | 12823404 |
| 5 | Back cover | 12823728 (replaces 12777574) |
| 5 | Back cover | 12823731 (replaces 12777577) |
| 5 | Back cover | 12823782 (replaces 13325721) |
| 5 | Back cover | 12823785 (replaces 13325724) |
| 6 | Back cover | 12823749 (replaces 12781914) |
| 6 | Back cover | 12823751 (replaces 12781917) |
| 6 | Back cover | 12823788 (replaces 13325727) |
| 6 | Back cover | 12823791 (replaces 13325730) |
| 7 | Back cover | 13299756 |
| 7 | Back cover | 13299759 |
| 7 | Back cover | 13299762 |
| 9 | Head restraint | 13307229 |
| 1 | Seat cover | 12777598 |
| 1 | Seat cover | 12777601 |
| 3 | Back cover | 12823722 (replaces 12777562) |
| 3 | Back cover | 12823725 (replaces 12777565) |
| 4 | Back cover | 12823742 (replaces 12781902) |
| 4 | Back cover | 12823745 (replaces 12781905) |
| 8 | Ring | 7085262 |
| 10 | Guide | 13292801 |
| 11 | Bezel | 13269719 |
| 10 | Guide | 13292802 |
| 11 | Bezel | 13269720 |
| 10 | Guide | 13305910 |
| 11 | Bezel | 13305927 |
| 12 | Retaining strap | 13309967 |
| 13 | Clip | 90363881 |
