Saab 9-5 (650) 2010-2011 Inflatable bag

Group 8b Car body, internal, section 100

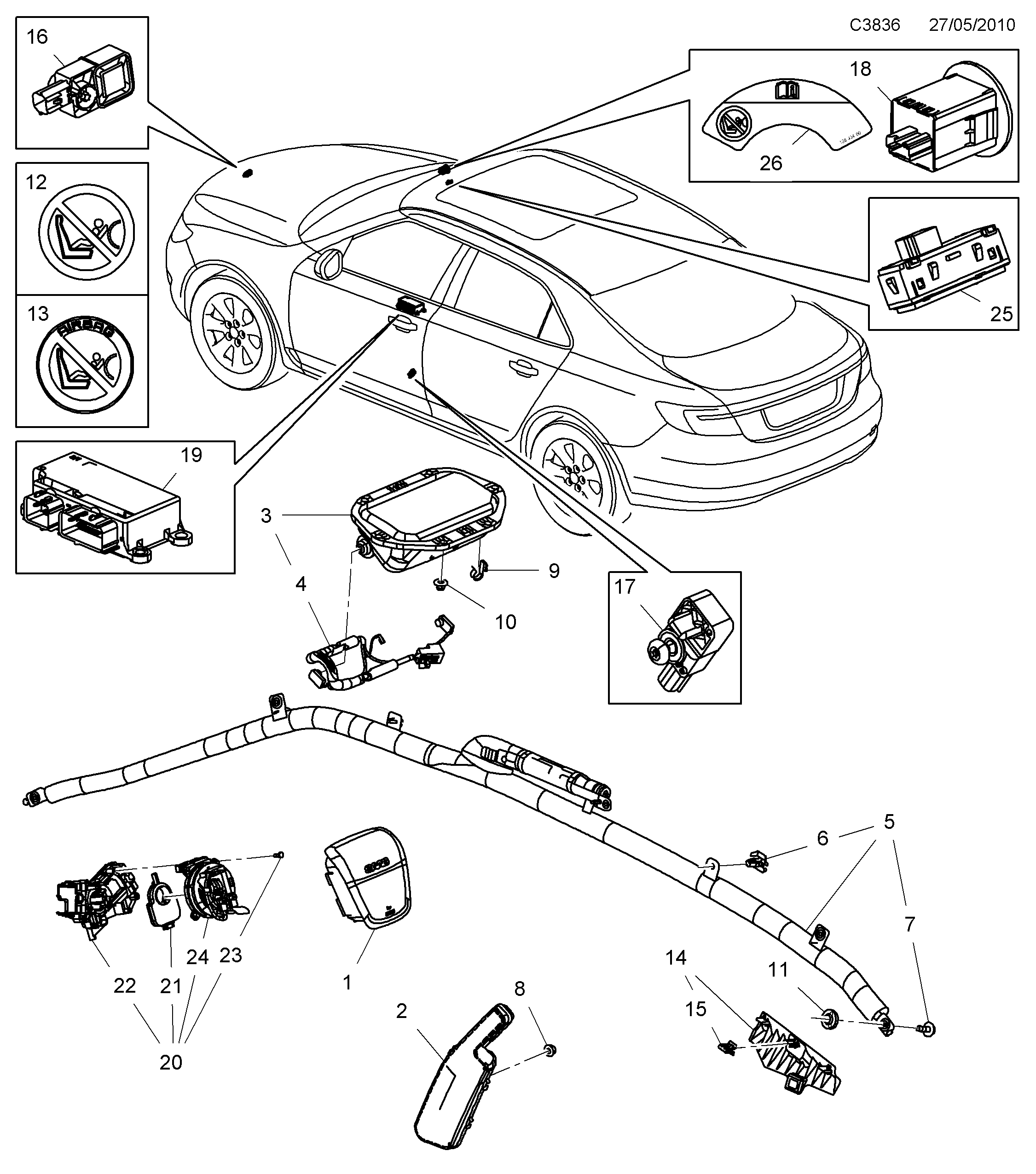

Saab 9-5 (650) Inflatable bag diagram

Pos	Article	Part No.
1	Air-bag	13284115
1	Air-bag	13284116
2	Air-bag	13223168
2	Air-bag	13223169
3	Air-bag	12848560
3	Air-bag	12848089
4	Cable harness	12783497
5	Air-bag	13223165
5	Air-bag	13223166
6	Retainer	12843692
7	Screw	11609585
8	Nut	11098671
9	Clip	12843816
10	Nut	11570142
11	Nut	25640395
12	Label	9229435
13	Label	90460211
14	Guide	12784741
14	Guide	12784742
15	Retainer	11588783
16	Sensor	13502340
17	Sensor	13502341
18	Switch	13268602
19	Control unit	13575448 (replaces 13505597)
19	Control unit	13578321
19	Control unit	13575450 (replaces 13505599)
19	Control unit	13578323
20	Contact unit	13501000
20	Contact unit	12824528
21	Sensor	25849366
22	Bracket	25799294
23	Screw	11569832
23	Screw	11569833
24	Contact unit	25947775
24	Contact unit	20817721
20	Contact unit	12824529 (replaces 13501001)
20	Contact unit	12824529
24	Contact unit	25881206
24	Contact unit	20817715
25	Display	20846675
25	Display	20846676
26	Label	12845400
