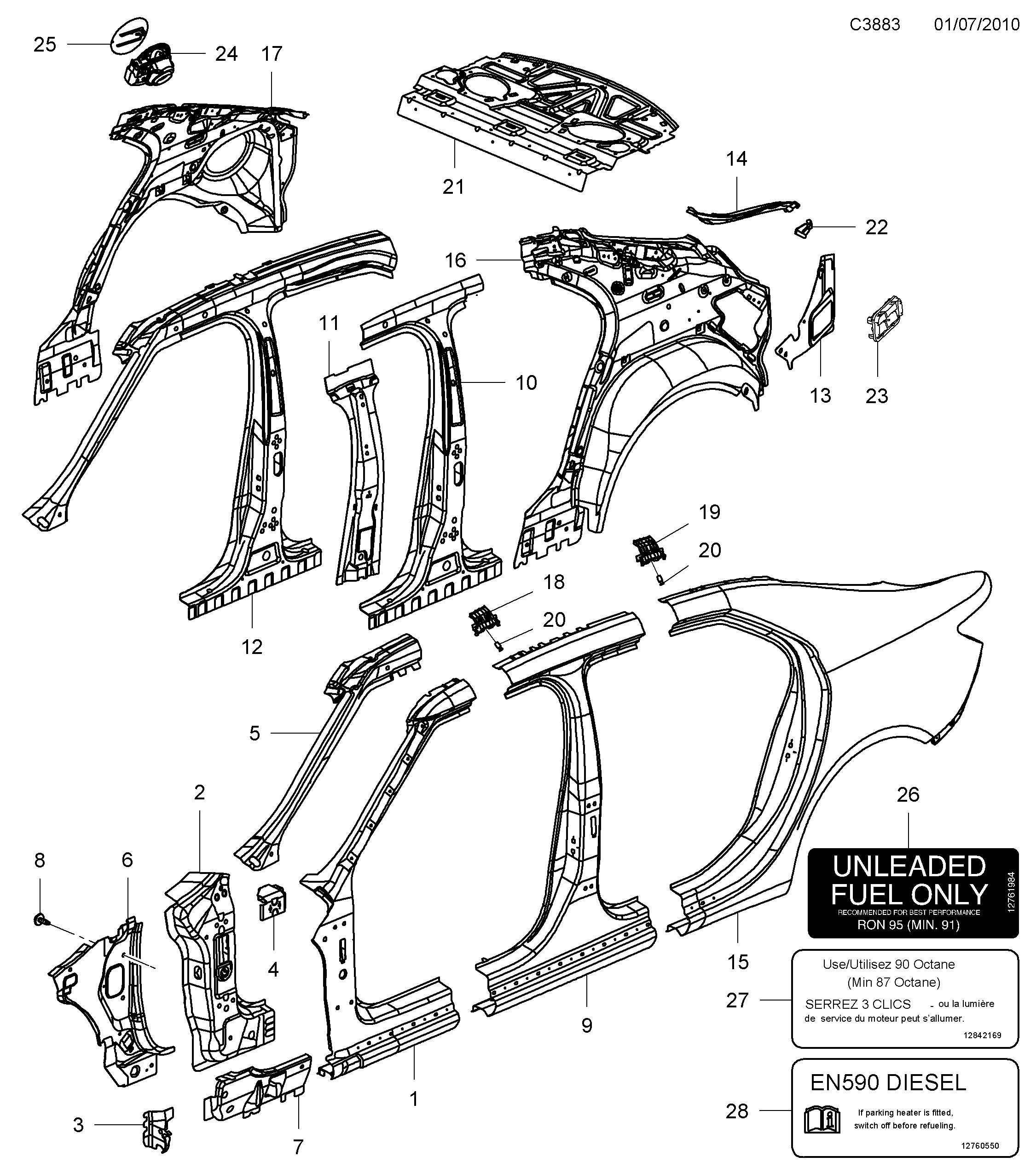

Group 8a Car body, external, section 500
| Pos | Article | Part No. |
|---|---|---|
| 1 | A-pillar | 12847568 |
| 1 | A-pillar | 12847569 |
| 2 | Reinforcement | 12823873 |
| 2 | Reinforcement | 12823872 |
| 3 | Filling piece | 12823879 |
| 3 | Filling piece | 12823878 |
| 4 | Reinforcement | 12823881 |
| 4 | Reinforcement | 12823880 |
| 5 | Reinforcement | 12823875 |
| 5 | Reinforcement | 12823874 |
| 6 | A-pillar | 12825642 (replaces 13300380) |
| 6 | A-pillar | 13300381 |
| 7 | Reinforcement | 12823877 |
| 7 | Reinforcement | 12823876 |
| 8 | Screw | 11519388 |
| 9 | B-pillar | 12847572 |
| 9 | B-pillar | 12847573 |
| 10 | Reinforcement | 13310112 |
| 10 | Reinforcement | 13310113 |
| 11 | B-pillar | 13341025 |
| 11 | B-pillar | 13341026 |
| 12 | Side panel | 12847580 |
| 12 | Side panel | 12847581 |
| 13 | Extension | 13341028 |
| 13 | Extension | 13341029 |
| 14 | Extension | 13341030 |
| 14 | Extension | 13341031 |
| 15 | Valance | 12847574 |
| 15 | Valance | 12847575 |
| 16 | Side panel | 12847582 |
| 17 | Side panel | 12847583 |
| 18 | Reinforcement | 13310259 |
| 18 | Reinforcement | 13310260 |
| 19 | Reinforcement | 13310261 |
| 19 | Reinforcement | 13310262 |
| 20 | Cap nut | 13237531 |
| 21 | Rear end panel | 13349252 |
| 22 | Support | 12844164 |
| 22 | Support | 12844165 |
| 23 | Grille | 13502040 |
| 24 | Housing | 13255584 |
| 25 | Tank hatch | 12823466 |
| 26 | Label | 12761984 |
| 26 | Label | 12762053 |
| 27 | Label | 12842170 |
| 27 | Label | 12842169 |
| 28 | Label | 12760550 |
