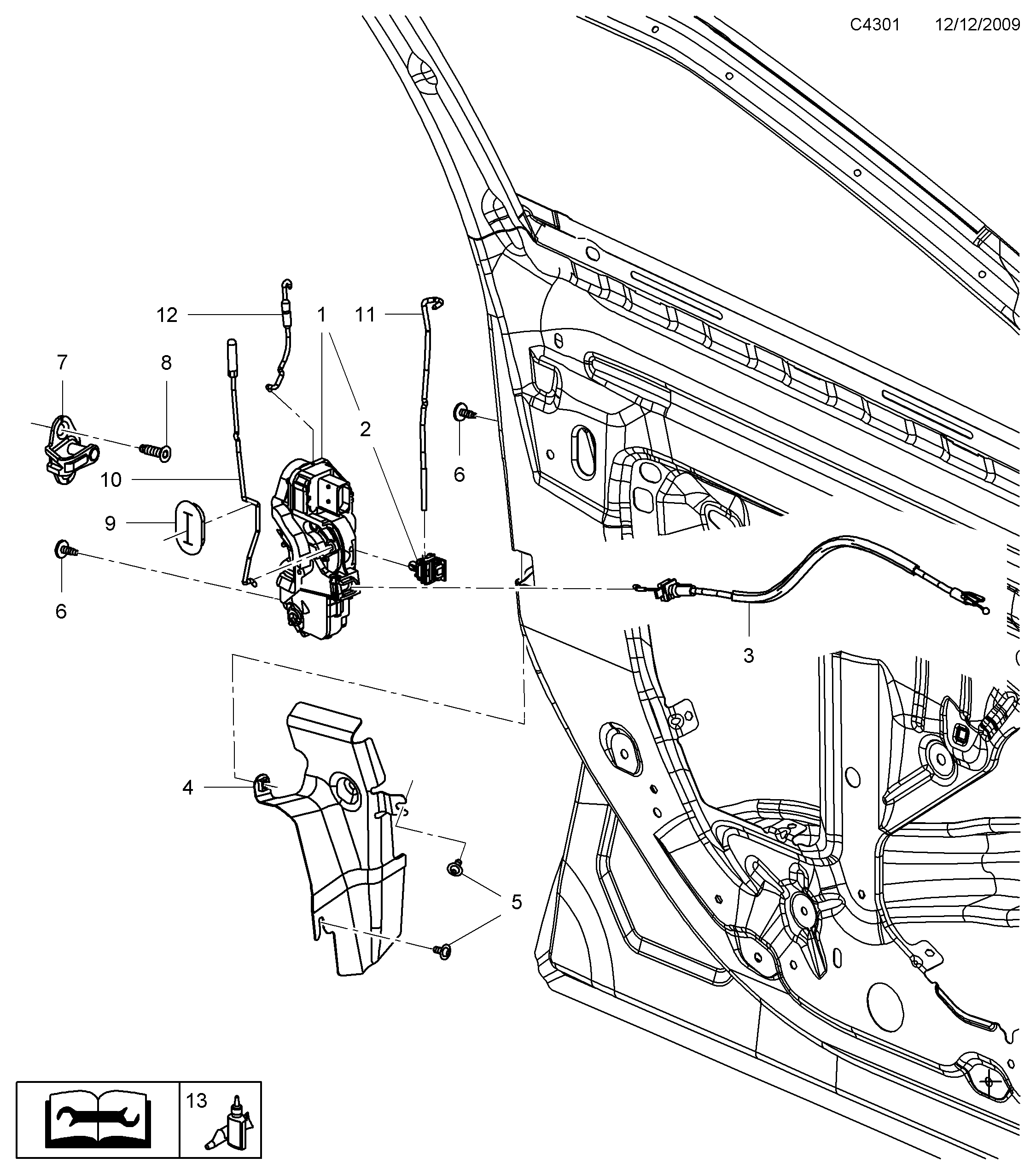

Group 8a Car body, external, section 2200
| Pos | Article | Part No. |
|---|---|---|
| 1 | Door lock | 13503738 |
| 1 | Door lock | 13579490 (replaces 13505246) |
| 1 | Door lock | 13503743 |
| 1 | Door lock | 13579496 (replaces 13505252) |
| 1 | Door lock | 13503746 |
| 1 | Door lock | 13579491 (replaces 13505247) |
| 1 | Door lock | 13503744 |
| 1 | Door lock | 13505245 |
| 1 | Door lock | 13503739 |
| 1 | Door lock | 13579492 (replaces 13505248) |
| 1 | Door lock | 13503740 |
| 1 | Door lock | 13579493 (replaces 13505249) |
| 2 | Clip | 13579565 |
| 3 | Bowden cable | 13249520 |
| 4 | Cover | 13287400 |
| 4 | Cover | 13287401 |
| 5 | Screw | 13291997 |
| 6 | Screw | 11570218 |
| 7 | Striker | 13503000 |
| 8 | Screw | 11518445 |
| 9 | Grommet | 25887975 |
| 10 | Control rod | 13301709 |
| 10 | Control rod | 13301710 |
| 10 | Control rod | 13301711 |
| 10 | Control rod | 13301712 |
| 11 | Control rod | 12821883 |
| 11 | Control rod | 12821884 |
| 12 | Control rod | 12825324 |
| 12 | Control rod | 12825325 |
| 13 | Silicon grease | 90167353 |
