Saab 9-5 (650) 2010-2011 Front fender Wheel arch liner

Group 8a Car body, external, section 1200

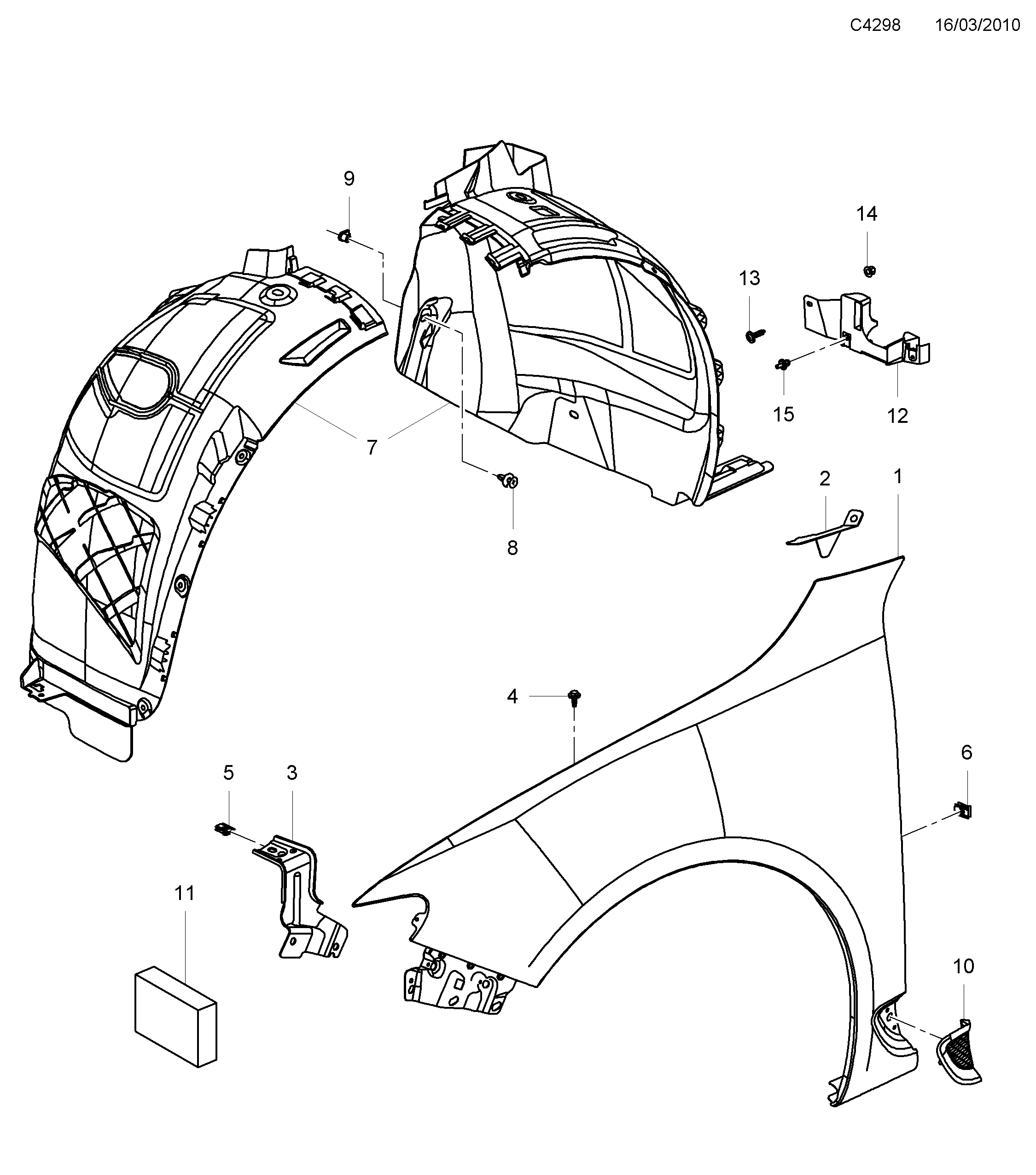

Saab 9-5 (650) Front fender Wheel arch liner diagram
PosArticlePart No.
1Fender13310314
1Fender13310315
2Bracket12776684
2Bracket12776685
3Bracket13310448
3Bracket13310449
4Screw11519382
5Nut11570819
6Nut13306506
7Wheel arch liner12776634
7Wheel arch liner12776635
8Rivet11571109
9Nut24449408
10Plate12779338
10Plate12779339
11Insulation13293549
12Reinforcement12822820
12Reinforcement12822821
Protection12822824
13Screw90561305
14Nut90413589
15Rivet90087290
