Saab 9-5 (650) 2010-2011 Sensors

Group 7 Suspension system, section 5500

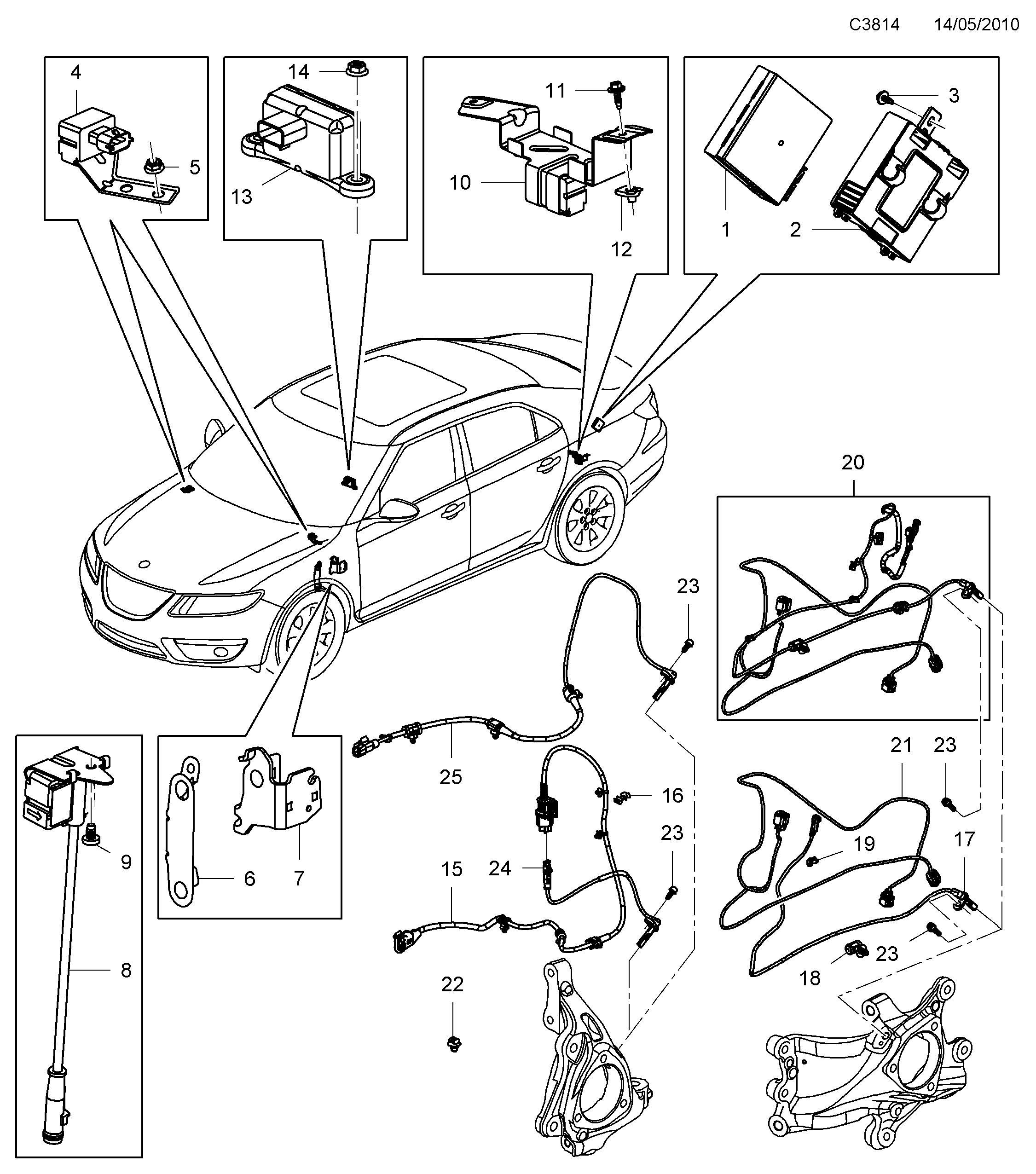

Saab 9-5 (650) Sensors diagram

Pos	Article	Part No.
1	Control unit	13338933 (replaces 13330272)
1	Control unit	13338933
2	Bracket	13260542
3	Screw	11519382
4	Sensor	12841592
4	Sensor	12841591
5	Nut	11514516
6	Bracket	13292024
7	Bracket	13250527
7	Bracket	13250526
8	Sensor	12841594
8	Sensor	13310290
9	Screw	11101401
10	Sensor	12841593
11	Screw	11589011
12	Nut	11516397
13	Sensor	13575610
15	Cable harness	13238634
15	Cable harness	13238636
16	Bracket	24417149
17	Sensor	12841559
17	Sensor	13317205
17	Sensor	13323030
18	Clip	12783115
19	Tie strap	13137556
20	Cable harness	12824062
21	Cable harness	13228414
21	Cable harness	12824063
22	Clip	55562517
23	Screw	11609650
24	Sensor	12842287
24	Sensor	12841760
25	Sensor	12848538
25	Sensor	12847978
