Saab 9-5 (650) 2010-2011 Suspension arm H arm, rear suspension

Group 7 Suspension system, section 3500

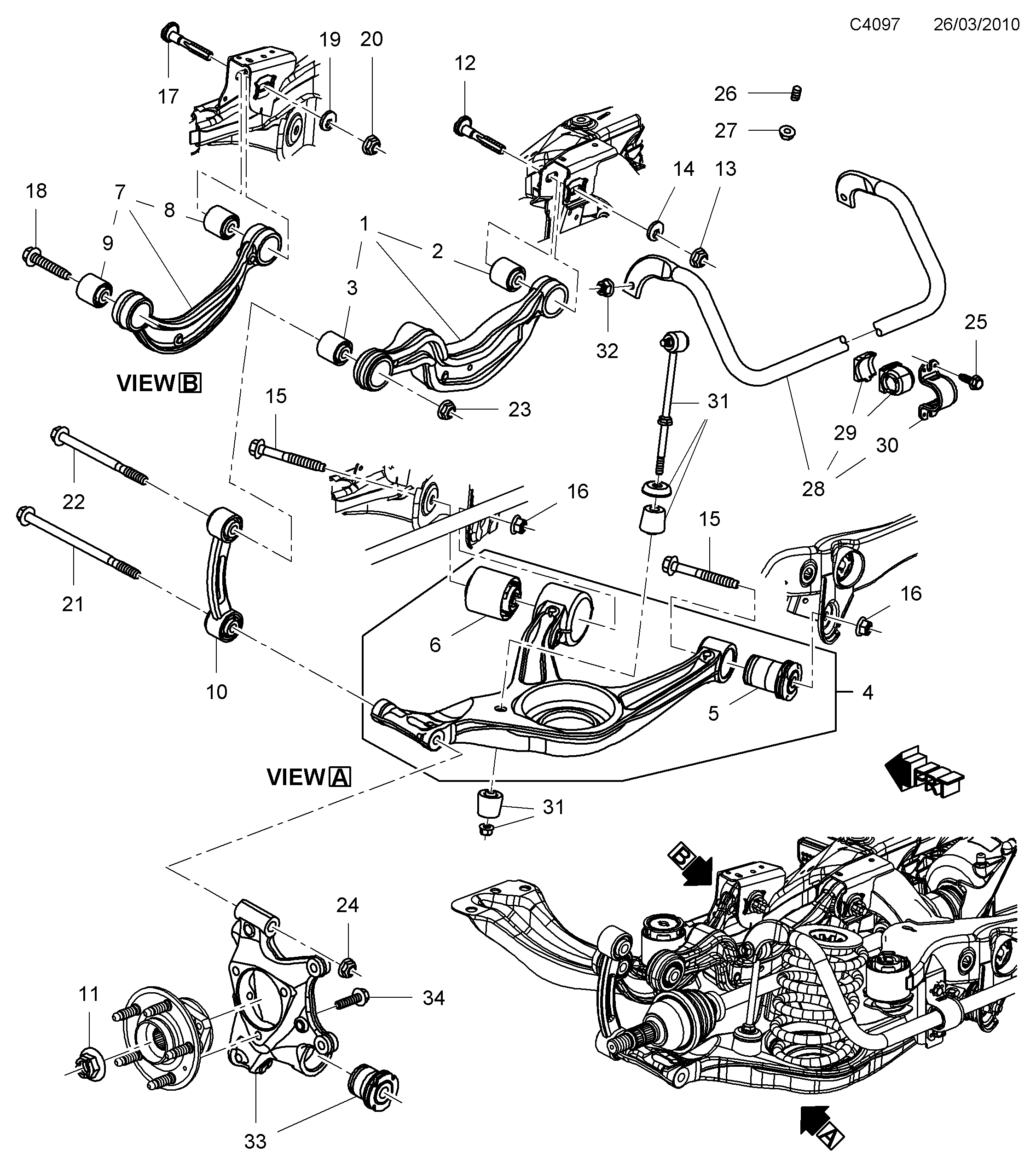

Saab 9-5 (650) Suspension arm H arm, rear suspension diagram

Pos	Article	Part No.
1	Control arm, upper	13230593
2	Bushing	13239621
3	Bushing	13257313
1	Control arm, upper	13230592
4	Control arm, lower	13230634
5	Bushing	13239619
6	Bushing	13239620
4	Control arm, lower	13230633
7	Link rod	13230603
8	Bushing	13239622
9	Bushing	13239623
7	Link rod	13230602
10	Link	13233559
11	Hexagon nut	13217120
12	Bolt	13251096
13	Lock nut	24433051
14	Washer	13251097
15	Screw	11561301
16	Nut	11516382
18	Screw	11589356
21	Screw	13260553
22	Bolt	13260550
25	Screw	11588723
26	Insert	13183922
27	Hexagon nut	11514596
28	Stabilizer bar	20959230
28	Stabilizer bar	20959231
29	Insulation	13281791
30	Clip	13281787
31	Link rod	13281793
32	Nut	11900441
33	Bracket	13233561
33	Bracket	13233560
34	Screw	11570765
