Saab 9-5 (650) 2010-2011 Suspension arm and crossmember 4-link, rear suspension

Group 7 Suspension system, section 3000

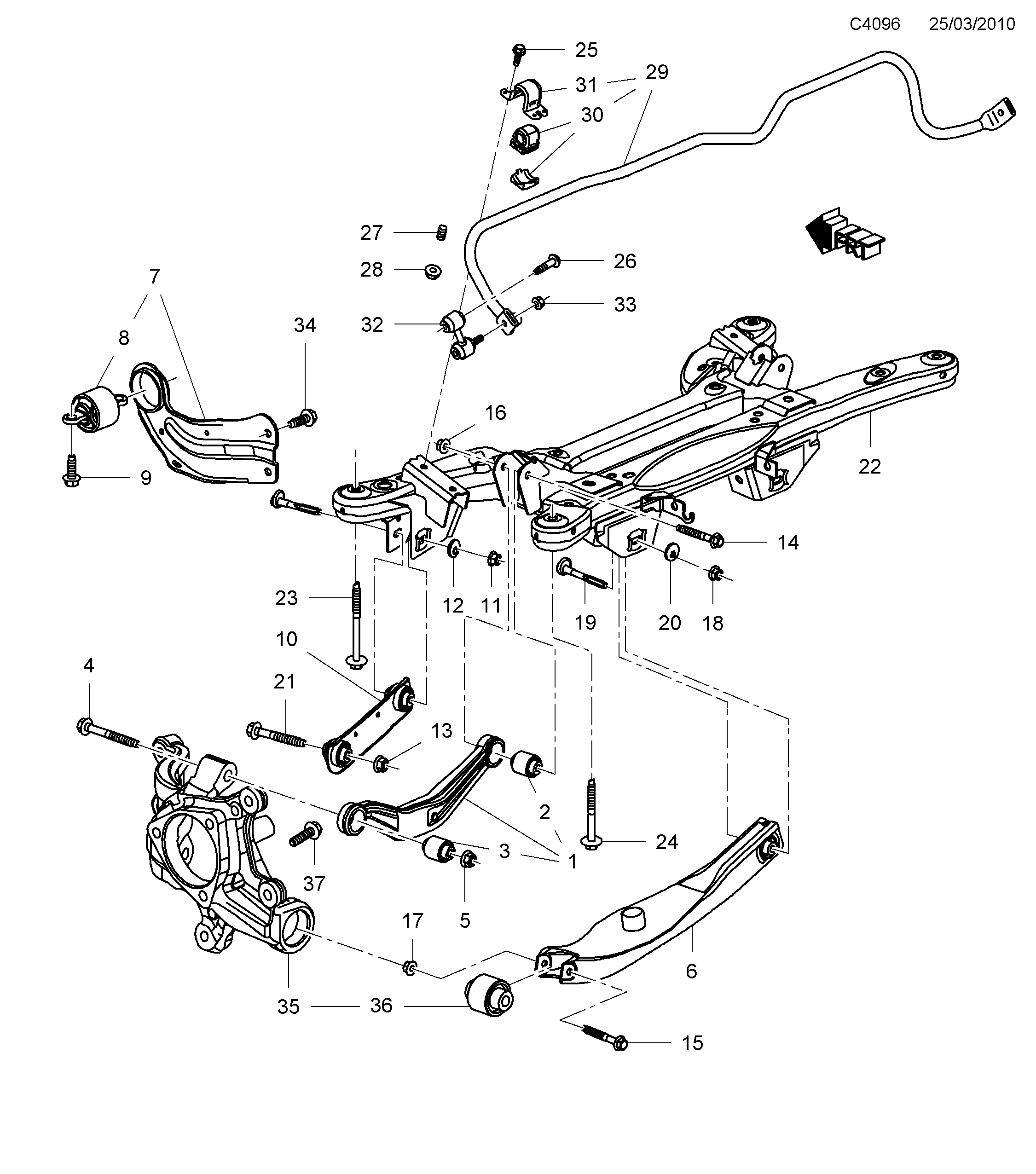

Saab 9-5 (650) Suspension arm and crossmember 4-link, rear suspension diagram

Pos	Article	Part No.
1	Control arm, upper	13318345
2	Bushing	13219170
3	Bushing	13318343
1	Control arm, upper	13318344
4	Torx screw	12767679
5	Nut	11900443
6	Control arm, lower	13219164
7	Control arm, right	13219146
8	Bushing	13219149
7	Control arm, left	13219145
9	Bolt	11589351
10	Control arm, lower	13219171
11	Nut	11094488
12	Washer	13219183
13	Nut	11516382
14	Hexagon screw	11102431
15	Hexagon screw	11102411
19	Bolt	13219184
21	Bolt	11561300
22	Support	13336906
23	Screw	11570928
24	Screw	11570929
25	Screw	11588723
26	Hexagon screw	11588744
27	Insert	13183922
28	Hexagon nut	11514596
29	Stabilizer bar	13281796
30	Bushing	13289138
31	Brace	13281786
29	Stabilizer bar	13281795
30	Insulation	13281790
32	Link rod	13281792
33	Nut	11900441
35	Bracket	13237936
35	Bracket	13219216
36	Bushing	13239223
37	Screw	11570765
