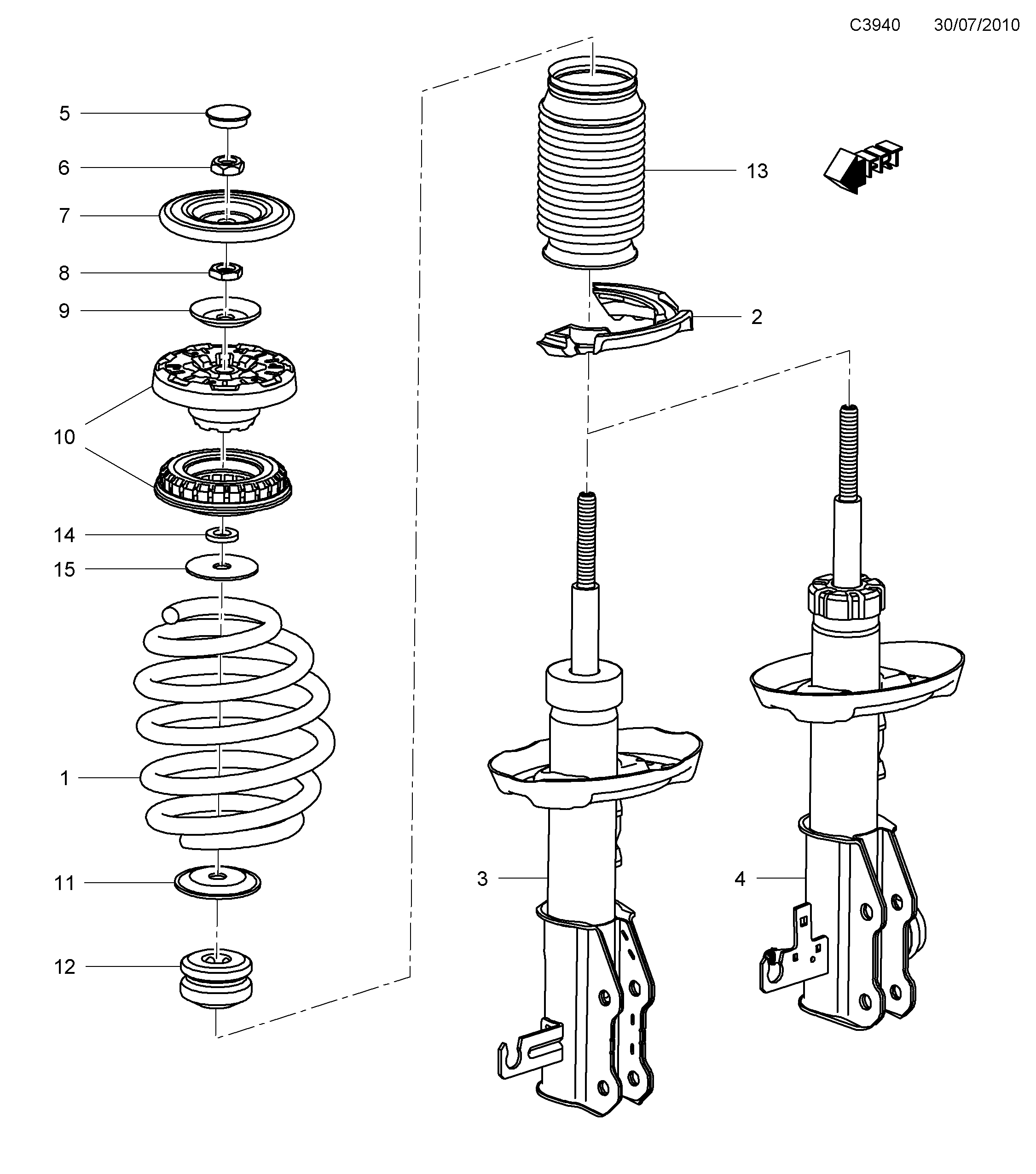

Group 7 Suspension system, section 2500
| Pos | Article | Part No. |
|---|---|---|
| 1 | Front spring | 12822724 |
| 1 | Front spring | 12822722 |
| 1 | Front spring | 12822720 |
| 1 | Front spring | 12822718 |
| 1 | Front spring | 12822723 |
| 1 | Front spring | 12822721 |
| 1 | Front spring | 12822725 |
| 1 | Front spring | 12822719 |
| 1 | Front spring | 12822727 |
| 1 | Front spring | 12822726 |
| 1 | Front spring | 12824050 |
| 1 | Front spring | 12824049 |
| 1 | Front spring | 12824051 |
| 1 | Front spring | 12824052 |
| 2 | Insulator | 13219067 |
| 3 | Spring strut | 13333018 |
| 3 | Spring strut | 13333017 |
| 3 | Spring strut | 12822731 |
| 3 | Spring strut | 12822730 |
| 3 | Spring strut | 12822733 |
| 3 | Spring strut | 12822732 |
| 4 | Spring strut | 13312340 |
| 4 | Spring strut | 13312339 |
| 3 | Spring strut | 12824053 |
| 3 | Spring strut | 12824054 |
| 4 | Spring strut | 13312344 |
| 4 | Spring strut | 13312343 |
| 3 | Spring strut | 12822735 |
| 3 | Spring strut | 12822734 |
| 4 | Spring strut | 12822737 |
| 4 | Spring strut | 12822736 |
| 3 | Spring strut | 12822740 |
| 3 | Spring strut | 12822739 |
| 4 | Spring strut | 13312346 |
| 4 | Spring strut | 13312345 |
| 3 | Spring strut | 12822818 |
| 4 | Spring strut | 13312348 |
| 4 | Spring strut | 13312347 |
| 3 | Spring strut | 13333032 |
| 3 | Spring strut | 13333031 |
| 5 | Cover | 12824846 |
| 6 | Hexagon nut | 11569638 |
| 7 | Retainer | 25967006 |
| 8 | Nut | 11569637 |
| 9 | Washer | 12825313 |
| 10 | Support bearing | 20904238 |
| 11 | Retainer | 13502407 |
| 12 | Hollow bumper | 13219136 |
| 13 | Flexible hose | 13243574 |
| 14 | Washer | 12825573 |
| 15 | Washer | 12822729 |
