Saab 9-5 (650) 2010-2011 Hub and knuckle

Group 7 Suspension system, section 2000

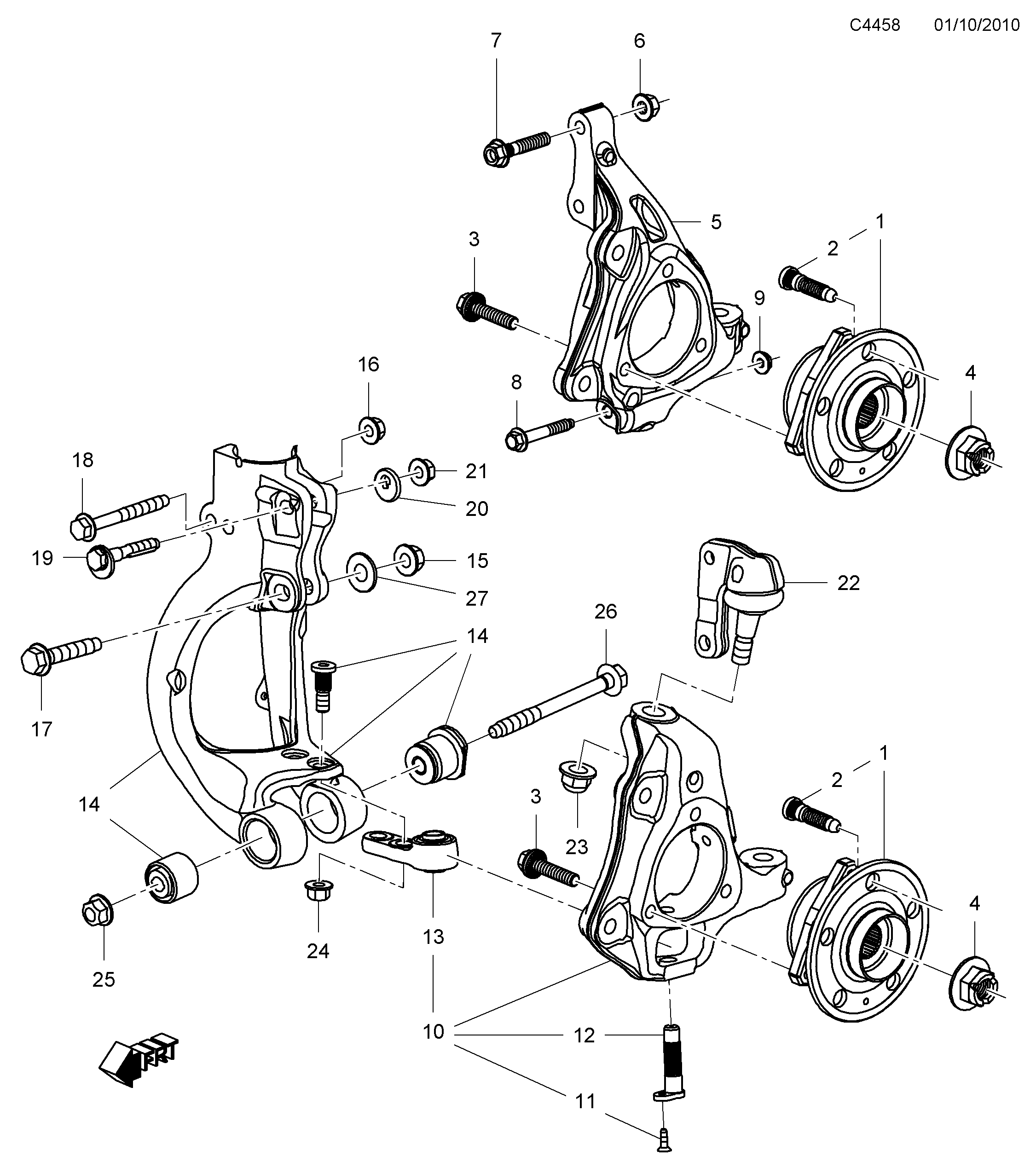

Saab 9-5 (650) Hub and knuckle diagram

Pos	Article	Part No.
1	Wheel hub	13502785
2	Screw	11588811
3	Screw	11570675
4	Hexagon nut	13217120
5	Steering knuckle	13219081
5	Steering knuckle	13219080
6	Nut	11094488
7	Hexagon screw	24430521
8	Hexagon screw	24461287
9	Nut	90576769
10	Steering knuckle	13347469
10	Steering knuckle	13347468
11	Screw	11570339
12	Bolt	13239685
13	Bushing	13230777
14	Yoke	13331831
14	Yoke	13331829
14	Yoke	13331830
14	Yoke	13331828
15	Nut	11516382
16	Nut	11516078
17	Screw	11589356
18	Hexagon screw	11589281
19	Screw	13258055
20	Washer	13313094
22	Ball stud	13258056
23	Nut	11609284
26	Screw	13258478
27	Washer	92153204
