Saab 9-5 (650) 2010-2011 Axle crossmember With Front Wheel Drive (FWD)

Group 7 Suspension system, section 1000

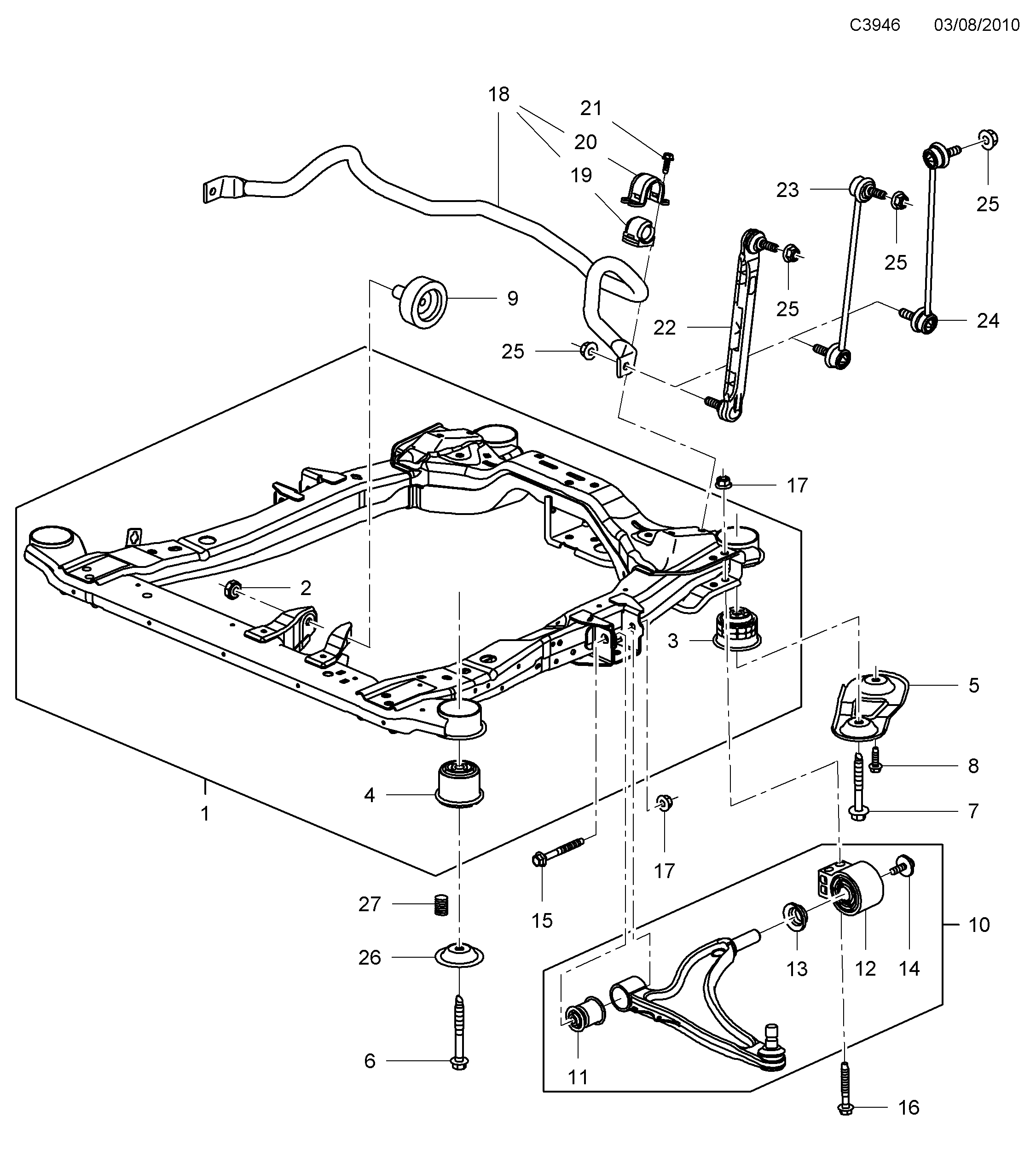

Saab 9-5 (650) Axle crossmember With Front Wheel Drive (FWD) diagram

Pos	Article	Part No.
1	Front Axle Casing	12848400
2	Nut	11570705
3	Insulation	13318428
4	Insulation	13280217
5	Support	13235088
5	Support	13235087
6	Screw	11570926
7	Screw	11570927
8	Hexagon screw	11588739
9	Vibration damper	13310150
10	Control arm, right	13360020
10	Control arm, right	13360028
10	Control arm, left	13360019
10	Control arm, left	13360027
11	Bushing	13318894
12	Damper bushing	13280216
13	Sleeve	13278806
14	Screw	11610941
15	Screw	11609608
16	Screw	11589279
17	Nut	11609282
18	Stabilizer bar	20932137
18	Stabilizer bar	13230517
18	Stabilizer bar	13230516
19	Insulation	13281781
20	Clamp	13281780
18	Stabilizer bar	20932136
18	Stabilizer bar	13230520
19	Insulation	13281782
21	Screw	11588723
22	Link rod	13219141
23	Link rod	13258052
24	Link rod	13282833
26	Retainer	13250388
27	Thread insert	11087031
