Saab 9-5 (650) 2010-2011 Hydraulic pump and hoses

Group 6 Front wheel suspension, section 4200

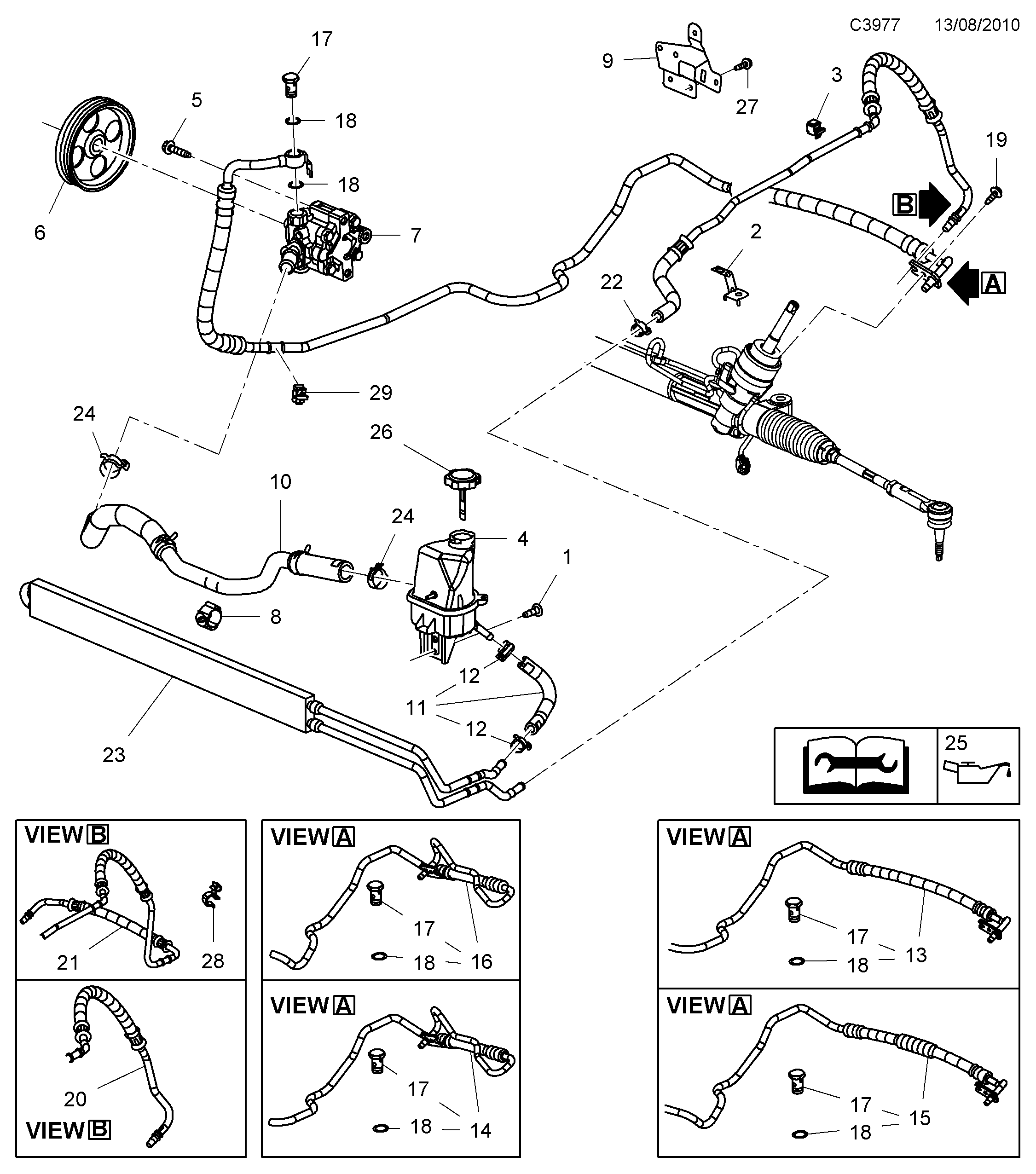

Saab 9-5 (650) Hydraulic pump and hoses diagram

Pos	Article	Part No.
1	Screw	9202831
2	Bracket	13259113
3	Clip	13259115
4	Reservoir	13278247
4	Reservoir	22755964
5	Hexagon screw	11588726
6	Pulley	55563329
7	Pump, hydraulic oil	13309339
8	Clip	13288058
9	Bracket	13281438
10	Hose	13230350
11	Hose	13281432
12	Hose clamp	13307373
13	Pressure hose	13311243
13	Pressure hose	20957815
14	Pressure hose	13311244
14	Pressure hose	20957816
15	Pressure hose	20957813
16	Pressure hose	20957814
17	Hollow screw	13280036
18	Seal	13305013
19	Screw	11519383
20	Return line	13230362
21	Return line	13230363
23	Pipe	13286331
24	Hose clamp	90572594
25	Transmission oil	93165414
25	Transmission oil	93165483
26	Cap	13285839
26	Cap	22755965
27	Screw	11588712
28	Clip	13330717
29	Clip	11611350
