Saab 9-5 (650) 2010-2011 Hydraulic pump and hoses

Group 6 Front wheel suspension, section 4100

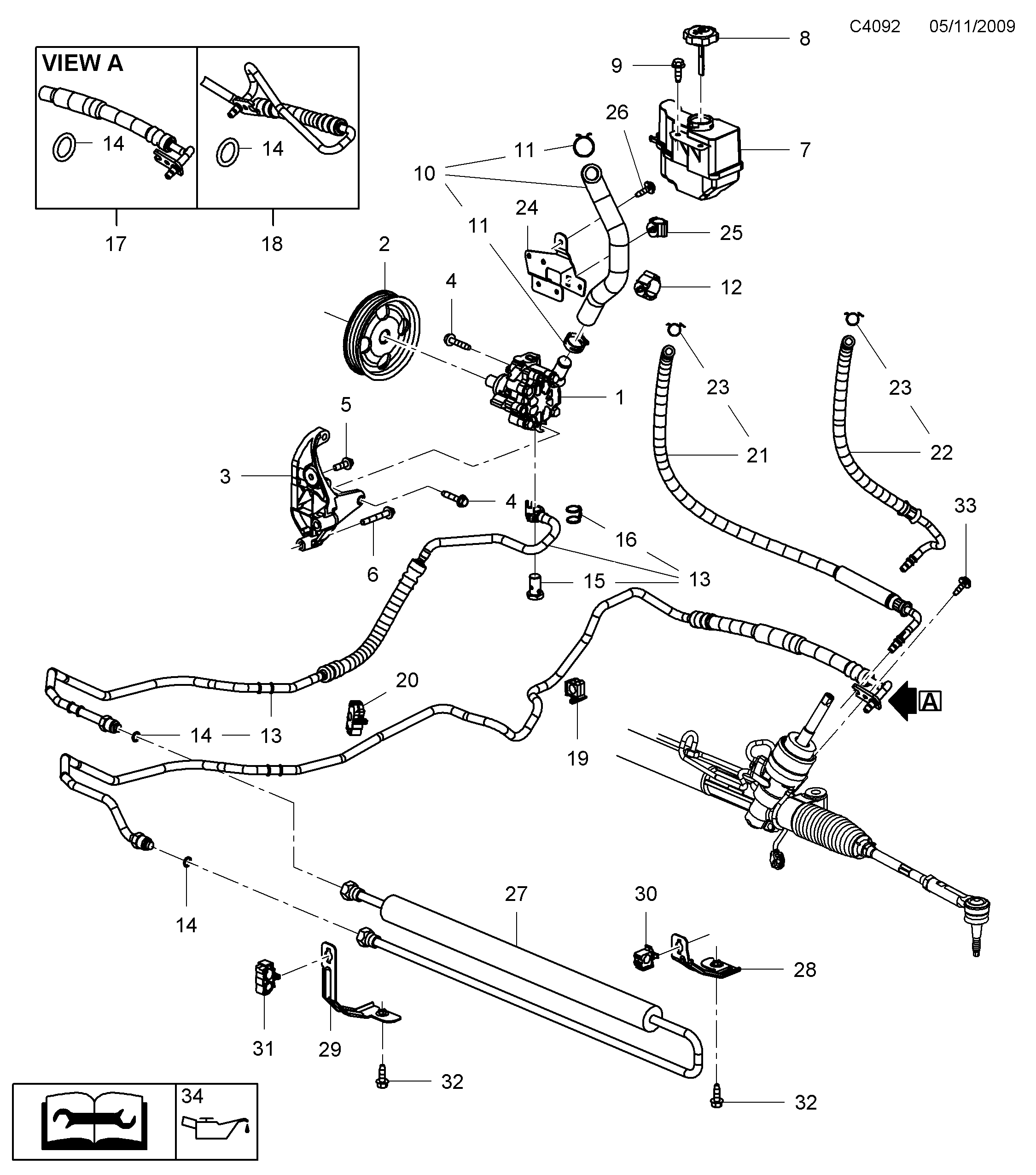

Saab 9-5 (650) Hydraulic pump and hoses diagram

Pos	Article	Part No.
1	Pump, hydraulic oil	13309340
2	Pulley	12764175
3	Bracket	55563614
4	Hexagon screw	11588726
5	Screw	11093612
6	Screw	11104361
7	Reservoir	13278248
8	Cap	13274129
9	Screw	11588712
10	Hose	13219371
11	Hose clamp	90572594
12	Clip	13259117
13	Pressure hose	13280137
13	Pressure hose	13280137 (replaces 13331923)
15	Hollow screw	13280036
16	Seal	13305013
17	Pressure hose	13280140
18	Pressure hose	13280141
14	Sealing ring	13280138
19	Clip	13245894
20	Clip	13256853
21	Return line	13232696
23	Hose clamp	13307373
22	Return line	13230361
24	Bracket	13281438
25	Clip	13259116
27	Oil cooler	13280139
28	Bracket	13245892
29	Bracket	13245893
33	Screw	11519383
34	Transmission oil	93165414
34	Transmission oil	93165483
