Saab 9-5 (650) 2010-2011 Hydraulic pump and hoses

Group 6 Front wheel suspension, section 4000

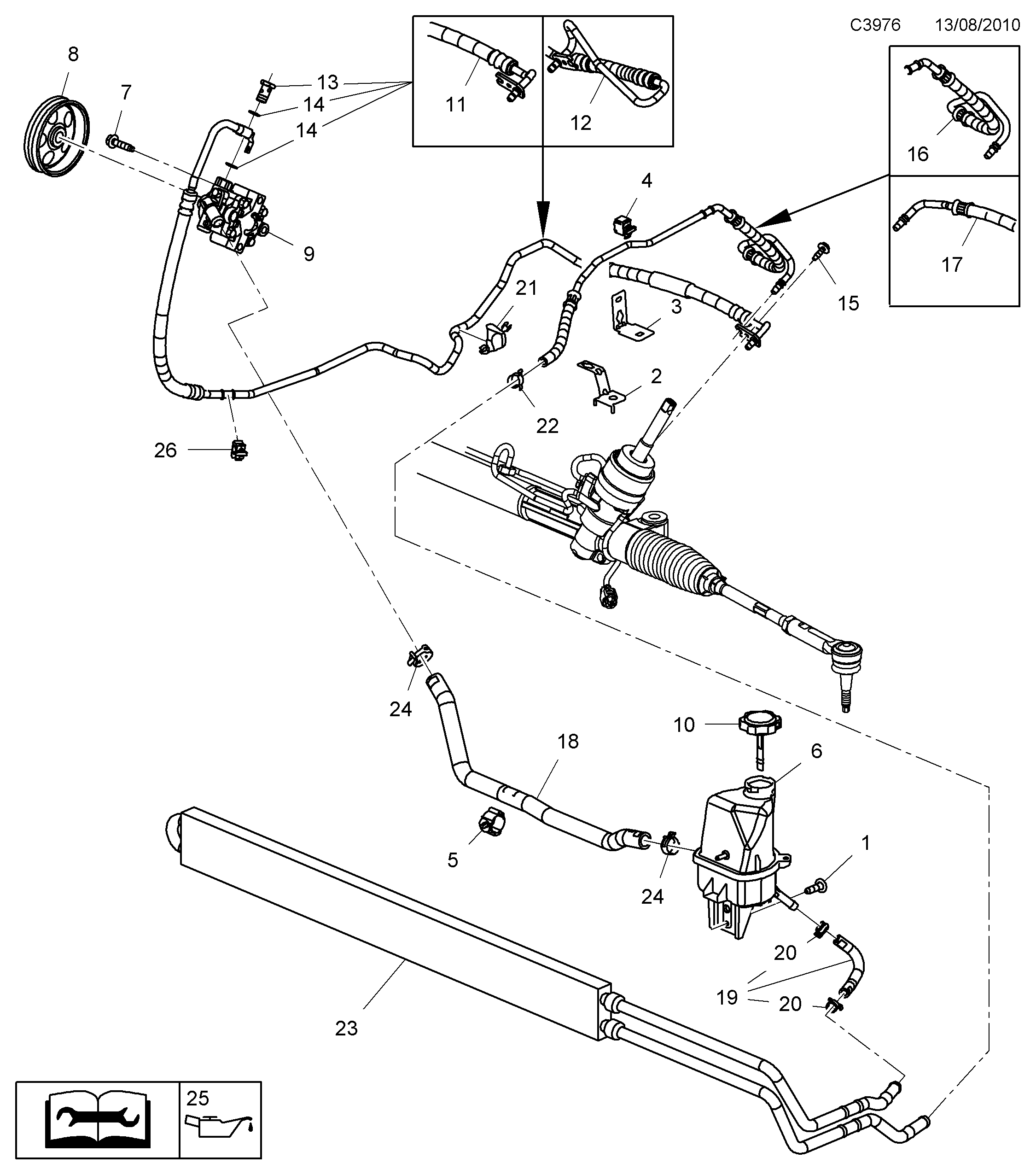

Saab 9-5 (650) Hydraulic pump and hoses diagram

Pos	Article	Part No.
1	Screw	9202831
2	Bracket	13259113
3	Bracket	13259114
4	Clip	13259115
5	Clip	13259117
6	Reservoir	13278247
6	Reservoir	22755964
7	Hexagon screw	11588725
8	Pulley	12605176
9	Pump, hydraulic oil	13309277
10	Cap	13285839
10	Cap	22755965
11	Pressure hose	13311248
11	Pressure hose	20957819
12	Pressure hose	13311246
12	Pressure hose	20957818
13	Hollow screw	13280036
14	Seal	13305013
15	Screw	11519383
16	Return line	13230358
17	Return line	13230360
18	Hose	13232703
19	Hose	13281432
20	Hose clamp	13307373
21	Heat shield	13306348
23	Pipe	13286331
24	Hose clamp	90572594
25	Transmission oil	93165414
25	Transmission oil	93165483
26	Clip	11611350
