Saab 9-5 (650) 2011-2011 Hydraulic pump and hoses

Group 6 Front wheel suspension, section 3900

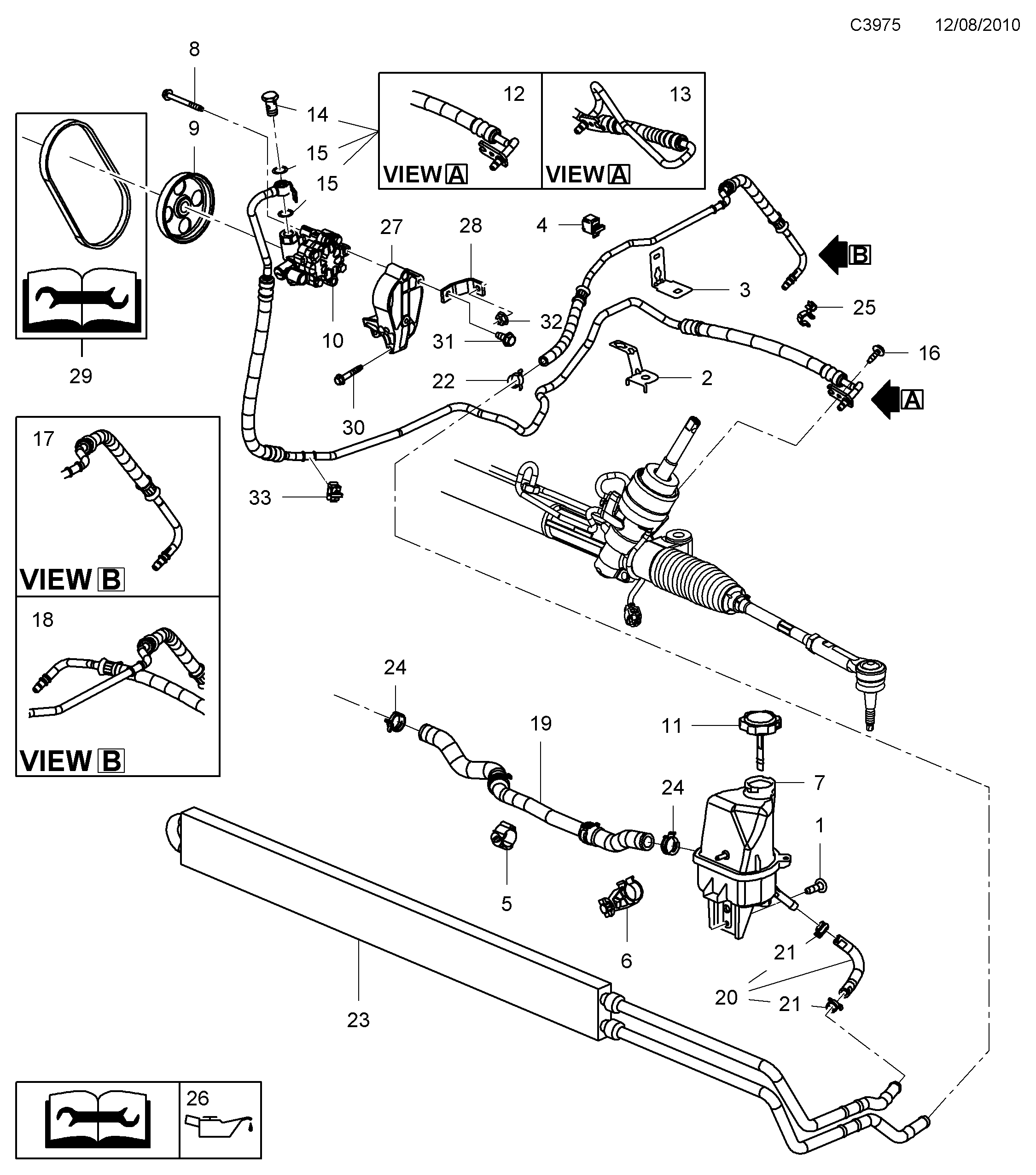

Saab 9-5 (650) Hydraulic pump and hoses diagram

Pos	Article	Part No.
1	Screw	9202831
2	Bracket	13259113
3	Bracket	13259114
4	Clip	13259115
5	Clip	13288058
6	Clip	13310359
7	Reservoir	22755964
8	Hexagon screw	11588733
9	Pulley	96837811
10	Pump, hydraulic oil	13258067
11	Cap	22755965
12	Pressure hose	20957805
13	Pressure hose	20957806
14	Hollow screw	13280036
15	Seal	13305013
16	Screw	11519383
17	Return line	13232697
18	Return line	13232699
19	Hose	13219369
20	Hose	13281432
21	Hose clamp	13307373
23	Pipe	13286331
24	Hose clamp	90572594
25	Clip	13330717
26	Transmission oil	93165414
26	Transmission oil	93165483
27	Bracket	55567295
28	Brace	55564139
29	Belt	55564676
30	Hexagon screw	11588728
31	Hexagon screw	11588722
32	Hexagon nut	11514596
33	Clip	11611350
