Saab 9-5 (650) 2010-2011 Pedal box

Group 5 Brakes, section 6000

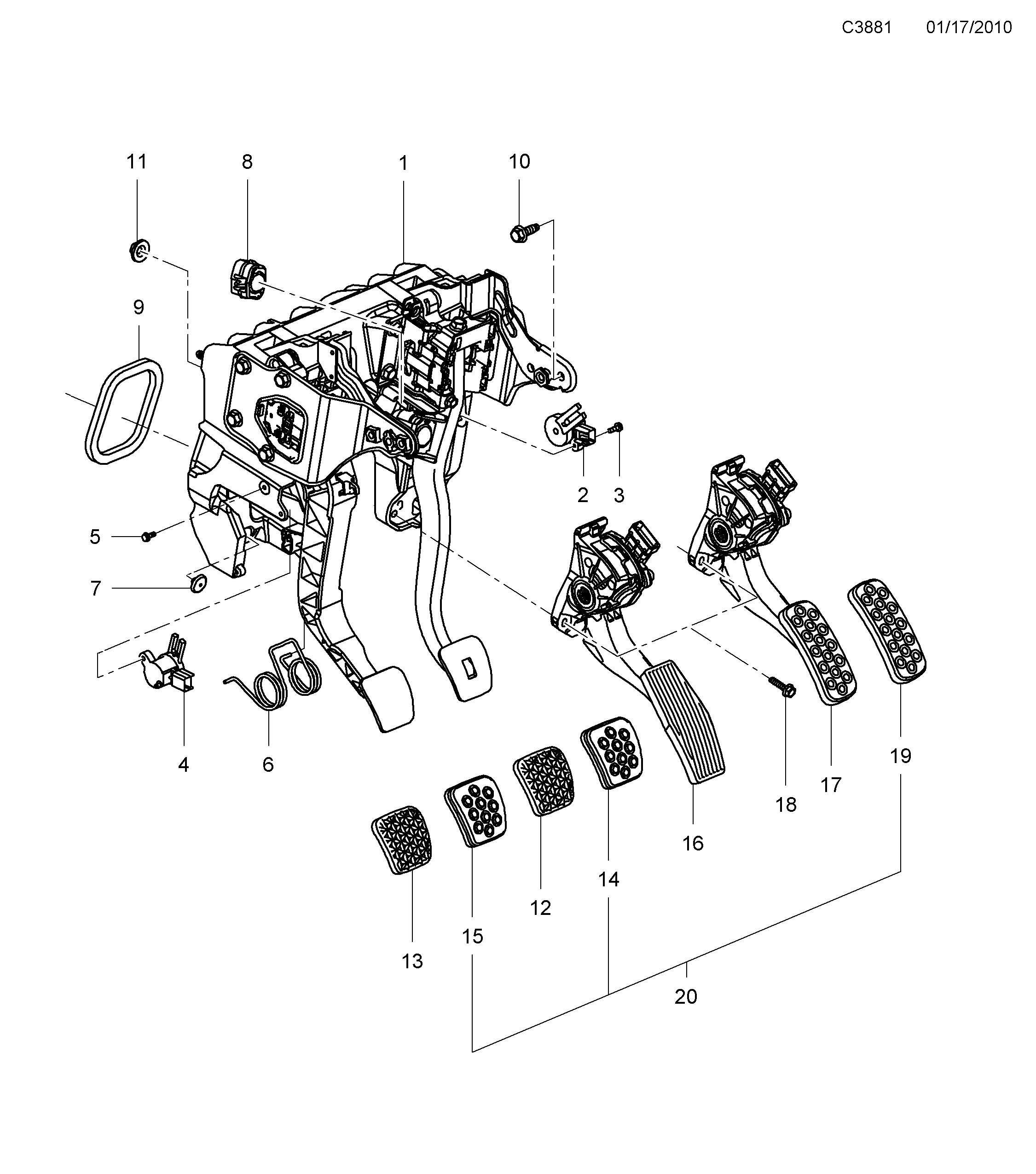

Saab 9-5 (650) Pedal box diagram

Pos	Article	Part No.
1	Pedal arrangement	13331945
2	Sensor	10366474
3	Bolt	13281351
4	Pedel contact	22670896
6	Return spring	13281357
7	Buffer	13281364
8	Clamp	13281352
9	Sound absorber	13281350
10	Screw	13285433
11	Nut	11514519
12	Pad	13281353
13	Pad	13281359
14	Pad	13281354
15	Pad	13281360
16	Accelerator pedal	13237352
17	Accelerator pedal	13272900
18	Bolt	13281365
19	Pad	13281370
20	Pedal pad	12825785
