Saab 9-5 (650) 2010-2011 Brake lines Front

Group 5 Brakes, section 5000

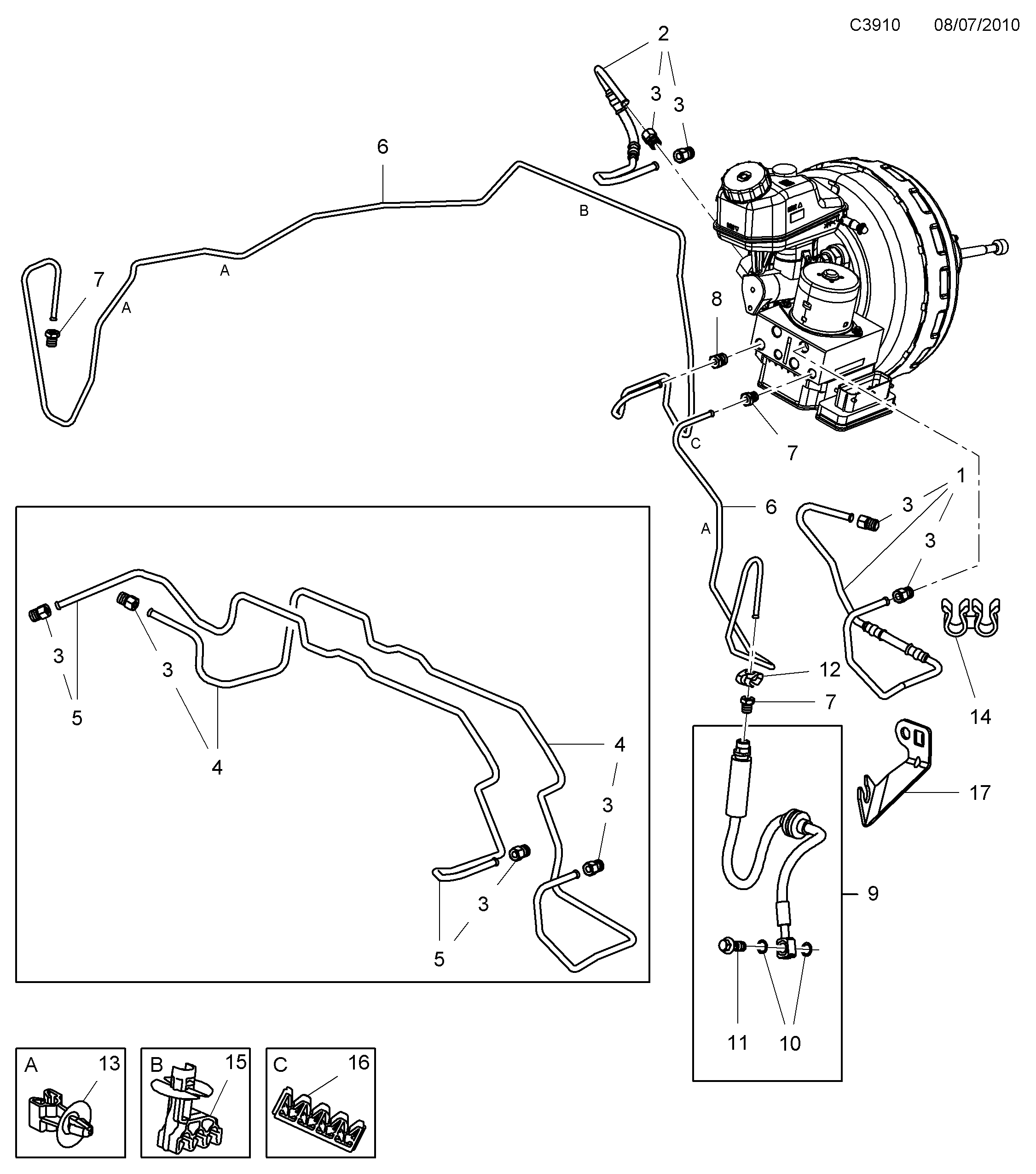

Saab 9-5 (650) Brake lines Front diagram

Pos	Article	Part No.
1	Brake line	13227575
3	Nut	11518522
2	Brake line	20981029
4	Brake line	13227581
4	Brake line	13292002
4	Brake line	13292003
5	Brake line	13227582
5	Brake line	13292004
5	Brake line	13292005
5	Brake line	13308275
6	Brake line	93178453
7	Screw	11518524
8	Screw	11518525
9	Brake hose	13327441
9	Brake hose	20912237
9	Brake hose	20912241
9	Brake hose	20912240
9	Brake hose	20912239
10	Gasket	13289726
11	Screw	11569590
11	Screw	11518683
12	Clamping spring	90498320
13	Clamp	13235986
14	Clip	13333161
15	Pipe clip	24466933
16	Clip	24433064
17	Bracket	13246028
17	Bracket	13246029
