Saab 9-5 (650) 2010-2011 Master cylinder and

Group 5 Brakes, section 4050

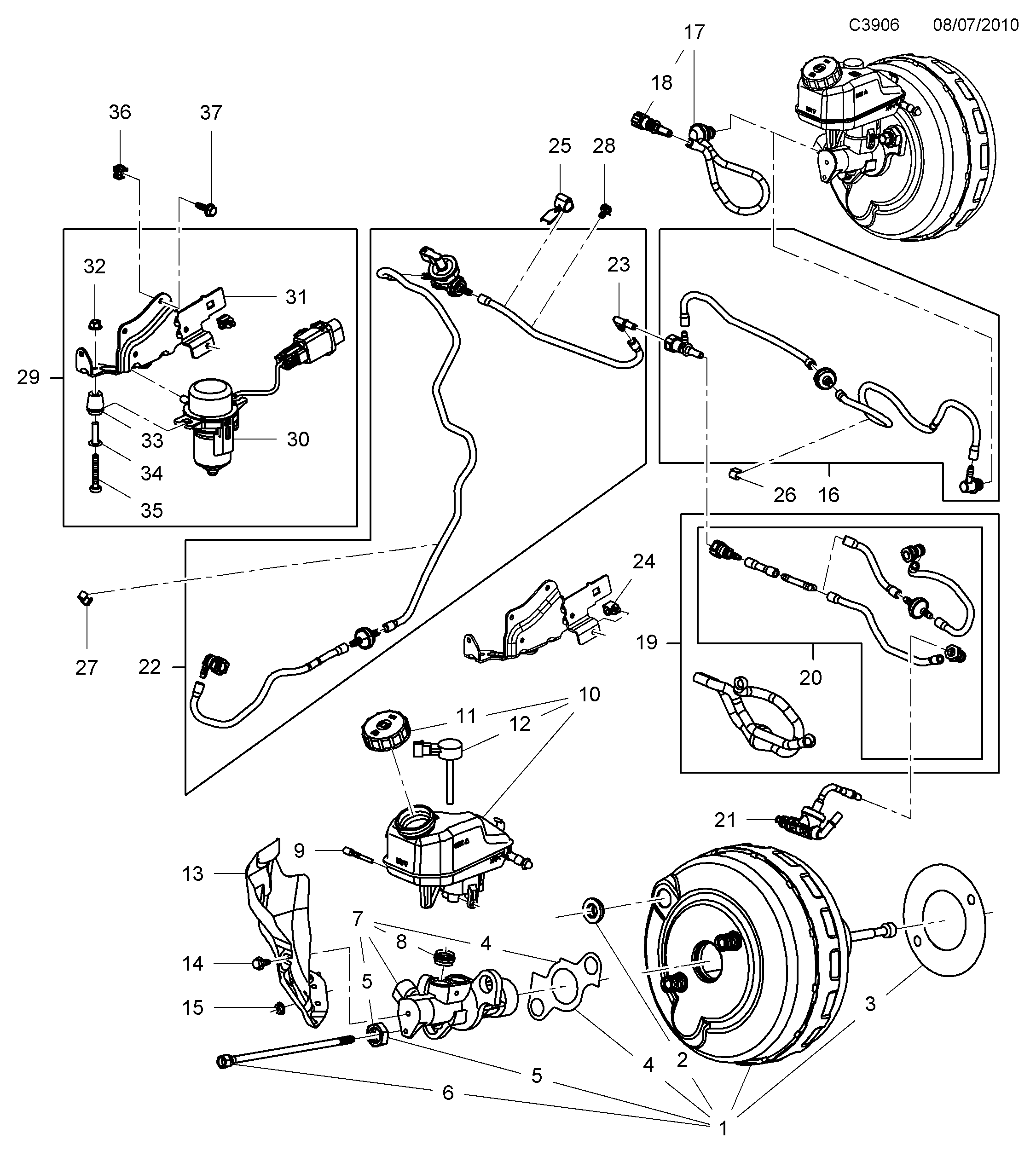

Saab 9-5 (650) Master cylinder and diagram

Pos	Article	Part No.
1	Brake servo	13286441
1	Brake servo	13286440
2	Grommet	90512838
3	Seal	13286442
4	Sealing ring	90272667
5	Nut	13286443
6	Screw	13265563
7	Master cylinder kit	13286445
7	Master cylinder kit	13286446
8	Grommet	13286448
9	Screw	13286449
10	Reservoir	13286452 (replaces 13286450)
11	Cover	13286453
12	Switch	13286456
13	Shield	13228190
14	Hexagon screw	11588711
15	Nut	11900428
16	Vacuum pipe	12825089
17	Vacuum pipe	13227545
18	Connector	12762429
19	Vacuum pipe	12825088
20	Vacuum line	13231607
21	Vacuum pipe	55556698
22	Pipe	12825056
23	Connector	12762428
24	Clip	24422008
25	Clamp	13275066
26	Clip	12760601
27	Clip	24446572
28	Hose clamp	90530642
29	Pump kit	20914522
29	Pump kit	20914524
30	Vacuum pump	20914523
31	Bracket	13227952
31	Bracket	13311626
32	Nut	11900439
33	Rubber bushing	12761845
34	Rubber bushing	12759954
35	Screw	92151827
36	Nut	11570215
37	Screw	11519376
