Saab 9-5 (650) 2010-2011 Master cylinder and

Group 5 Brakes, section 4000

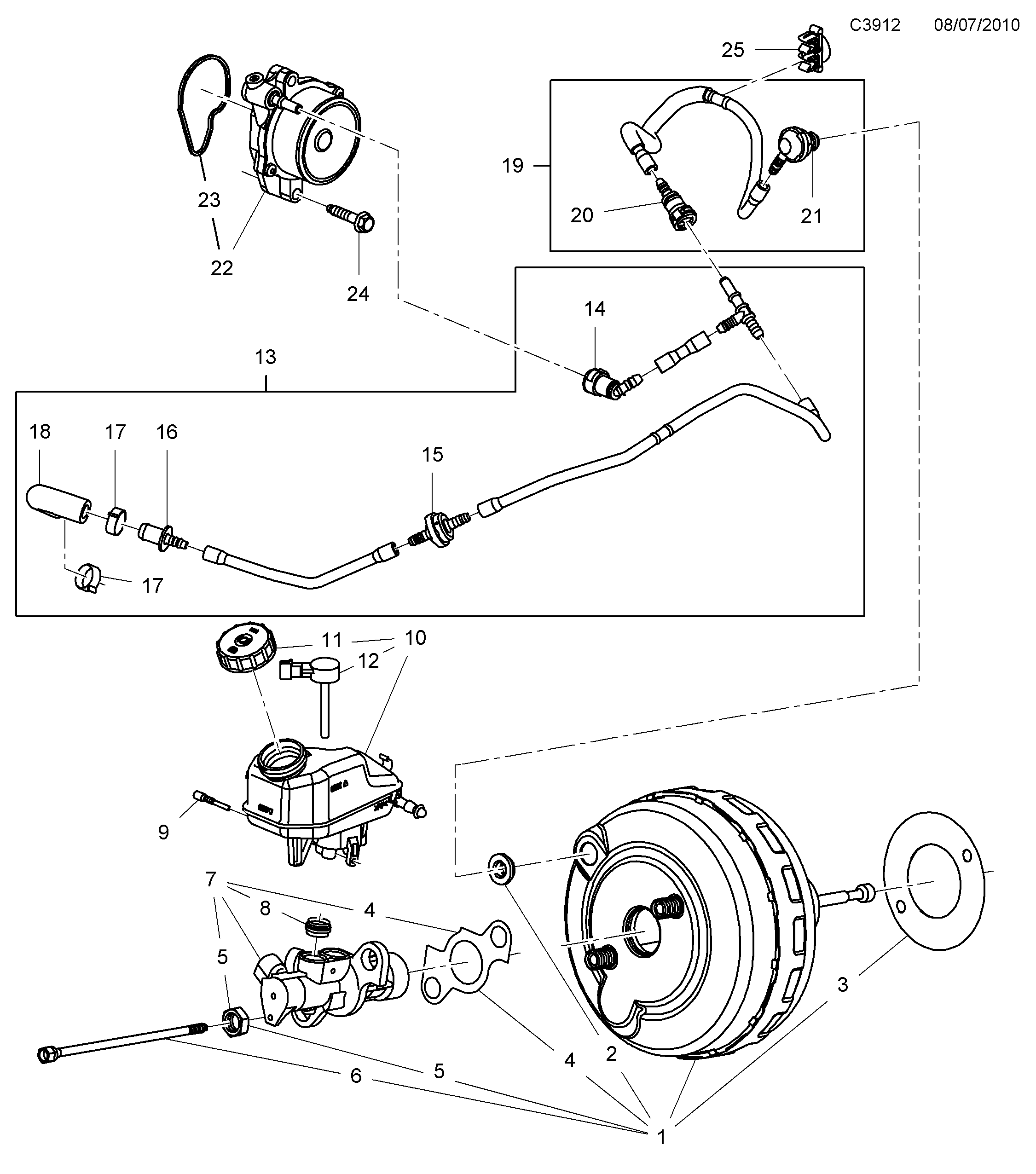

Saab 9-5 (650) Master cylinder and diagram

Pos	Article	Part No.
1	Brake servo	13286441
1	Brake servo	13286440
2	Grommet	90512838
3	Seal	13286442
4	Sealing ring	90272667
5	Nut	13286443
6	Screw	13265563
7	Master cylinder kit	13286445
7	Master cylinder kit	13286446
8	Grommet	13286448
9	Screw	13286449
10	Reservoir	13286452 (replaces 13286450)
11	Cover	13286453
12	Switch	13286456
13	Vacuum pipe	13237790
13	Vacuum pipe	22773982
14	Snap-on coupling	90498846
15	Check valve	90498464
16	Support	12761753
17	Hose clamp	12761752
17	Hose clamp	25509495
18	Hose	20990921
19	Vacuum pipe	13227542
19	Vacuum line	13227543
20	Snap-on coupling	90498845
21	Check valve	13292000
22	Vacuum pump	12632504
23	Gasket	55561100
24	Hexagon screw	11588729
25	Clamp	90539595
