Saab 9-5 (650) 2011-2011 Master cylinder and

Group 5 Brakes, section 3900

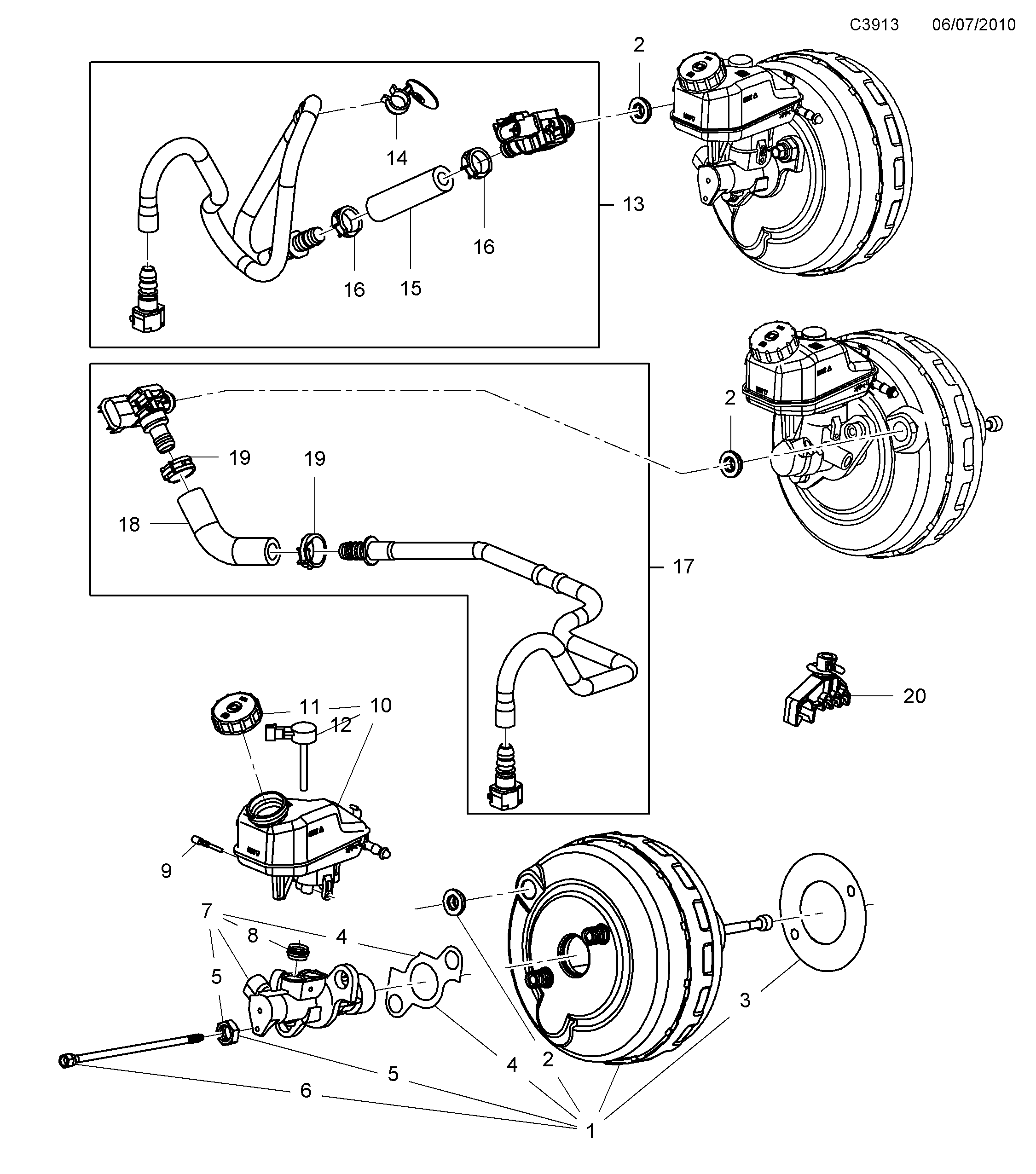

Saab 9-5 (650) Master cylinder and diagram

Pos	Article	Part No.
1	Brake servo	13286441
1	Brake servo	13286440
2	Grommet	90512838
3	Seal	13286442
4	Sealing ring	90272667
5	Nut	13286443
6	Screw	13265563
7	Master cylinder kit	13286445
7	Master cylinder kit	13286446
8	Grommet	13286448
9	Screw	13286449
10	Reservoir	13286452 (replaces 13286450)
11	Cover	13286453
12	Switch	13286456
13	Vacuum pipe	13329123
14	Bracket	55561601
15	Hose	13329129
16	Hose clamp	25509495
17	Vacuum pipe	13329125
18	Hose	13329126
20	Clip	13285788
