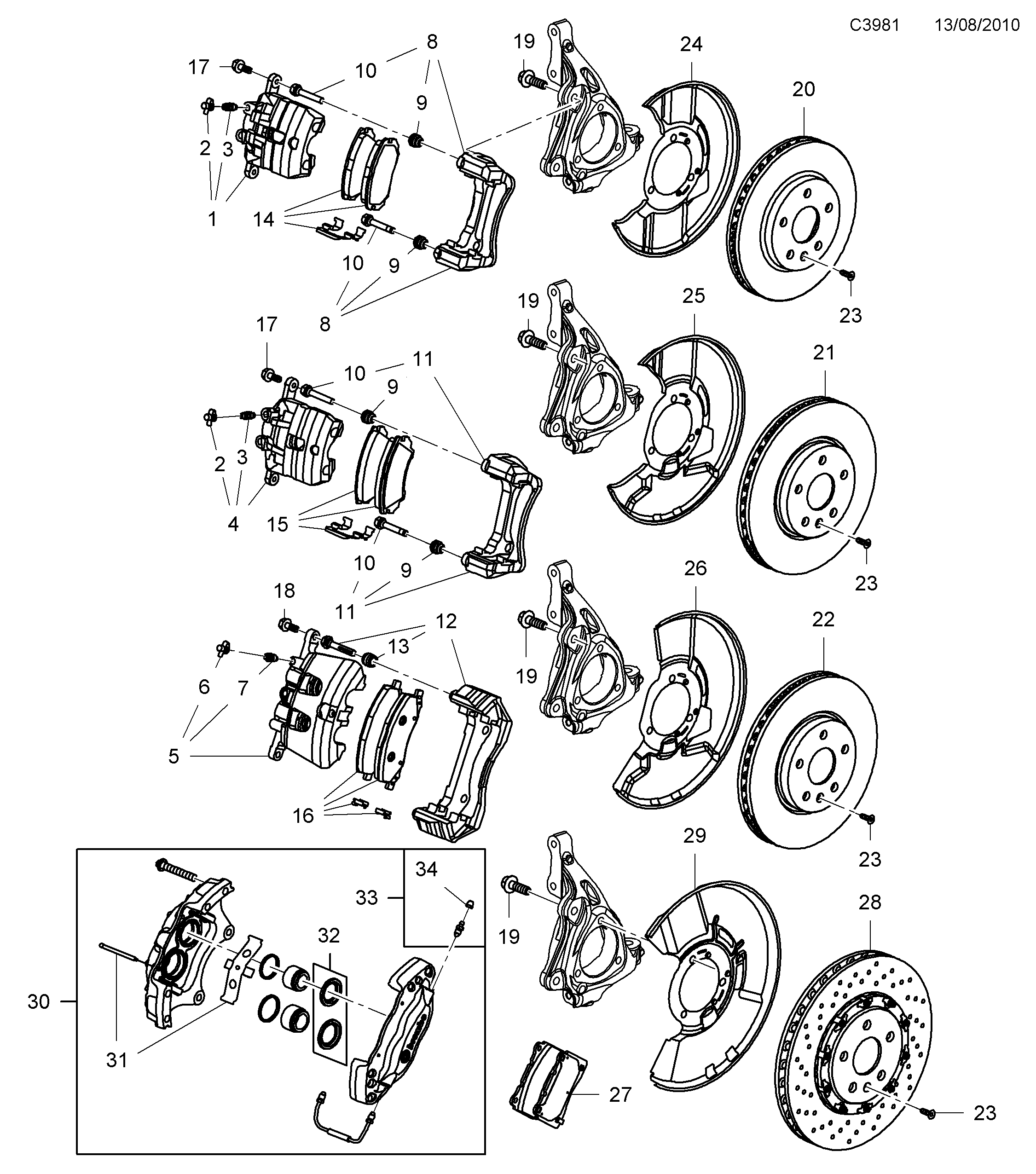

Group 5 Brakes, section 1000
| Pos | Article | Part No. |
|---|---|---|
| 1 | Brake housing | 13279638 |
| 1 | Brake housing | 13279639 |
| 2 | Dust cap | 88935785 |
| 3 | Bleeder valve | 88935776 |
| 4 | Brake housing | 13578804 |
| 4 | Brake housing | 13578803 |
| 5 | Brake housing | 13276172 |
| 5 | Brake housing | 13276173 |
| 6 | Dust cap | 9200134 |
| 7 | Bleeder valve | 93179161 |
| 8 | Brake Carrier | 13364139 |
| 8 | Brake Carrier | 13364140 |
| 9 | Seal | 15851364 |
| 10 | Guide pin | 13504030 |
| 11 | Brake Carrier | 13364143 |
| 11 | Brake Carrier | 13364144 |
| 11 | Brake Carrier | 13364141 |
| 11 | Brake Carrier | 13364142 |
| 12 | Brake Carrier | 13276187 |
| 13 | Seal | 13276182 |
| 14 | Brake pad kit | 13237750 |
| 15 | Brake pad kit | 13237751 |
| 15 | Brake pad kit | 13237753 |
| 16 | Brake pad kit | 13237752 |
| 17 | Screw | 89027183 |
| 18 | Screw | 13276180 |
| 19 | Screw | 11562022 |
| 19 | Screw | 13331028 |
| 20 | Brake disc | 13579147 |
| 21 | Brake disc | 13579148 |
| 22 | Brake disc | 13579153 |
| 23 | Screw | 11570339 |
| 24 | Protecting plate | 13219205 |
| 24 | Protecting plate | 13219206 |
| 25 | Protecting plate | 13230782 |
| 25 | Protecting plate | 13230783 |
| 26 | Protecting plate | 13235021 |
| 26 | Protecting plate | 13235022 |
| 27 | Brake pad kit | 13329562 |
| 28 | Brake disc | 13273625 |
| 29 | Protecting plate | 13273626 |
| 29 | Protecting plate | 13273627 |
| 30 | Brake caliper | 13273621 |
| 30 | Brake caliper | 13273623 |
| 31 | Fastener kit | 13329560 |
| 32 | Bellows kit | 89047722 |
| 33 | Bleeder valve | 89047719 |
| 34 | Dust cap | 89047720 |
