Saab 9-5 (650) 2010-2011 Transfer box assy Front

Group 4 Drive line, section 9100

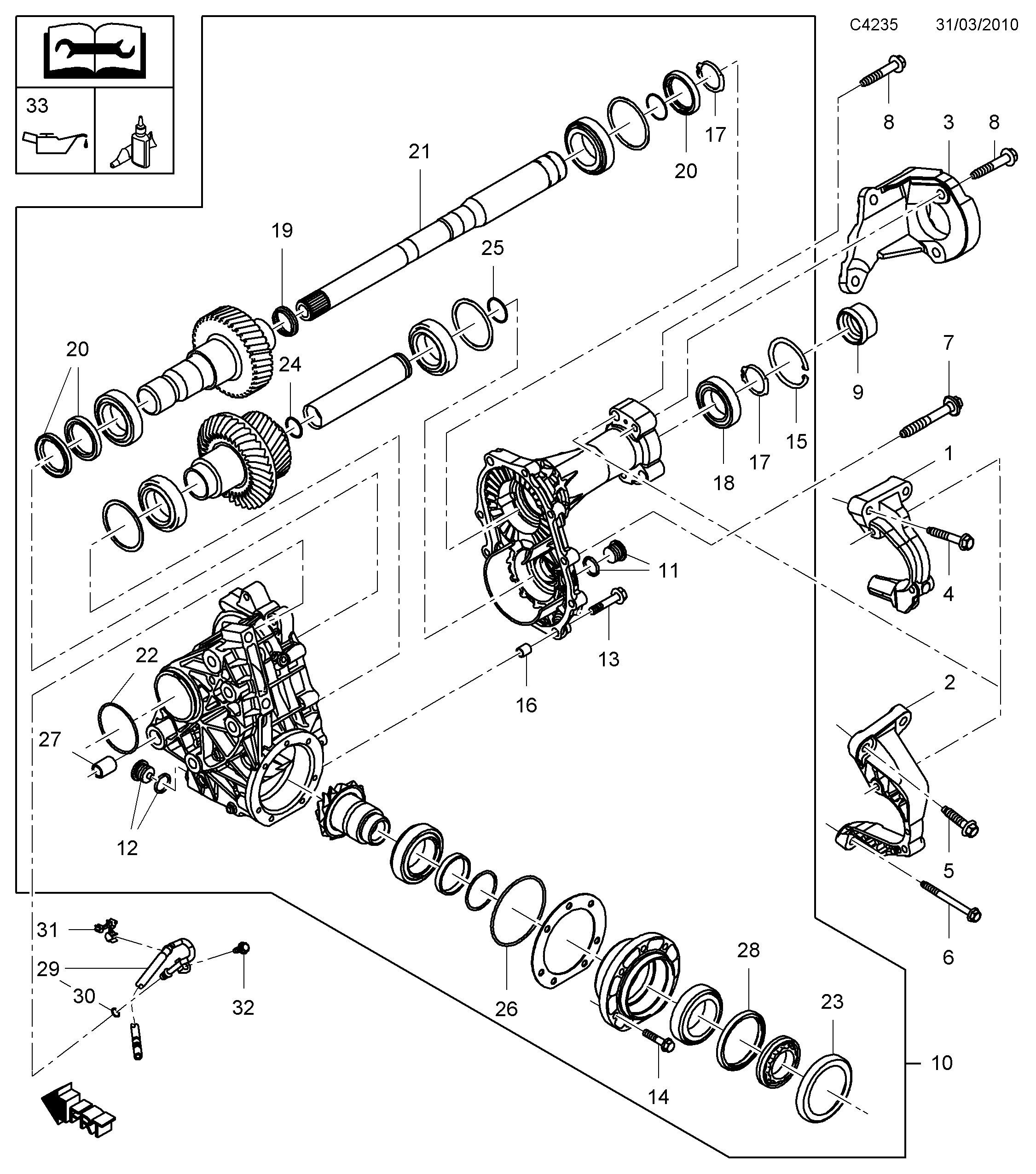

Saab 9-5 (650) Transfer box assy Front diagram

Pos	Article	Part No.
1	Bracket	55560071
2	Bracket	55560069
3	Bracket	55560072
4	Hexagon screw	11588741
5	Hexagon screw	11588728
6	Screw	11588734
7	Torx screw	11900047
8	Hexagon screw	11588744
9	Sealing ring	12789088
10	Transfer Case	55573146
11	Filling-in plug	55566097
12	Drain plug	55566098
13	Hexagon screw	55566178
15	Snap ring	55566343
16	Centering sleeve	55566198
17	Snap ring	55566344
18	Ball bearing	55566345
19	Scalloped seal ring	55566346
20	Scalloped seal ring	55566347
21	Input shaft	55566348
22	O-ring	55566355
23	Guard plate	55566356
24	O-ring	55566427
25	O-ring	55566426
26	O-ring	55566428
27	Centering sleeve	55566832
28	Scalloped seal ring	55578408
29	Hose	55573144
30	O-ring	55573148
31	Clip	55573269
32	Hexagon screw	11588722
33	Sealing compound	93165267
33	Flange sealant	90542117
