Saab 9-5 (650) 2010-2011 Outer universal joint Front

Group 4 Drive line, section 5090

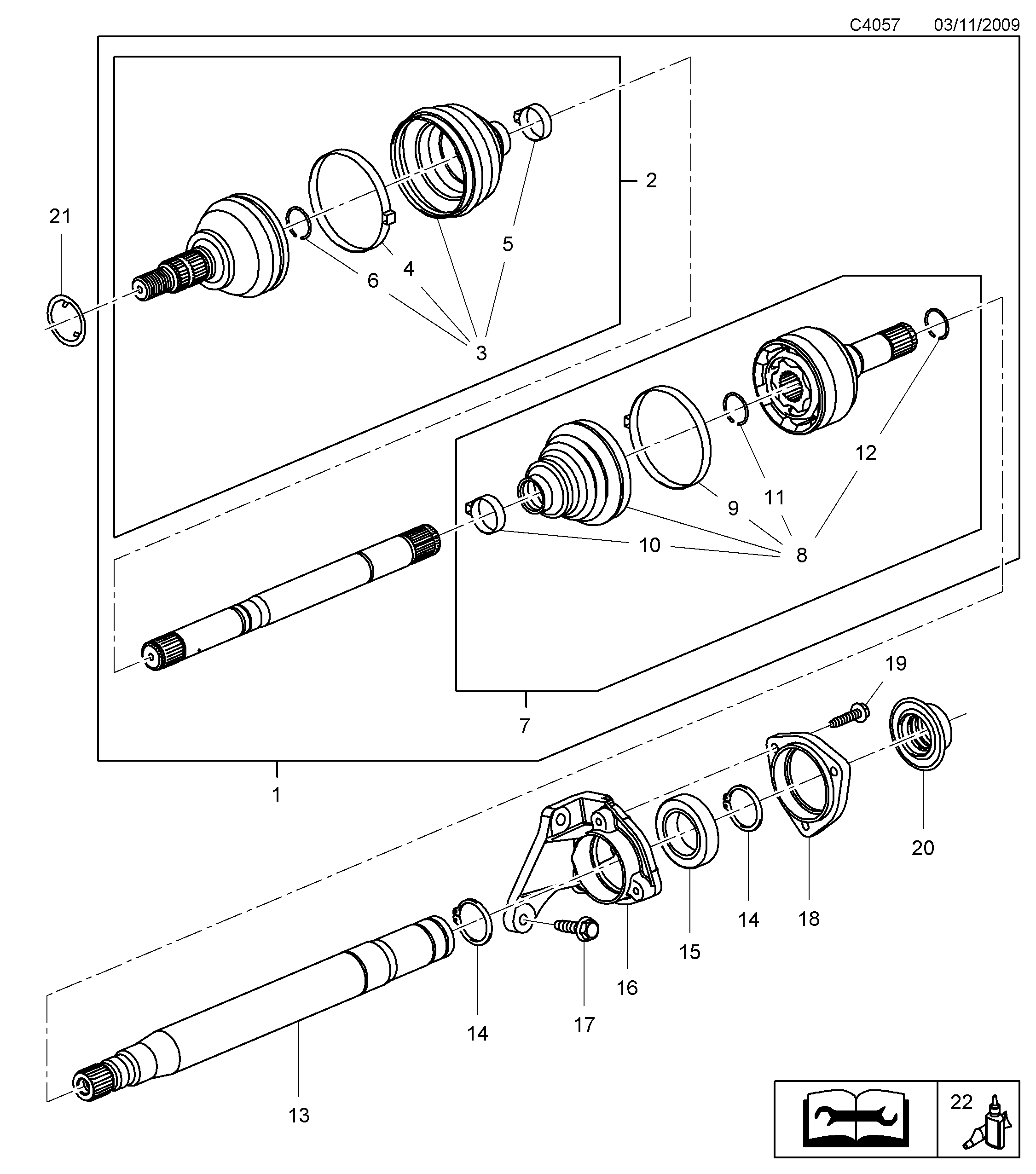

Saab 9-5 (650) Outer universal joint Front diagram

Pos	Article	Part No.
1	Drive shaft	13292198
2	Joint, outer	13296188
3	Bellows kit	13291739
4	Clamp	13291763
5	Clamping ring	13291761
6	Lock ring	93190861
7	Joint, inner	13296197
8	Bellows kit	13291746
9	Clamping ring	13291771
10	Clamping ring	13291767
11	Snap ring	13296472
12	Lock ring	90223082
13	Intermediate shaft	13233952
14	Ring	11102301
15	Ball bearing	24460144
16	Bracket	13219107
17	Hexagon screw	11588741
18	Flange	9186608
19	Hexagon screw	11588725
20	Sealing ring	9186677
21	Washer	20825083
21	Washer	11611232
22	Grease	13329238
22	Grease	13329237
22	Grease	13329239
