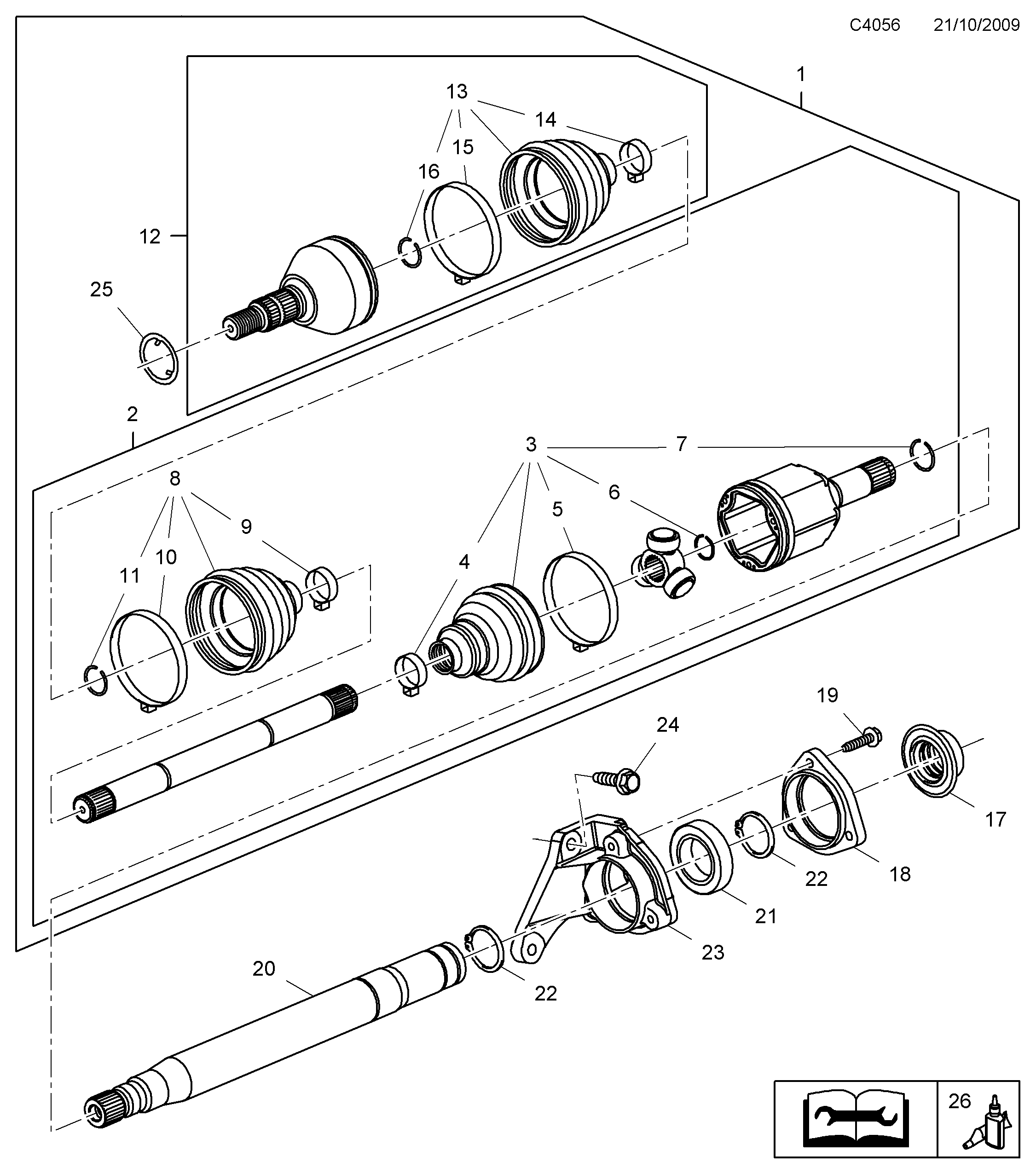

Group 4 Drive line, section 5080
| Pos | Article | Part No. |
|---|---|---|
| 1 | Drive shaft | 13228199 |
| 2 | Halfshaft with inner joint | 13296358 |
| 3 | Joint, inner | 13291741 |
| 4 | Clamp | 93182572 |
| 5 | Clamp | 93185428 |
| 6 | Snap ring | 13296469 |
| 7 | Lock ring | 90223082 |
| 8 | Bellows kit | 13291737 |
| 9 | Clamp | 93173416 |
| 10 | Clamp | 93173417 |
| 11 | Lock ring | 93173412 |
| 12 | Joint, outer | 13296187 |
| 17 | Sealing ring | 9186677 |
| 18 | Flange | 9186608 |
| 19 | Hexagon screw | 11588725 |
| 20 | Intermediate shaft | 13233952 |
| 21 | Ball bearing | 24460144 |
| 22 | Ring | 11102301 |
| 23 | Bracket | 13219107 |
| 24 | Hexagon screw | 11588741 |
| 25 | Washer | 20825083 |
| 25 | Washer | 11611232 |
| 26 | Grease | 13329238 |
| 26 | Grease | 13329237 |
| 26 | Grease | 13329239 |
