Saab 9-5 (650) 2010-2011 Outer universal joint Front

Group 4 Drive line, section 5070

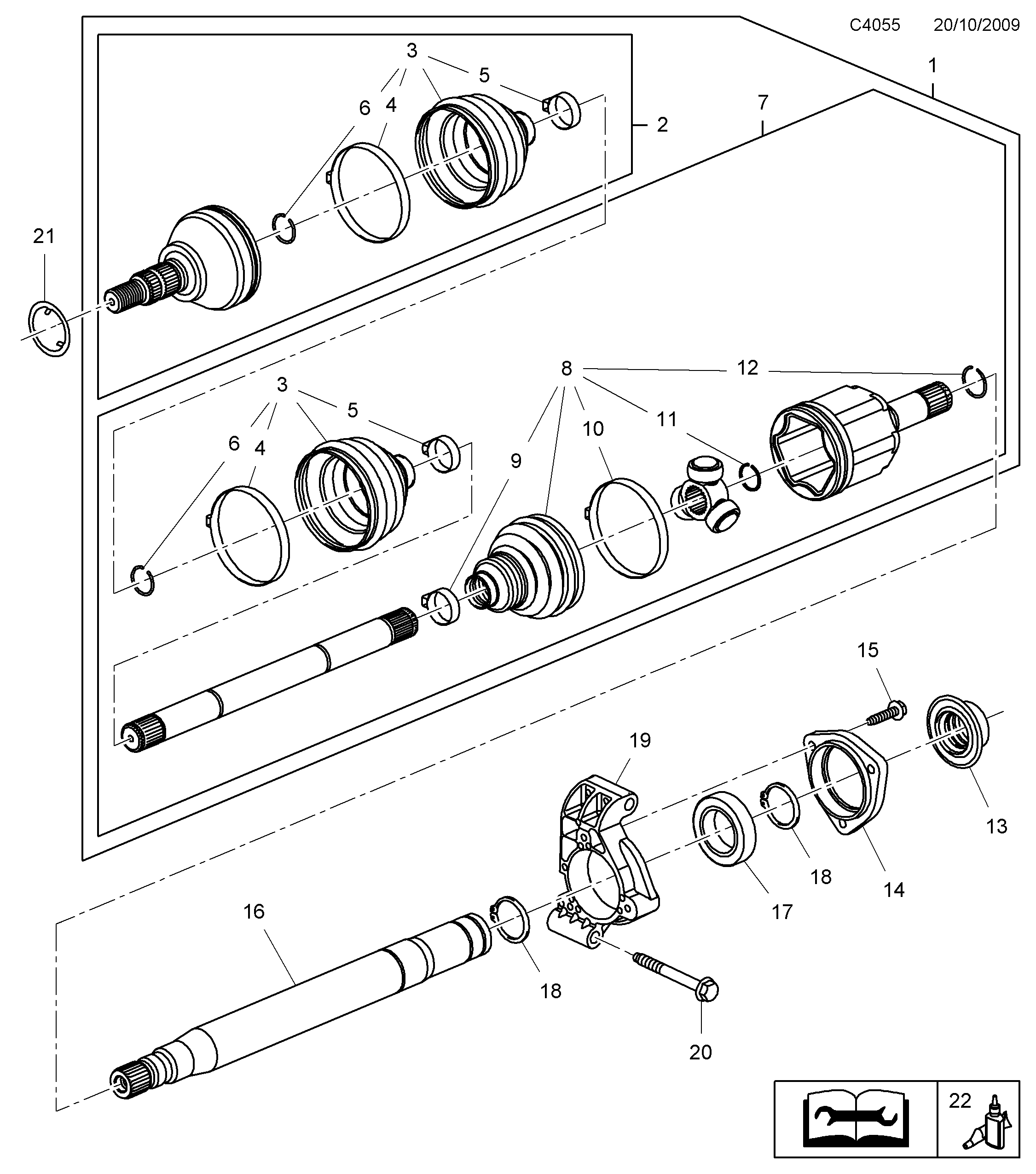

Saab 9-5 (650) Outer universal joint Front diagram

Pos	Article	Part No.
1	Drive shaft	13292198
2	Joint, outer	13296188
3	Bellows kit	13291739
4	Clamp	13291763
5	Clamping ring	13291761
6	Lock ring	93190861
7	Joint, inner	13335198
8	Bellows kit	13291742
9	Clamping ring	13291764
10	Clamp	93190865
11	Snap ring	13296470
12	Lock ring	90223082
13	Sealing ring	9186677
14	Flange	9186608
15	Screw	11097431
16	Intermediate shaft	13233952
17	Ball bearing	24460144
18	Ring	11102301
19	Bracket	13228251
20	Screw	11588732
21	Washer	20825083
21	Washer	11611232
22	Grease	13329237
22	Grease	13329238
22	Grease	13329239
