Saab 9-5 (650) 2010-2011 Outer universal joint Front

Group 4 Drive line, section 5050

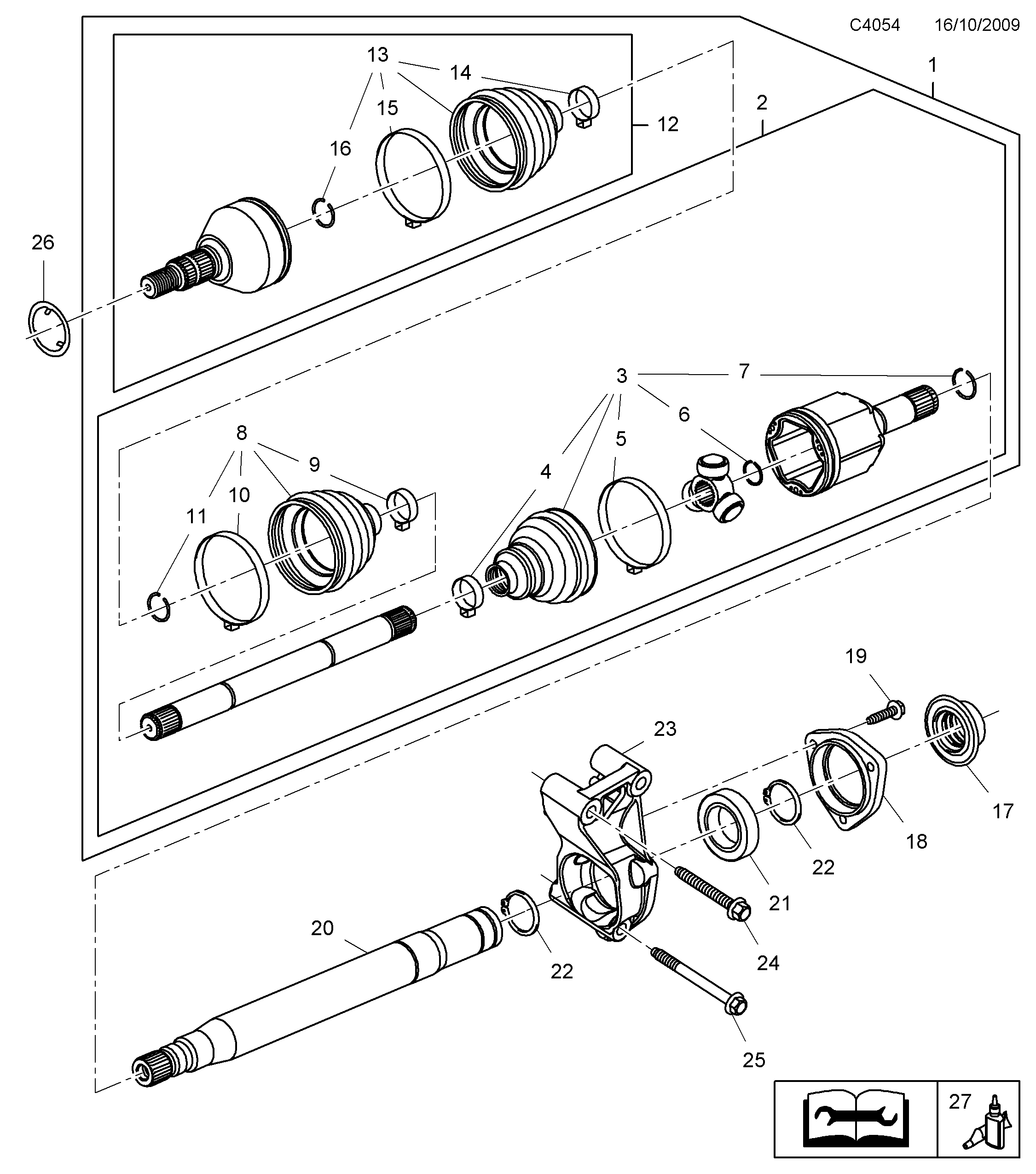

Saab 9-5 (650) Outer universal joint Front diagram

Pos	Article	Part No.
1	Drive shaft	13228199
2	Halfshaft with inner joint	13296358
3	Joint, inner	13291741
4	Clamp	93182572
5	Clamp	93185428
6	Snap ring	13296469
7	Lock ring	90223082
8	Bellows kit	13291737
9	Clamp	93173416
10	Clamp	93173417
11	Lock ring	93173412
12	Joint, outer	13296187
17	Sealing ring	9186677
18	Flange	9186608
19	Screw	11097431
20	Intermediate shaft	13233952
21	Ball bearing	24460144
22	Ring	11102301
23	Bracket	13228250
24	Hexagon screw	11518634
25	Screw	11588754
26	Washer	20825083
26	Washer	11611232
27	Grease	13329237
27	Grease	13329238
27	Grease	13329239
