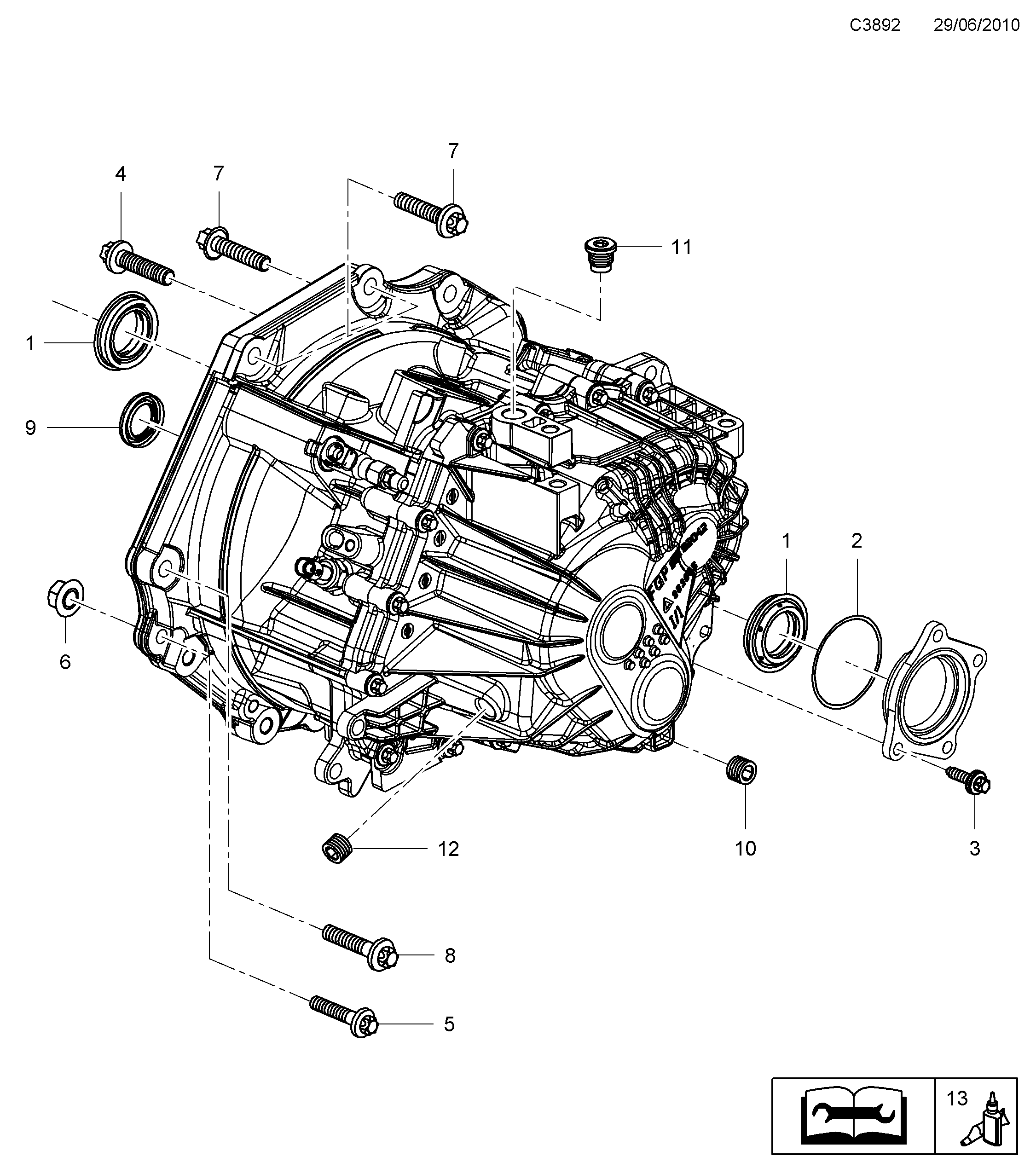

Group 4 Drive line, section 2055
| Pos | Article | Part No. |
|---|---|---|
| 1 | Seal | 12755013 |
| 2 | Sealing ring | 12855009 |
| 3 | Torx screw | 55557626 |
| 4 | Screw | 11097741 |
| 5 | Torx screw | 11097631 |
| 6 | Nut | 11514597 |
| 7 | Torx screw | 11094961 |
| 8 | Screw | 11099192 |
| 9 | Scalloped seal ring | 55565322 |
| 10 | Filling-in plug | 93190368 |
| 11 | Plug | 11099271 |
| 13 | Flange sealant | 90542117 |
