Saab 9-5 (650) 2010-2011 Engine injektion system

Group 3a Electrical, general, section 4200

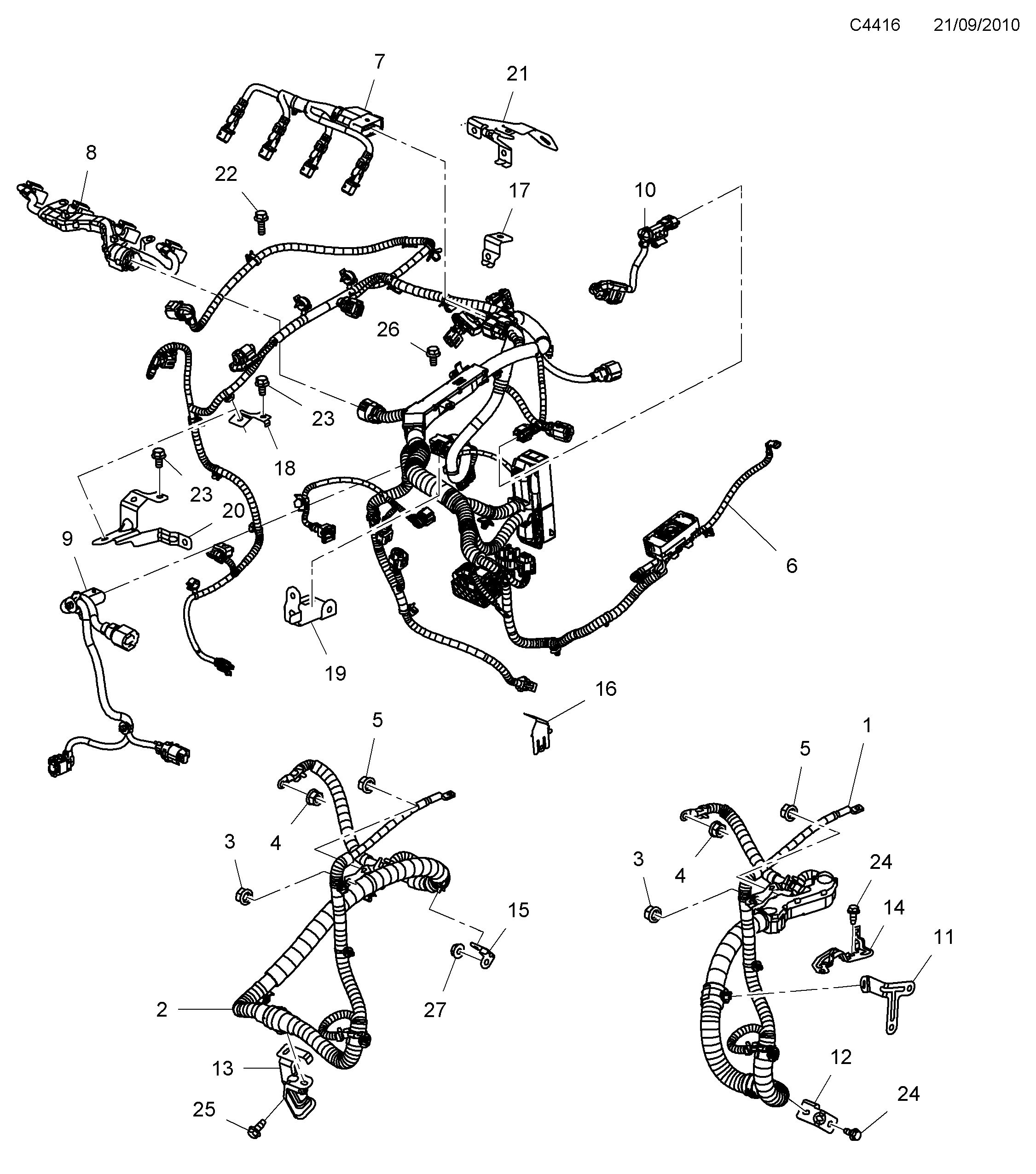

Saab 9-5 (650) Engine injektion system diagram

Pos	Article	Part No.
1	Cable harness	13295309
2	Cable harness	13295310
3	Hexagon nut	5125984
5	Hexagon nut	11104191
6	Cable harness	13296039
6	Cable harness	13296037
6	Cable harness	13297320
6	Cable harness	13296032
6	Cable harness	13296033
7	Cable	55567594
8	Cable harness	55568706
9	Cable harness	55571379
10	Cable	55567595
11	Bracket	55562061
12	Bracket	55562062
13	Retainer	55562741
14	Retainer	55562742
15	Retainer	55565065
16	Bracket	13321704
17	Bracket	55566093
18	Bracket	55567248
19	Bracket	55569520
20	Bracket	55569523
21	Bracket	55569522
22	Hexagon screw	12855321
23	Screw	93191736
24	Hexagon screw	11588722
26	Screw	93183675
27	Hexagon nut	11514596
